The way to fix 1 sector mounting bracket is as follows:
To fix the mounting Bracket_1 sector for wall type installation, do the following:
1 Make sure you have the following items:
Table 14. Parts and Tools for fixing Mounting Bracket_1 Sector Wall Type
Category Description
Parts Mounting Bracket_Front 1 EA
Fastener M10 Plain Washer
M10 Spring Washer
M10 × 70L Hex. Bolt
4 EA
4 EA
4 EA
Recommended Torque Value M10 Hex. Bolt 217 lbfin (250 kgfcm)
Working Tools
 Torque Wrench (100 to 400 lbf·in)
 Torque Wrench Spanner head (apply Hex. Head: 17 mm)
 Spanner (17 mm)

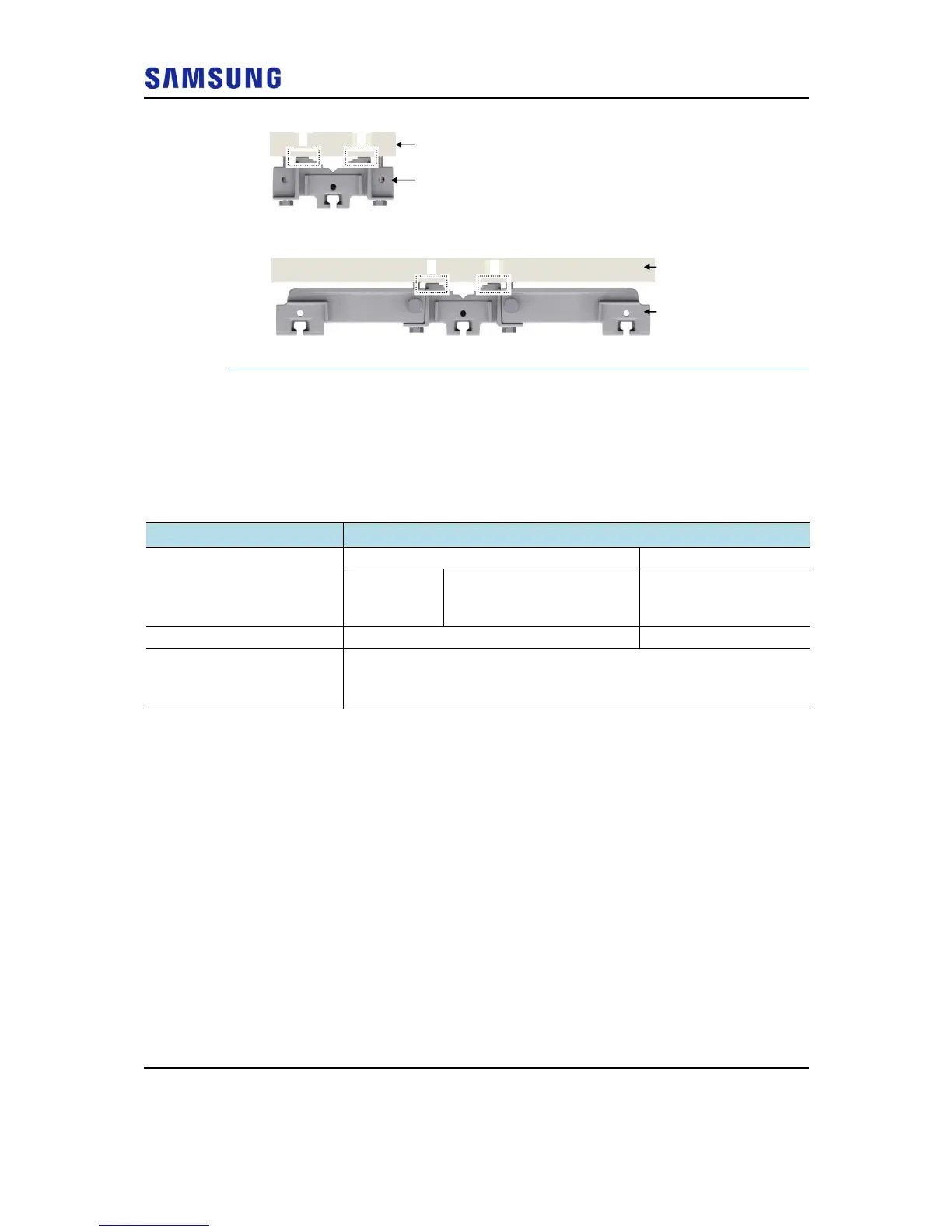

2 Place the mounting bracket_front along with the fixed strong anchors and fix it
using fasteners.
[Top View]
A
Wall
Mounting Bracket_Front
A
AA
Wall
2 Sector Mounting Bracket
A
ssembl
y
_
Front
[Top View]
