Samsung RFV01U-D2A - RRH Arrangement_1 Sector Pole Type Installation (Side Installation); RRH Arrangement_2 Sector Pole Type Installation (Side Installation)

Confidential
Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 13
Copyright © 2017, All Rights Reserved.

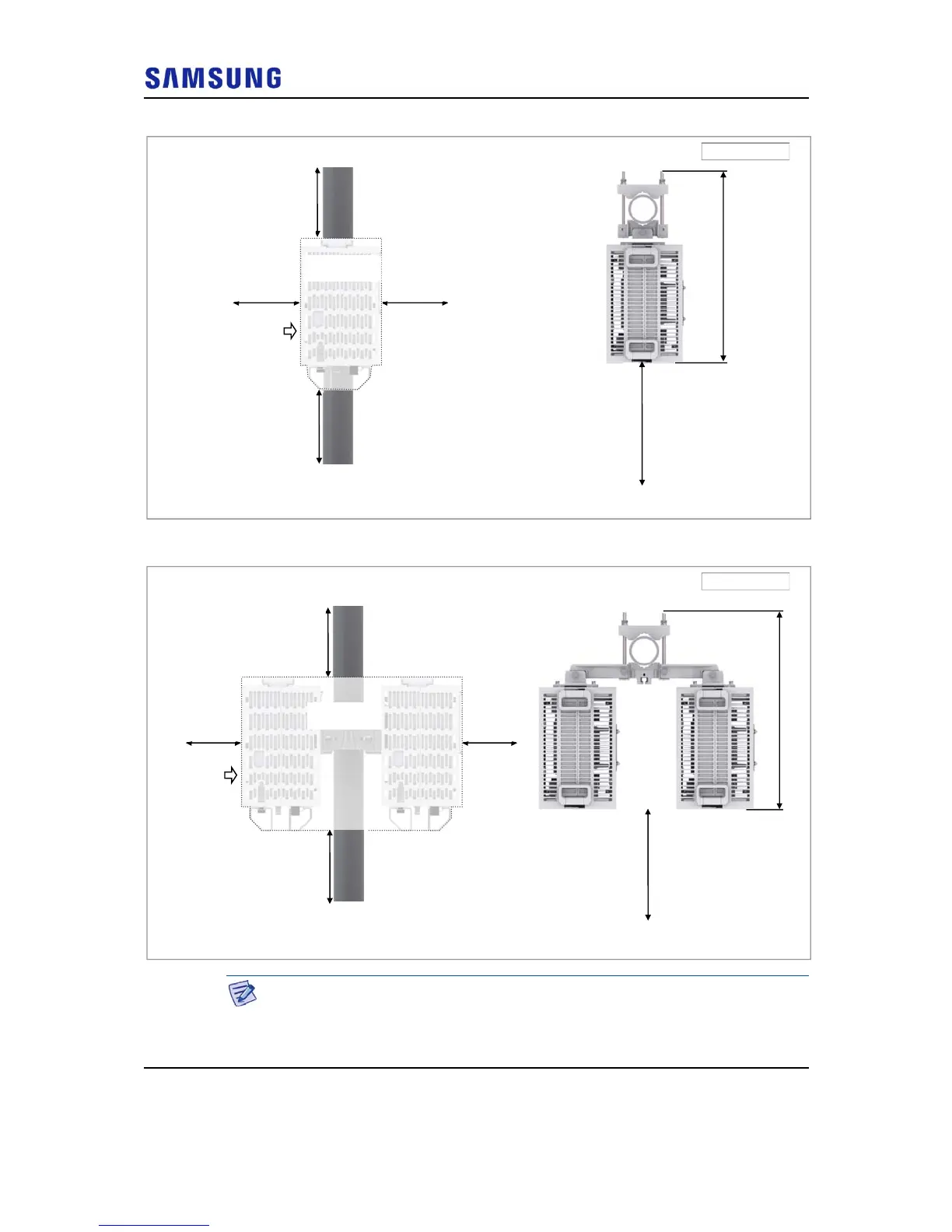

Figure 6. RRH Arrangement_1 Sector Pole Type Installation (Side Installation)
Figure 7. RRH Arrangement_2 Sector Pole Type Installation (Side Installation)
When fixing a pole mounting bracket, the length of a carriage bolt is 220 mm for
the pole diameter 50 to100 A.
Unit: in. (mm)
[Side View]
[Top View]
≥ 8 (200)≥ 8 (200)
25.81 (655)
D: 10.03 (255)
H: 19.73
(
501
)
≥12 (300)
≥ 16 (400)
≥
32 (
800)
[RRH Front]
Unit: in. (mm)
[RRH Front]
[Side View]
[Top View]
≥ 8 (200)
25.81 (655)
≥ 12 (300)
≥ 15.74 (400)
≥
32 (
800)
D: 27.91 (709)
H: 19.73
(
501
)
≥ 8 (200)
