Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 20
Copyright © 2017, All Rights Reserved.
Fixing RRH
This section describes the procedures to fix the system on a wall and a pole.

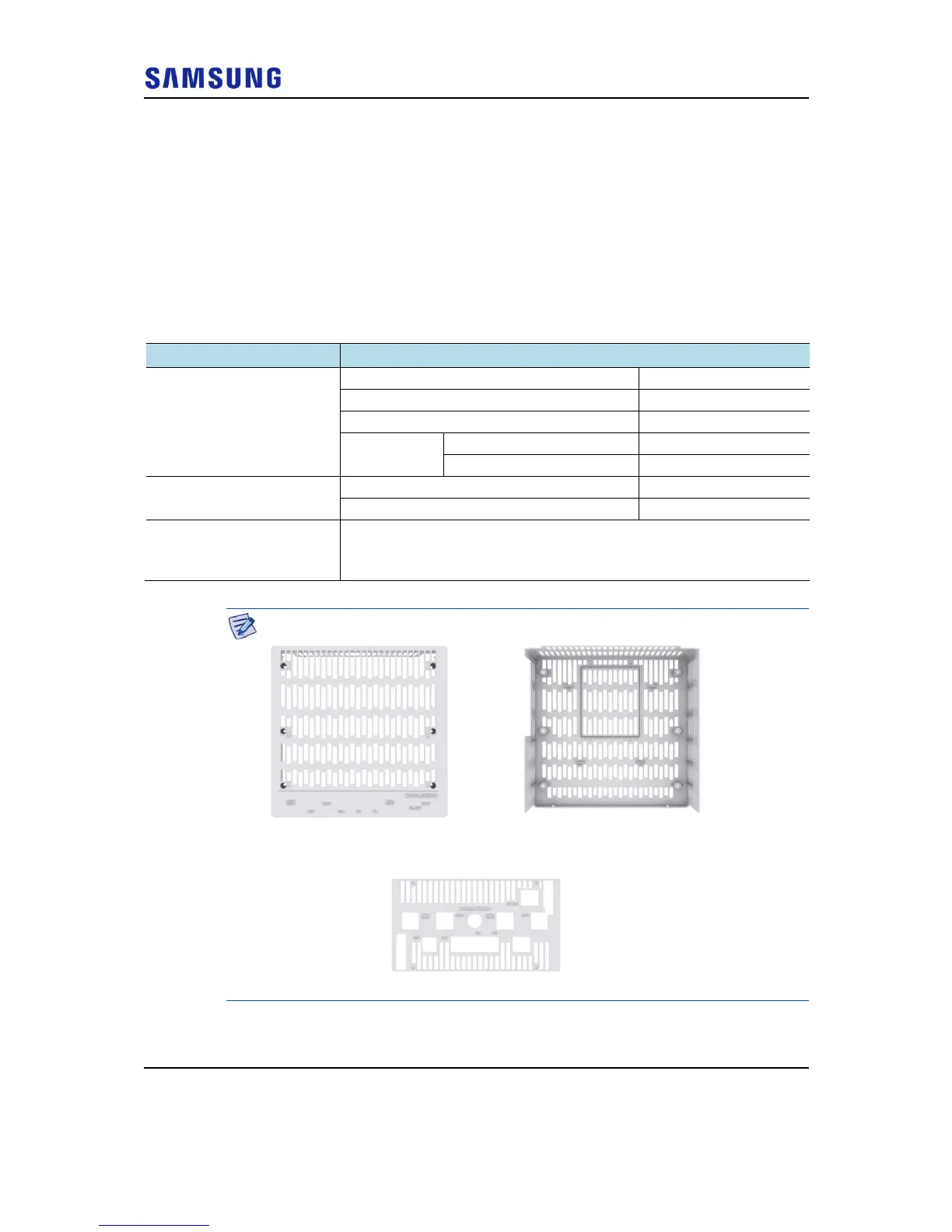

Fixing Finger Guard
To fix the finger guard, do the following:
1
Make sure you have the following items:
Table 3. Parts and Tools for fixing Finger Guard
Category Description
Parts Finger Guard_Front 1 EA/RRH
Finger Guard_Rear 1 EA/RRH
Finger Guard_Bottom 1 EA/RRH
Fastener M3 × 10L screw 4 EA/RRH
M5 × 10L SEMS 12 EA/RRH
Recommended Torque Value M3 screw 5.6 lbf·in (6.4 kgf·cm)
M5 SEMS 25 lbf·in (29 kgf·cm)
Working Tools
Torque driver (2 to 10 lb·fin and 20 to 90 lbf·in)
Screw driver bit ('+', No. 2)
Screw driver ('+', No. 2)
Check the type and fixing location of the finger guard before fixing it.
2
Place the finger guard_front to the RRH front.
[Finger Guard_Rear] [Finger Guard_Front]
[Finger Guard_Bottom]
