Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 51
Copyright © 2017, All Rights Reserved.
2
Hang the unit bracket hook of RRH-0 side on the groove of the mounting
bracket_front hook and fix it using fasteners.

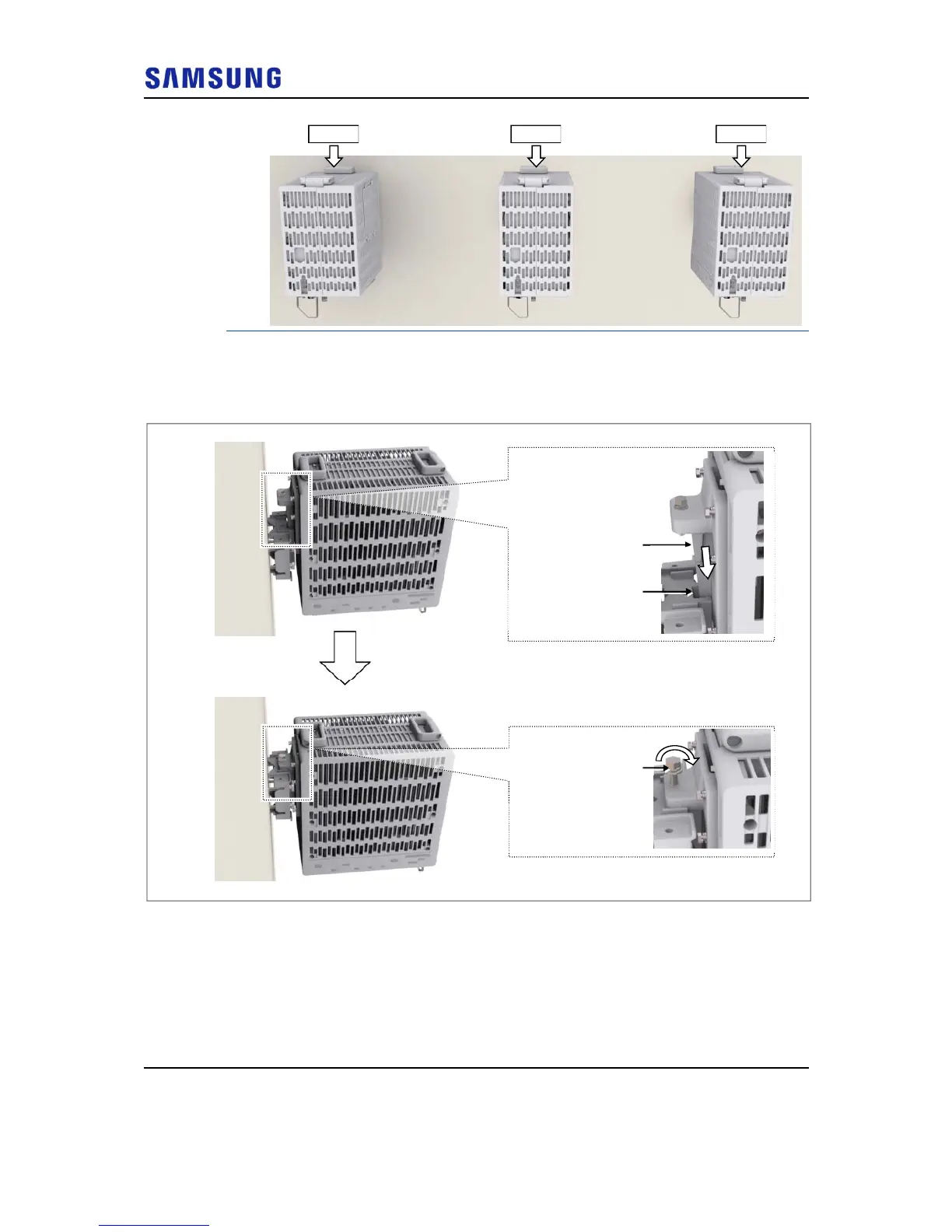

Figure 50. Fixing RRH_3 Sector Wall Type (Side Installation 1)
3
Fix RRH-1 and RRH-2 in the same way as the RRH-0.
RRH-1RRH-0 RRH-2
[RRH-0]
[RRH-0]
M10 Hex. Bolt
(washer assembly)
Unit Bracket Hook
Mounting Bracket_Front
Hook Groove
To Next Page
