Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 26
Copyright © 2017, All Rights Reserved.

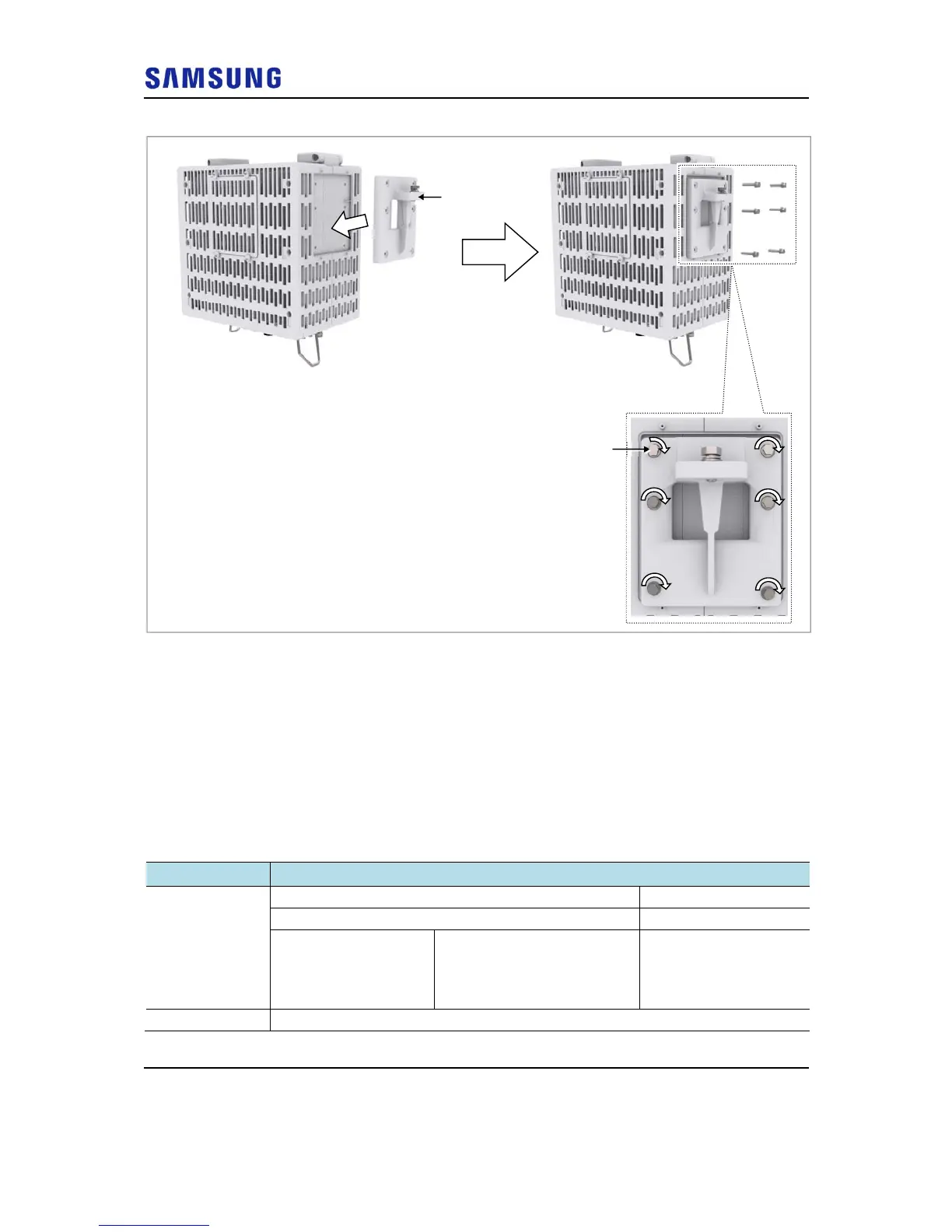

Figure 22. Fixing Unit Bracket_Side Installation
Fixing Pole Type
This section describes the procedures for fixing the system on the pole.
Assembling Mounting Bracket
To assemble the mounting bracket, do the following:
1
Make sure you have the following items:
Table 6. Parts and Tools for assembling Mounting Bracket
Category Description
Parts Mounting Bracket_Front 1 EA
Mounting Bracket_Rear 1 EA
Fasteners
M10 × 220L Carriage Bolt
M10 Plain Washer
M10 Spring Washer
M10 Hex. Nut
4 EA
4 EA
4 EA
4 EA
Working Tools Spanner (17 mm)
Unit Bracket
M6 Hex. Bolt
(washer assembly)
To Next Page
