Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 32
Copyright © 2017, All Rights Reserved.

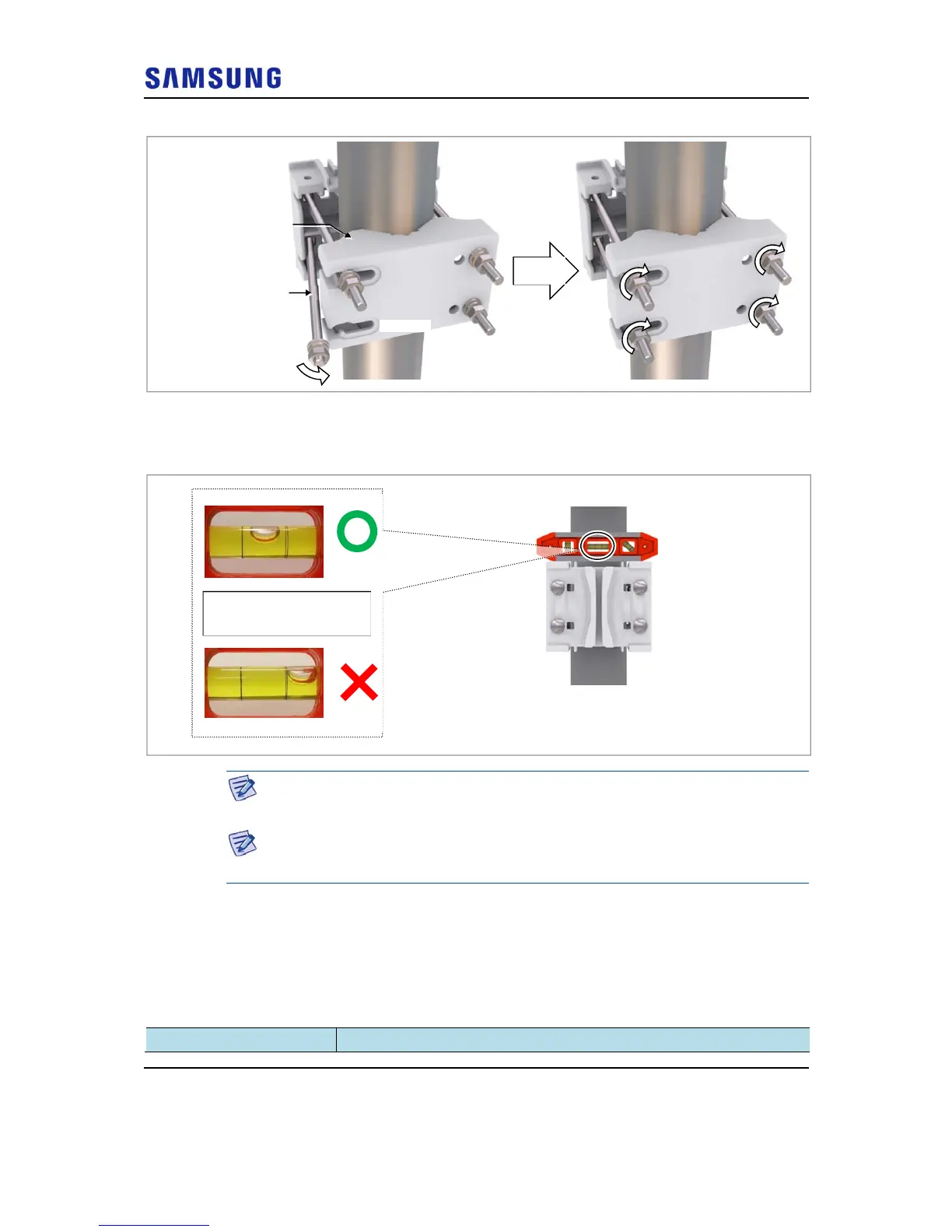

Figure 29. Fixing Mounting Bracket Assembly_1 Sector Pole Type (3)
5 Check the level of mounting bracket assembly on the pole and adjust the level.
Figure 30. Levelling Mounting Bracket Assembly_1 Sector Pole Type
When fixing the pole mounting bracket assembly on the pole, be sure to check the
level of bracket. After finishing the installation, you can adjust the level minutely.
In case of poor levelling, adjust the position of fasteners used to fix the Mounting
bracket assembly or its levelling status.
For 2 Sector
To fix the mounting bracket Assembly_2 sector pole type for side installation, do
the following:
1 Make sure you have the following items:
Table 8. Parts and Tools for fixing Mounting Bracket Assembly_2 Sector Pole Type (Side Installation)
Category Description
Side Hole
M10 Carriage Bolt
Mounting Bracket_Rea
r
If it is level, the bubble of the
spirit level is positioned at the
center of both lines.
[1 Sector Side and Standard Mounting Bracket Assembly]
