Samsung RFV01U-D2A - RRH Arrangement_3 Sector Wall Type Installation (Side Installation)

Confidential
Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 17
Copyright © 2017, All Rights Reserved.

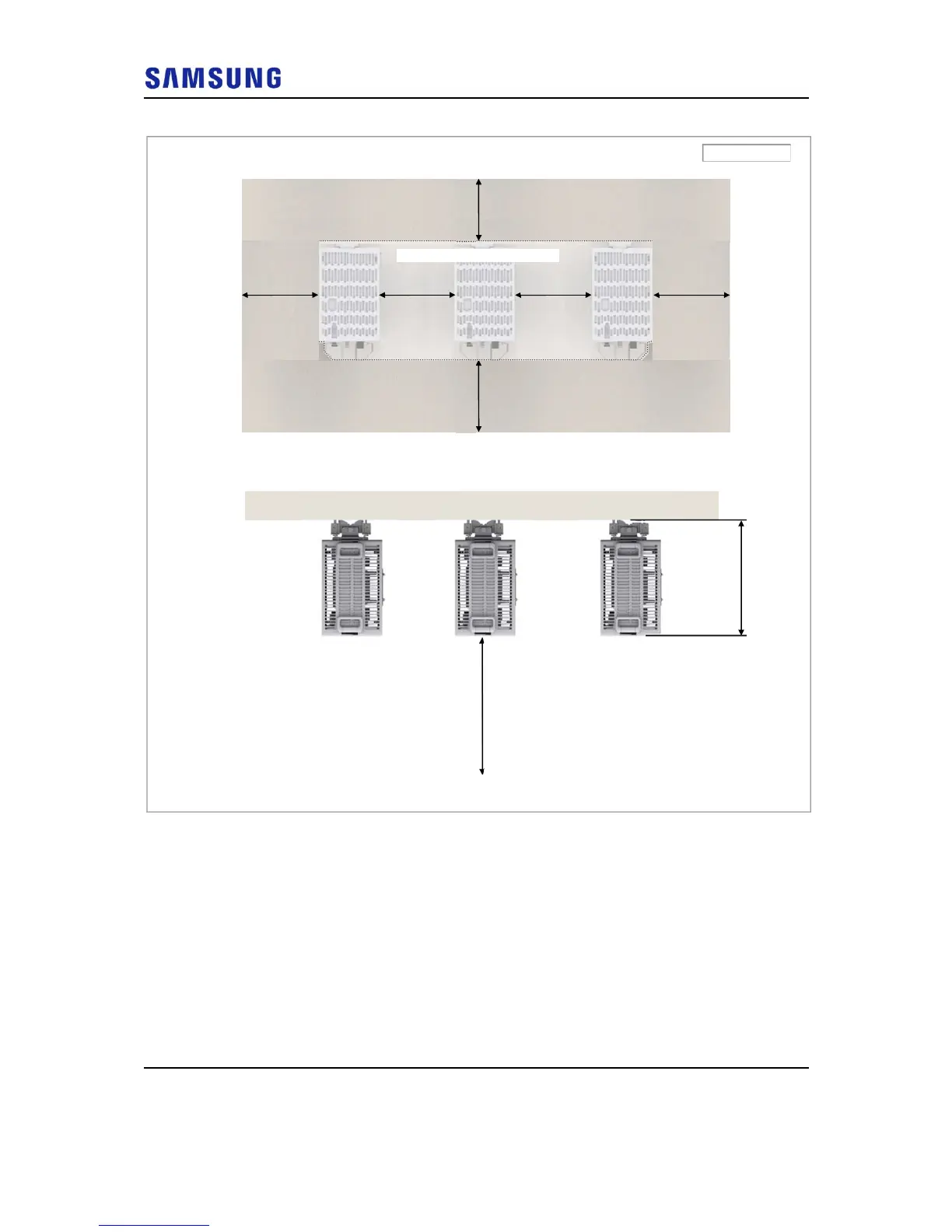

Figure 11. RRH Arrangement_3 Sector Wall Type Installation (Side Installation)
[RRH Front]
[Front View]
Unit: in. (mm)
[Top View]
≥ 32 (800)
19.25 (489)
≥ 16 (400)
W: 45.86 (1165)/H: 19.73 (501)
≥ 8 (200) ≥ 8 (200) ≥ 8 (200) ≥ 8 (200)
≥ 12 (300)
