Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 27
Copyright © 2017, All Rights Reserved.
When fixing the mounting bracket, the specification of pole should be from 50 A
(2.38 in./60.5 mm) to 100 A (4.5 in./114.3 mm) and the specification of carriage
bolt should be M10 × 220L.
When fixing pole, fix it using the outside hole of mounting bracket_front.
2
Insert carriage bolts to the outside hole of mounting bracket_front.

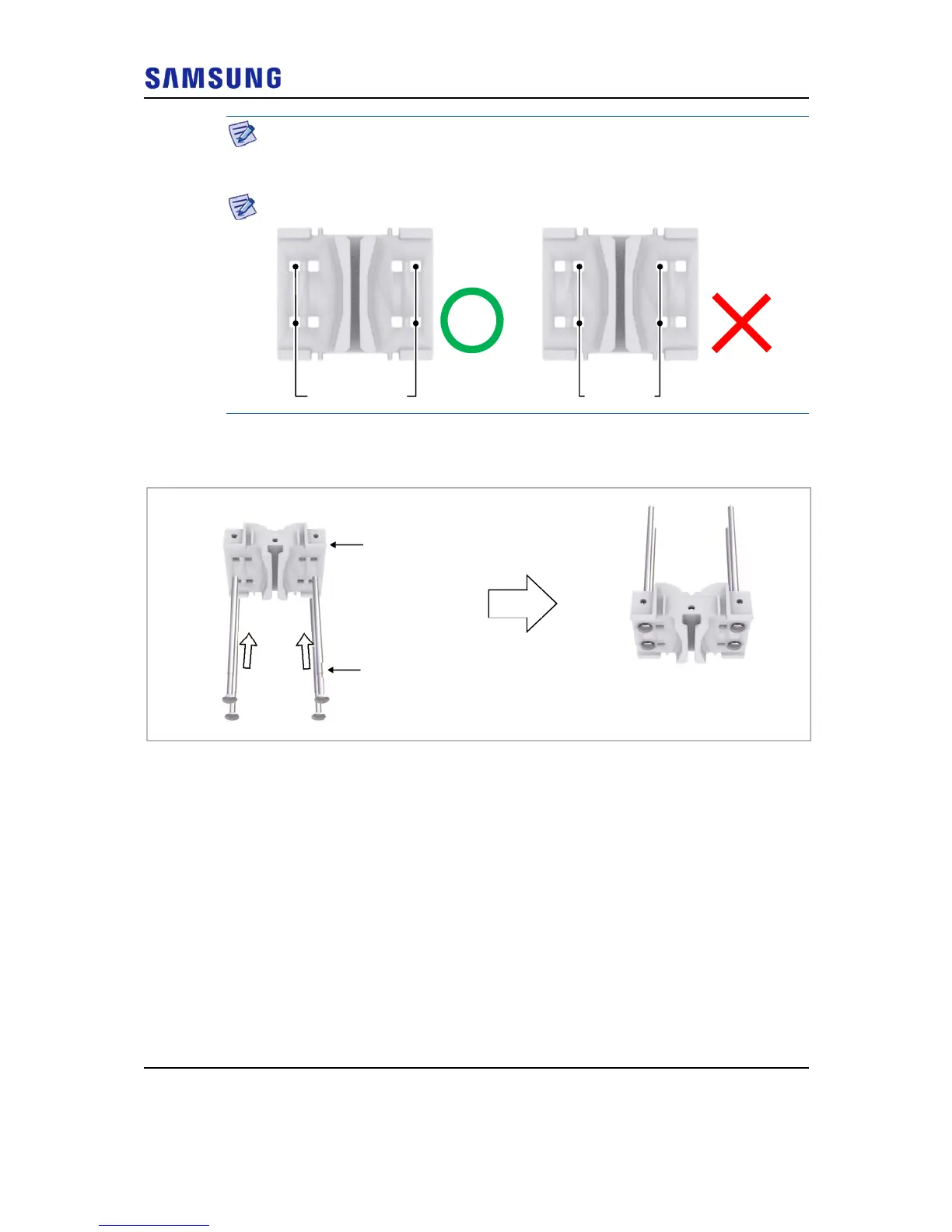

Figure 23. Assembling Mounting Bracket (1)
3
Pass the carriage bolt through the side-closed hole of the mounting
bracket_rear and then fix the fastening material.
4
Fasten the other carriage bolt to the mounting bracket_front only.
Inside holes
Outside holes
M10 Carria
