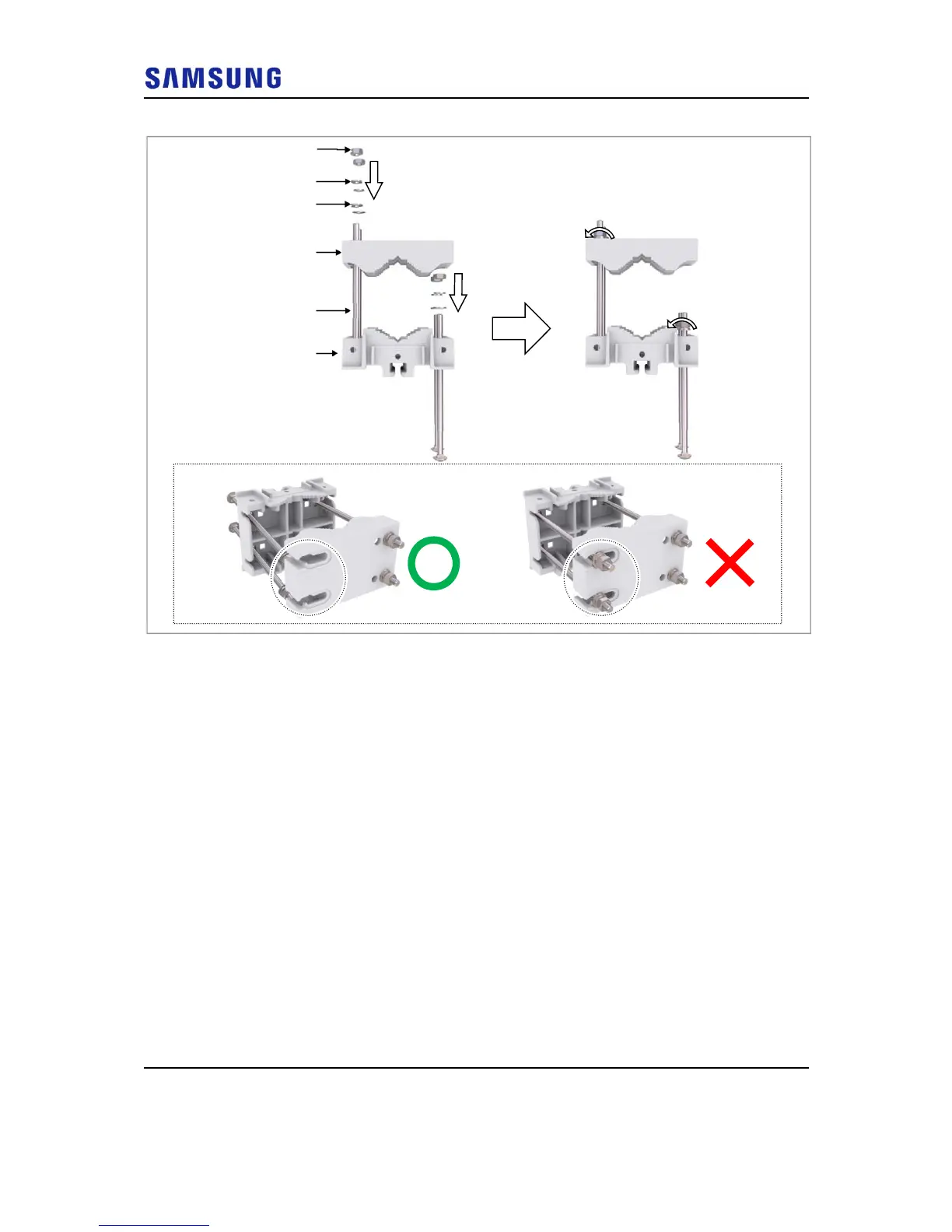

Figure 24. Assembling Mounting Bracket (2)
Lifting RRH and Mounting Bracket Assembly
To lift the RRH/mounting bracket assembly, do the following:
1 Tie the rope in two carrying points of the RRH and the Mounting bracket
assembly.
M10 Spring Washe
r
M10 Plain Washe
r
Mounting Bracket_Rea
r
M10 Carriage Bolt
M10 Hex. Nut
Mounting Bracket_Front
