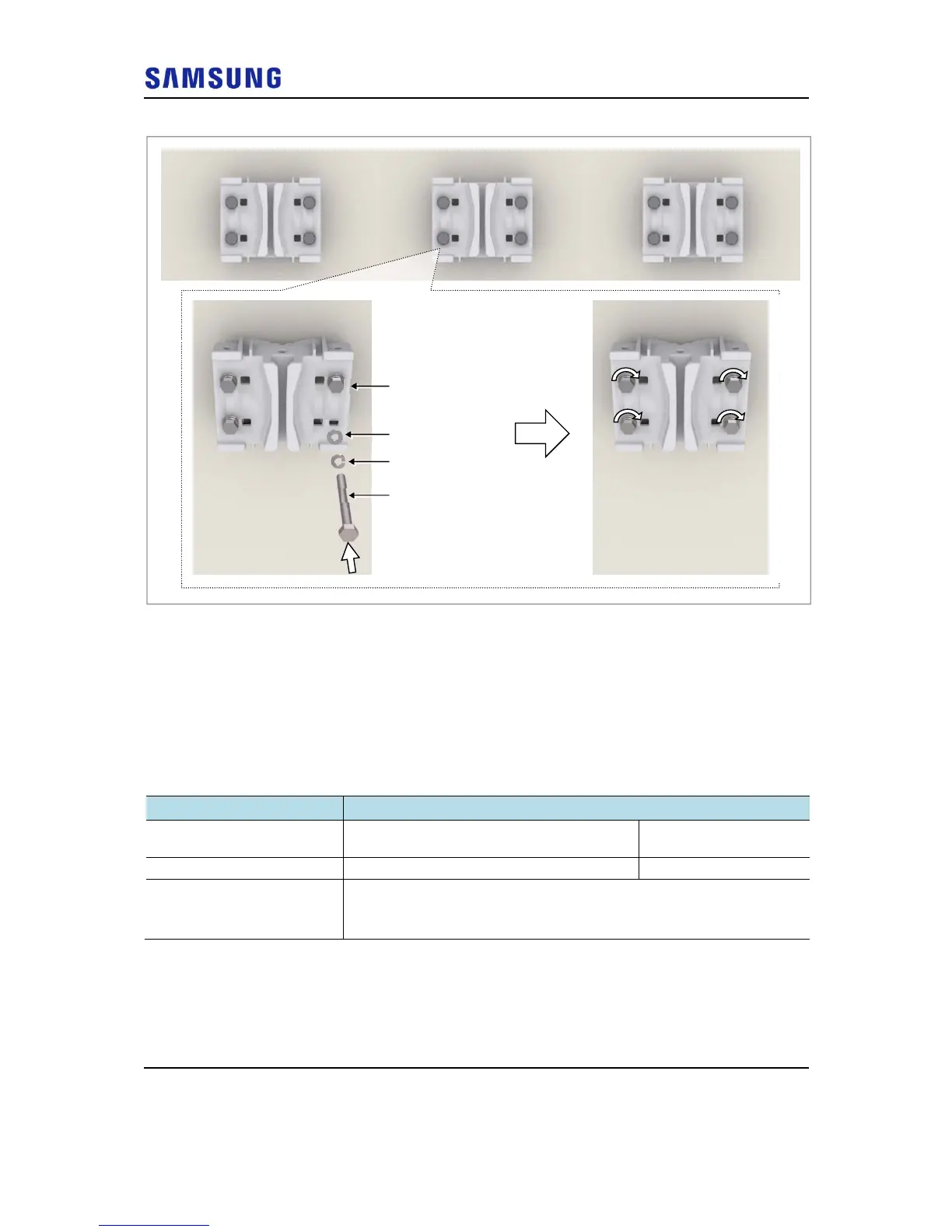

Figure 45. Fixing Mounting Bracket_3 Sector Wall Type
Fixing RRH
For 1 Sector
To fix the RRH_1 sector for wall type (standard and side) installation, do the
following:
1 Make sure you have the following items:
Table 16. Parts and Tools for fixing RRH_1 Sector Wall Type (Standard and Side Installation)
Category Description
Parts
M10 × 35L Hex. Bolt (washer assembly,
attached to the unit bracket)
1 EA
Recommended Torque Value M10 Hex. Bolt 217 lbfin (250 kgf·cm)
Working Tools
 Torque Wrench (100 to 400 lbf·in)
 Torque Wrench Spanner head (apply Hex. Head: 17 mm)
 Spanner (17 mm)
2 Hang the unit bracket hook of RRH side on the groove of the mounting
bracket_front hookand fix it using fasteners.
Mounting Bracket_Front
M10 Plain Washer
M10 Spring Washer
M10 Hex. Bolt
