Samsung RFV01U-D2A - Figure 13. Finger Guard Fixing (1)

Confidential
Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 21
Copyright © 2017, All Rights Reserved.

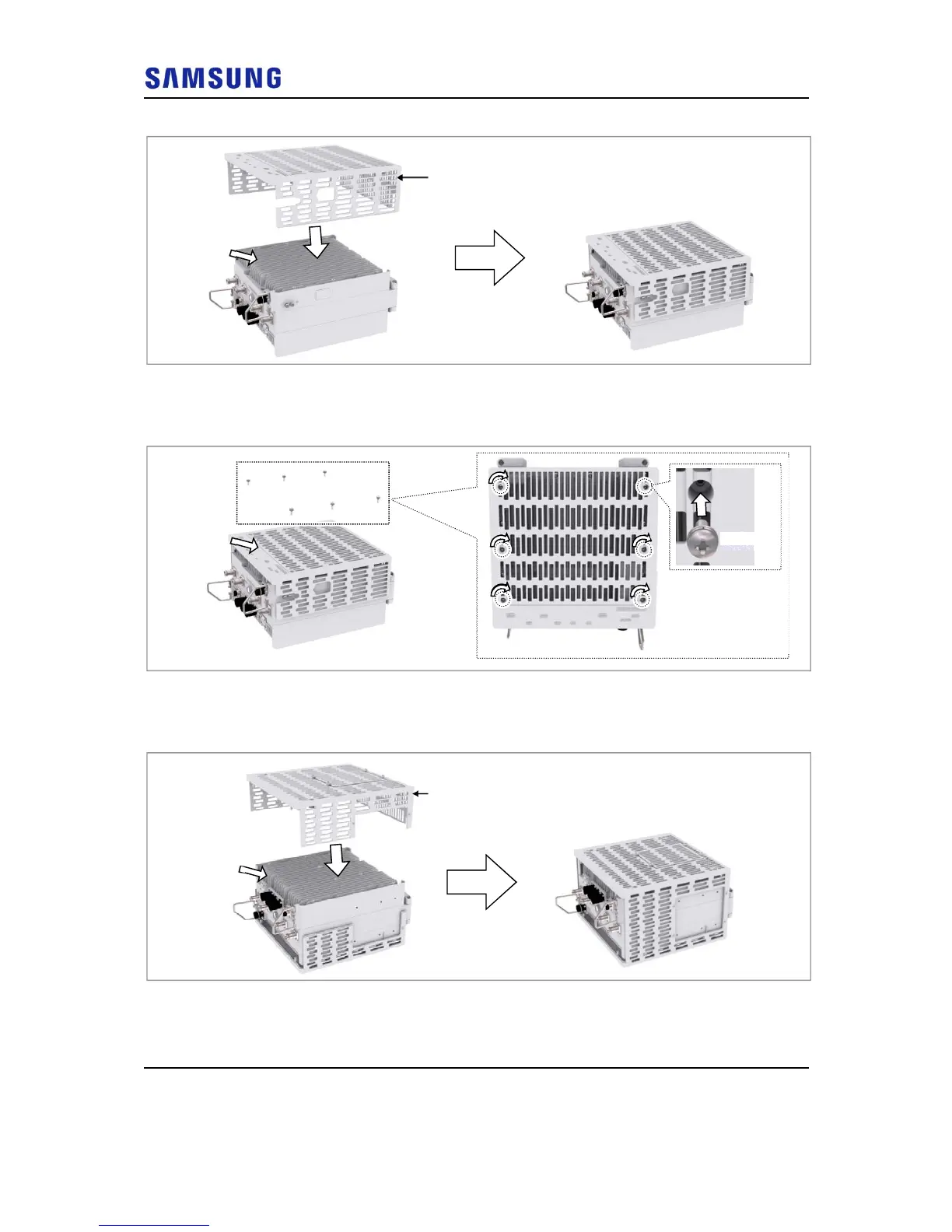

Figure 13. Finger Guard Fixing (1)
3 Fix the finger guard_front using fasteners.
Figure 14. Finger Guard Fixing (2)
4 Place the finger guard_rear to the RRH rear.
Figure 15. Finger Guard Fixing (3)
5 Fix the finger guard_rear using fasteners.
Finger Guard_Front
[RRH Front]
[Top View]
M5 SEMS
[RRH Front]
Finger Guard_Rear
[RRH Rear]
