Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 30
Copyright © 2017, All Rights Reserved.

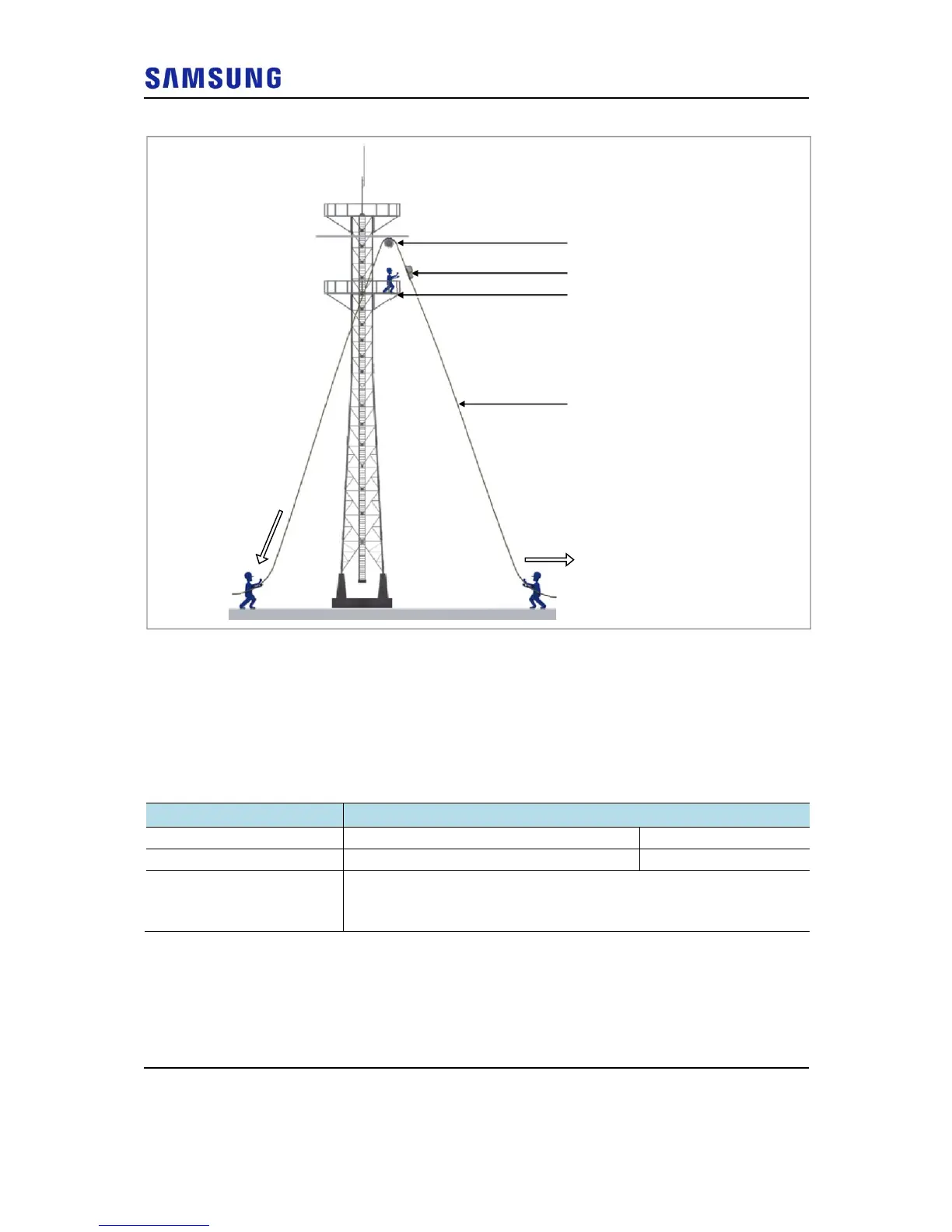

Figure 26. Lifting RRH and Mounting Bracket Assembly
Fixing Mounting Bracket Assembly
For 1 Sector
To fix the mounting bracket Assembly_1 sector pole type, do the following:
1 Make sure you have the following items:
Table 7. Parts and Tools for fixing Mounting Bracket Assembly_1 Sector Pole Type
Category Description
Parts 1 Sector Mounting Bracket Assembly 1 Set
Recommended Torque Value M10 Hex. Nut 217 lbfin (250 kgf·cm)
Working Tools
 Torque Wrench (100 to 400 lbf·in)
 Torque Wrench Spanner head (apply Hex. Head: 17 mm)
 Spanner (17 mm), Level
2 Place a mounting bracket assembly to the pole.
Pulley
RRH/Mounting Bracket Assembly
Tower Platform
Rope
Operator A Operator B
