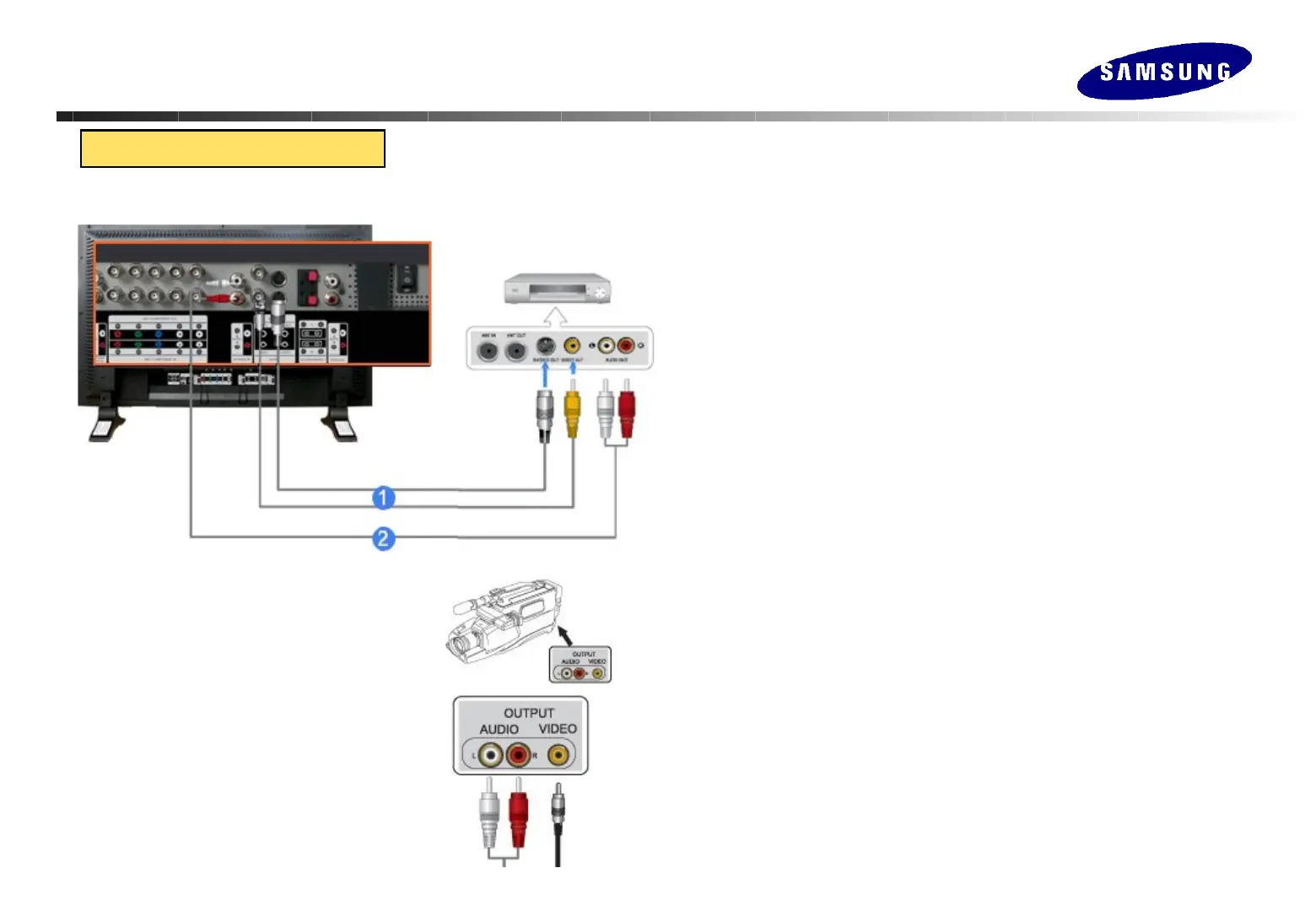

1. AV input devices like VCRs or Camcorders are connected to the AV IN
[VIDEO] or AV IN [S-VIDEO] of the monitor using the S-VHS or BNC cable.
2. Connect the Audio (L) and Audio (R) terminals of a VCR or Camcorders to
the monitor's AV IN [L-AUDIO-R] using audio cables.
3. Select AV or S-Video that is connected to a VCR or Camcorders using the
Source button on the monitor's front or remote control.
4. Then, start the VCR or Camcorders with a tape inserted.
Connecting to a VCR
Connecting the Monitor
Connecting the Monitor
