Network board part
Network board part

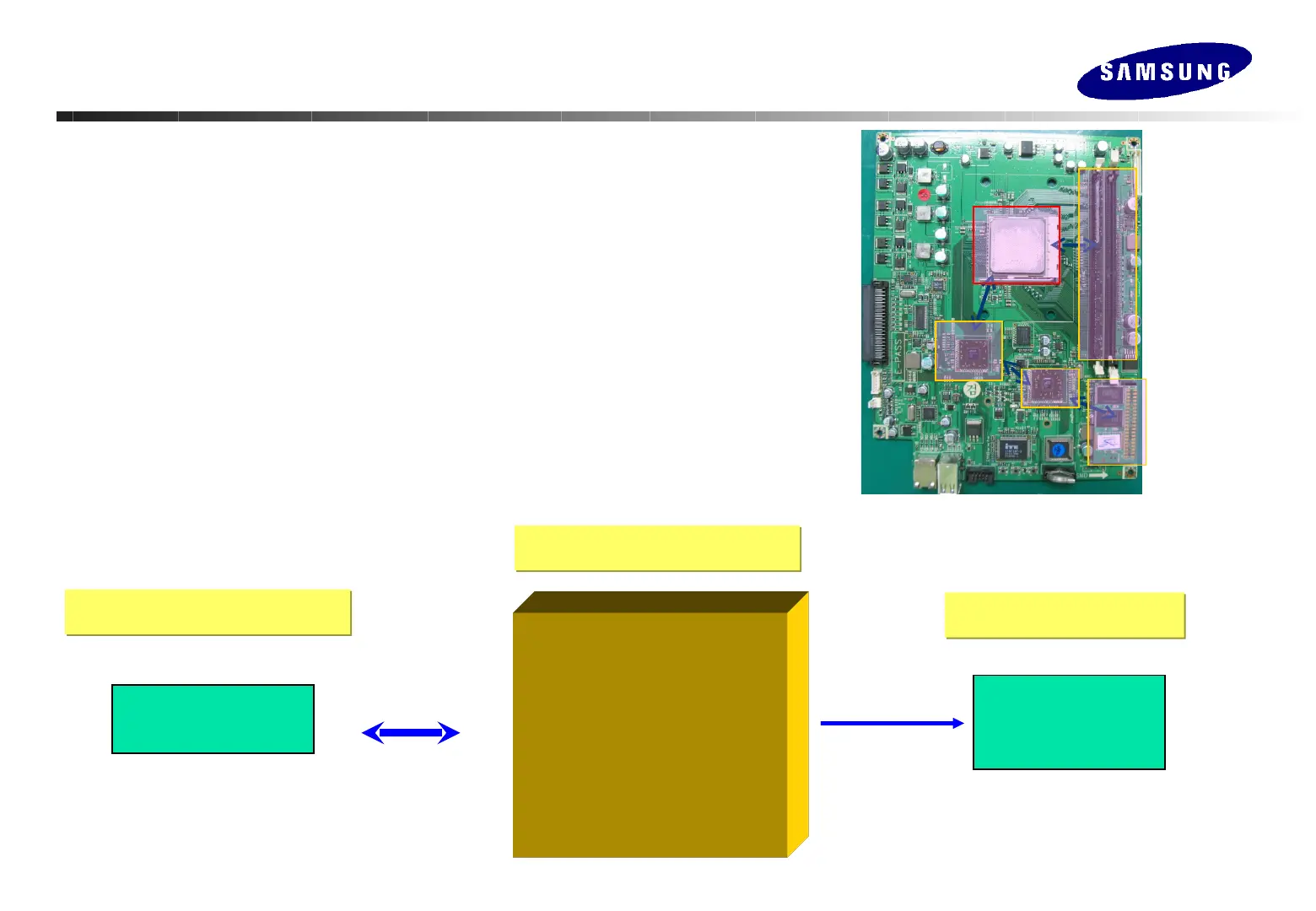

5. ALC262
- AC’97 Audio Codec of 2 channel
- The input of ALC262 is digital data from South Bridge
- The Stereo L/R output signal delivered to Sound Processor IC
on the main board
ALC262
South Processor IC
South Processor IC
Stereo L/R
MSP4450
(Main Board)
Audio Codec IC
Audio Codec IC
South Bridge IC
South Bridge IC
SB600
(South Bridge)
Digital data
CPU
North
Bridge
South
Bridge
FDM
DIMM
