Samsung SyncMaster 460DX - Folie 78

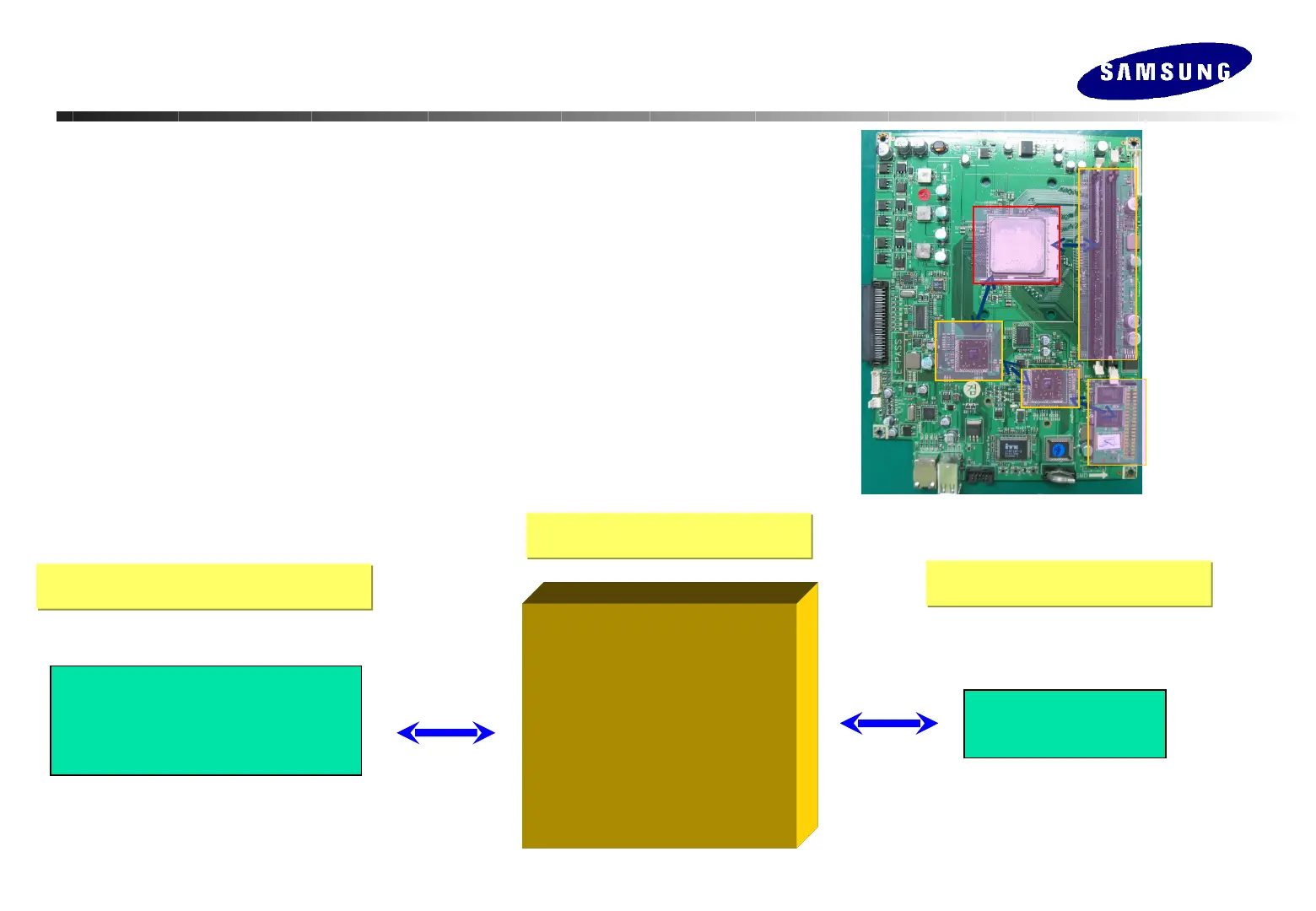

Network board part
Network board part
4. Marvell 88e8055
- Ethernet Controller
- Supports 10/100/1000 Mbps LAN
- Uses MAC (Media Access Controller) Address
Marvell
88e8055
Ethernet PHY input
Ethernet PHY input
LAN connector
(10/100/1000 Mbps
Transformer inside)
Rx / Tx
SB600
(South Bridge)
South Bridge IC
South Bridge IC
Ethernet Controller IC
Ethernet Controller IC
32 Bit Data
CPU
North
Bridge
South
Bridge
FDM
DIMM
