Disassembly (46”)
Disassembly (46”)

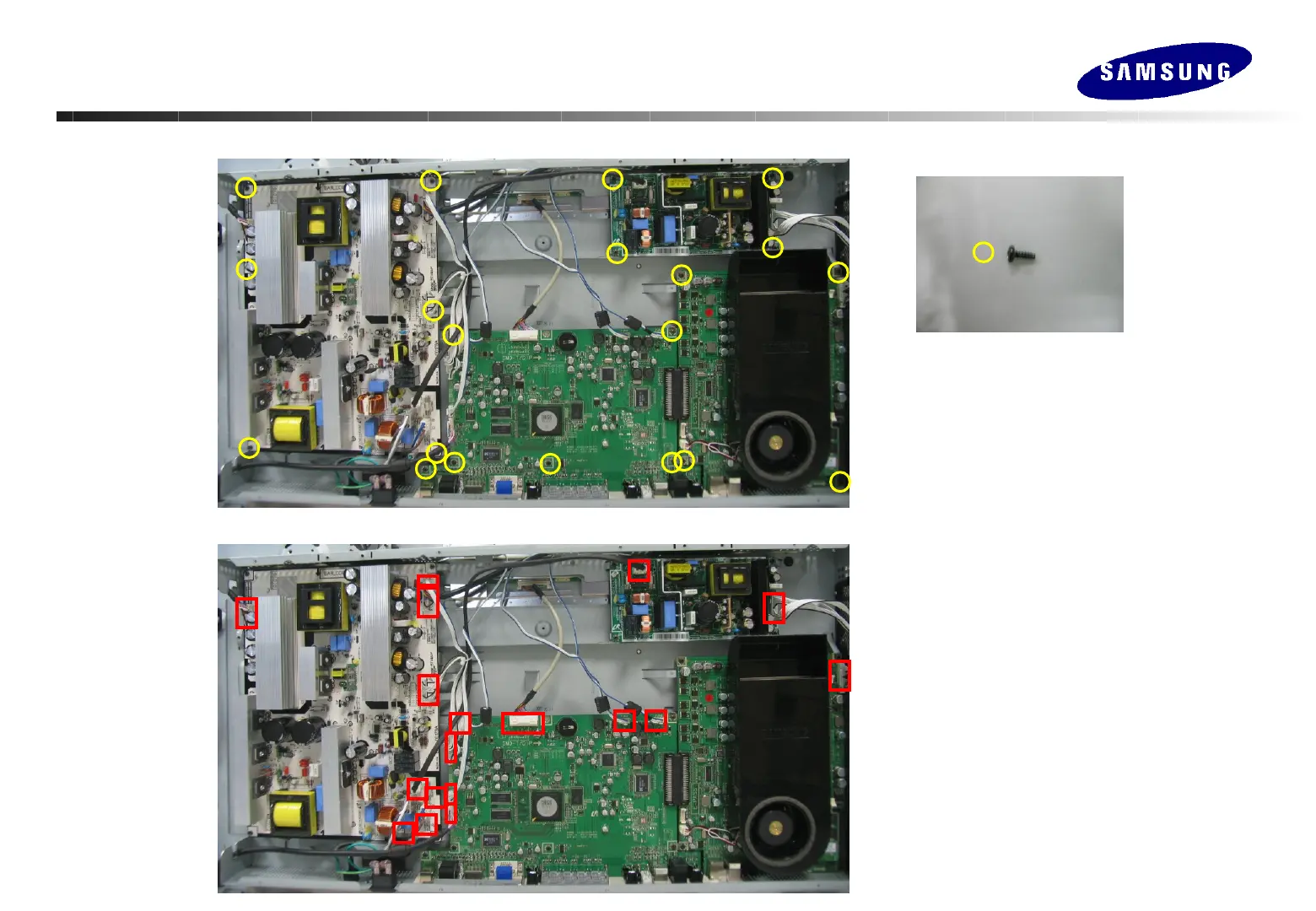

3. Remove 20 screws as showed the picture.
4. Remove the cables and separate the SMPS board and main board from bottom BRKT as showed the picture.
Screw
