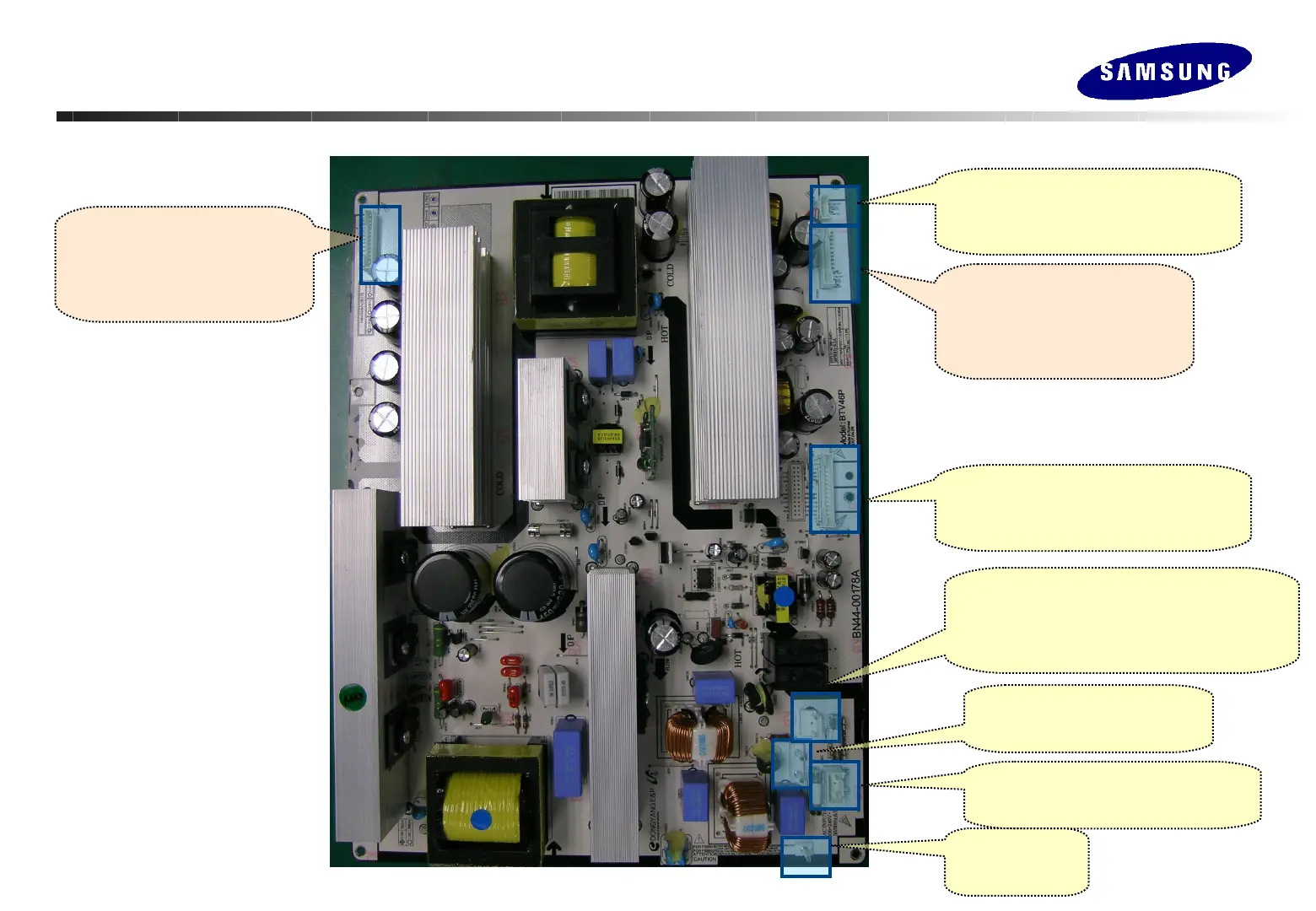

Board Connections – SMPS Board (46”)
Board Connections – SMPS Board (46”)
Connect i ng t o AC
s ocket
Connect i ng t o
Mechani cal
s wi t ch
Lamp Connect or
(Connecting to panel
inverter - left side)
Power Connect or 16P
(Connecting to MAIN board)
Power Connect or 5P
(Connecting to MAIN board,
Relation to Lamp control)
Power
GND
Lamp Connect or
(Connecting to panel
inverter - right side)
Net wor k Connect or
(Connecting to Network Power)
