Chapter 4 PAS Application Software Configuring Billing Energy and TOU Registers
Branch Feeder Monitor 136_Installation Operation and Manual 53
4.7.3 Configuring the Season Tariff Schedule
To configure your season tariff schedule, select Energy/TOU from the Meter Setup menu, and then click
on the TOU Calendar tab.
The TOU calendar allows you to configure any tariff schedule based on any possible utility regulation. The
calendar itself has 32 entries that allow you to specify profiles for working days and holidays through all
seasons in any order that is convenient for you, based on simple intuitive rules. There are no limitations
on how to define your schedule. The BFM136 is able to automatically recognize your settings and to select
a proper daily tariff schedule for any day within a year.

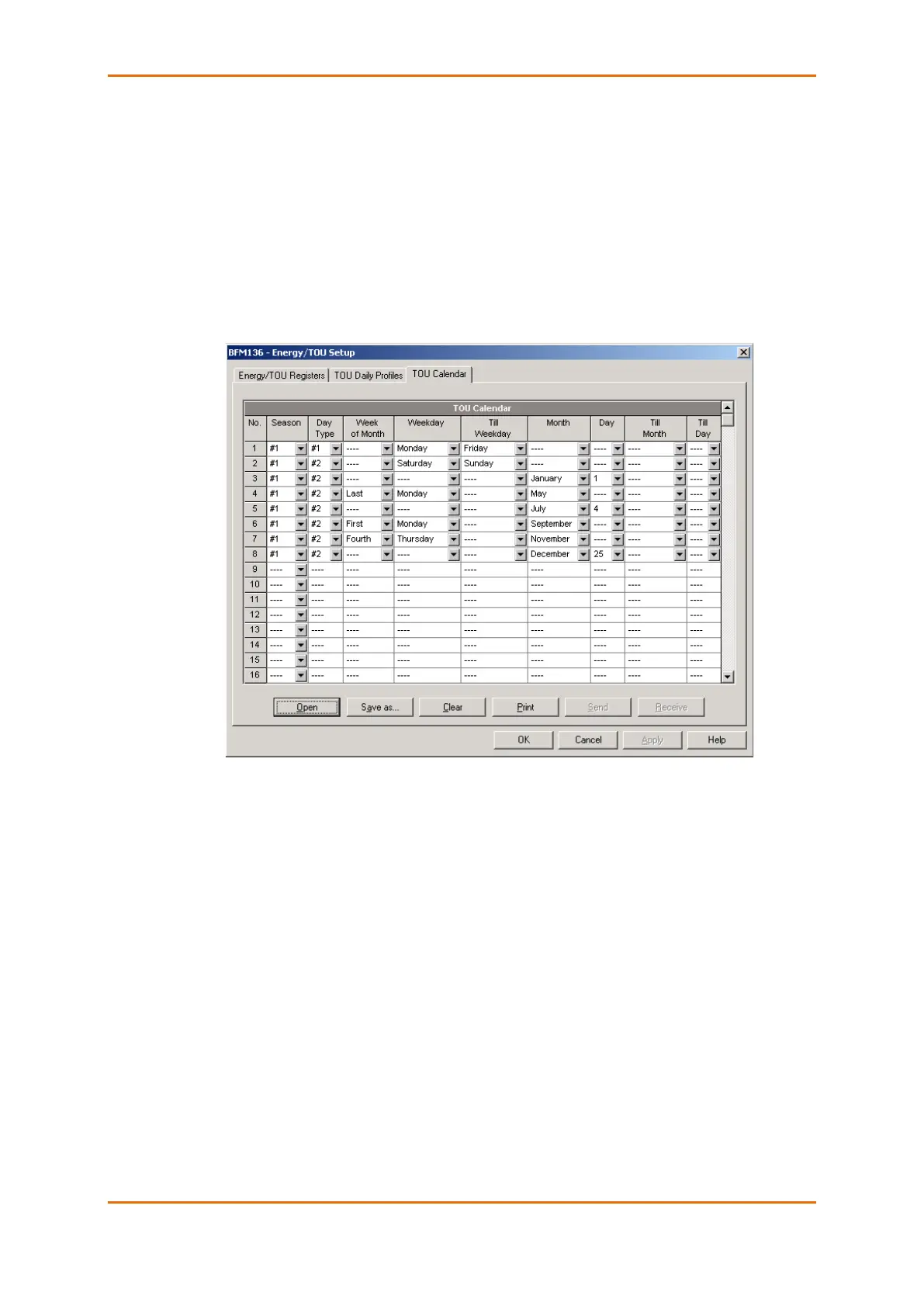

1. The following picture gives you an example of a single-season tariff schedule configured for
weekends and the designated US holidays.
To configure your season tariff schedule:
1. In the “Season” box, select the season, and in the “Day Type” box, select a day type for this
calendar entry.
2. Select the time interval when this daily tariff schedule will be effective based on the start and the
end weekdays and, for a multi-season schedule, on the start and the end month for the selected
season. It does not matter which order of weekdays or months you selected: the BFM136
recognizes the correct order.
3. For exception days such as holidays, select a specific day either by specifying a day and month,
or by selecting a month, a week and a weekday within the month.
