Chapter 5 Configuring T H E P M 1 3 0 P L U S
Configuring R E C O R D E R S
102 PM130 PLUS Powermeter Series
3. Select the number of parameters you want to be recorded in the file
records.
4. Select the maximum number of records you want to be recorded in
the file.
5. Click OK, and then send your new setup to the meter, or save to the
device database.
To define the contents of the file:
1. Highlight the data log file row with the left mouse button, and then
click on the Setup Recorder button, or click on the Data Recorder
tab and select the corresponding log number.

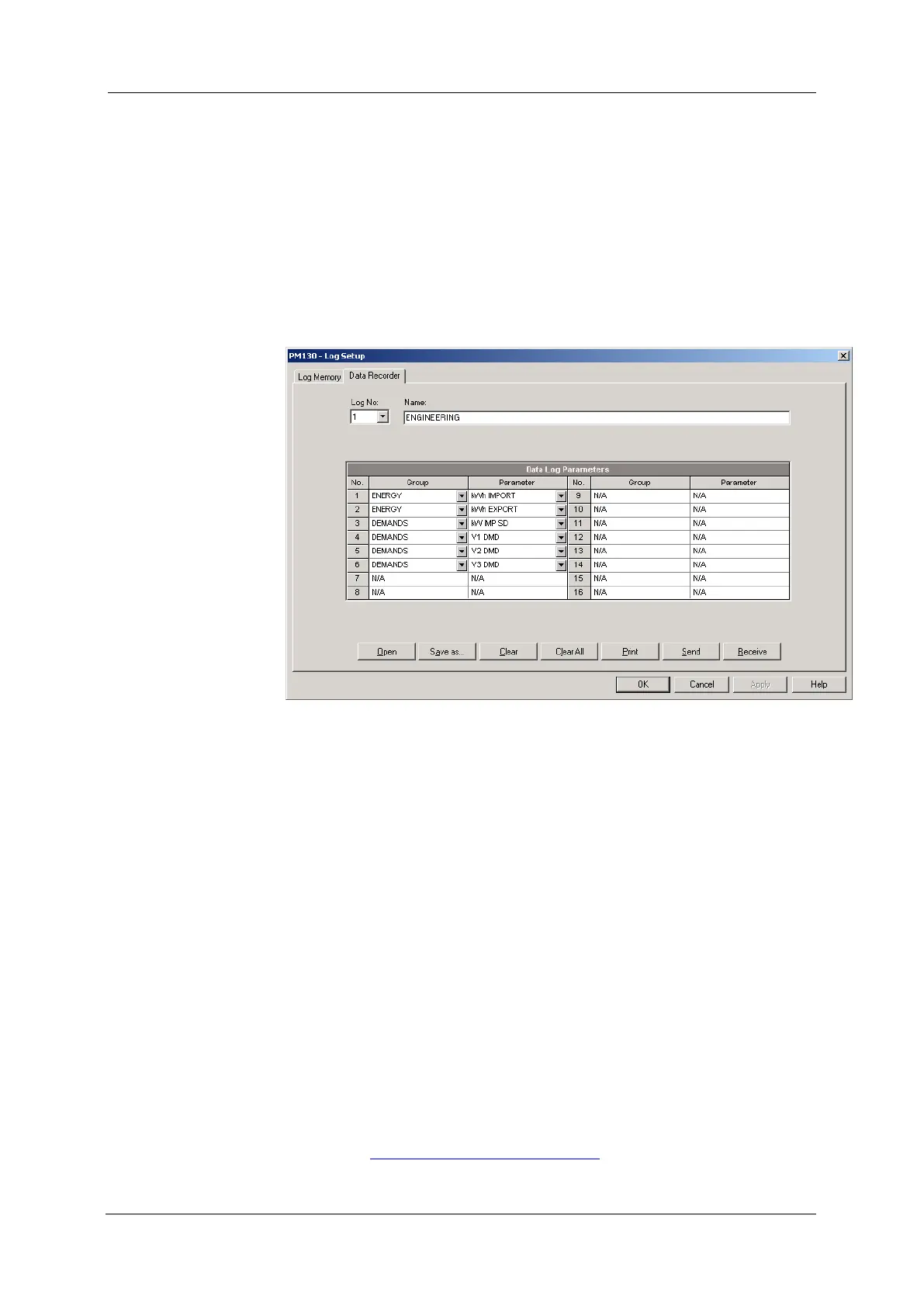

Figure 5-19: Log Setup Dialog Box – Data Recorder Tab
2. Configure the list of parameters to be recorded in a log file. You are
not allowed to select more parameters than you defined when
configuring your file. Refer to Appendix D for a list of available
parameters.
3. For your convenience, PAS follows your selection and helps you
configure a series of the neighboring parameters: when you open the
Group box for the next parameter, PAS highlights the same group as
in your previous selection; if you select this group again, PAS
automatically updates the Parameter box with the following
parameter in the group.
4. Add the name for your data log file in the Name box. It will appear in
the data log reports.
5. Save your new setup to the device database, and send it to the
meter.
Billing/TOU Daily Profile Log File
Data log #16 is configurable to store TOU daily profile log records on a
daily basis.
The file is organized as a multi-section file that has a separate section of
the same structure for each billing energy and maximum demand register.
The number of sections is taken automatically from the Billing/TOU Registers
setup (see Configuring Billing/Tariff Registers). If the maximum demand
