currents. In networks with high harmonics, the second method is
preferable.
When the non-active power calculation mode is selected, active
power is measured directly, apparent power is taken as product S =
V x I, where V and I are the RMS volts and amps, and reactive power
(called non-active power) is calculated as:
Configuring Digital Inputs
The PM130 PLUS can be provided with four, eight or twelve digital inputs
that can be linked to control setpoints to give an indication on input status
change (see Configuring Alarm/Control Setpoints), or can be linked to
general pulse counters to count incoming pulses (see Configuring
Counters). They can also be linked to the Billing/TOU registers to count
pulses from external wattmeters or gas and water meters.

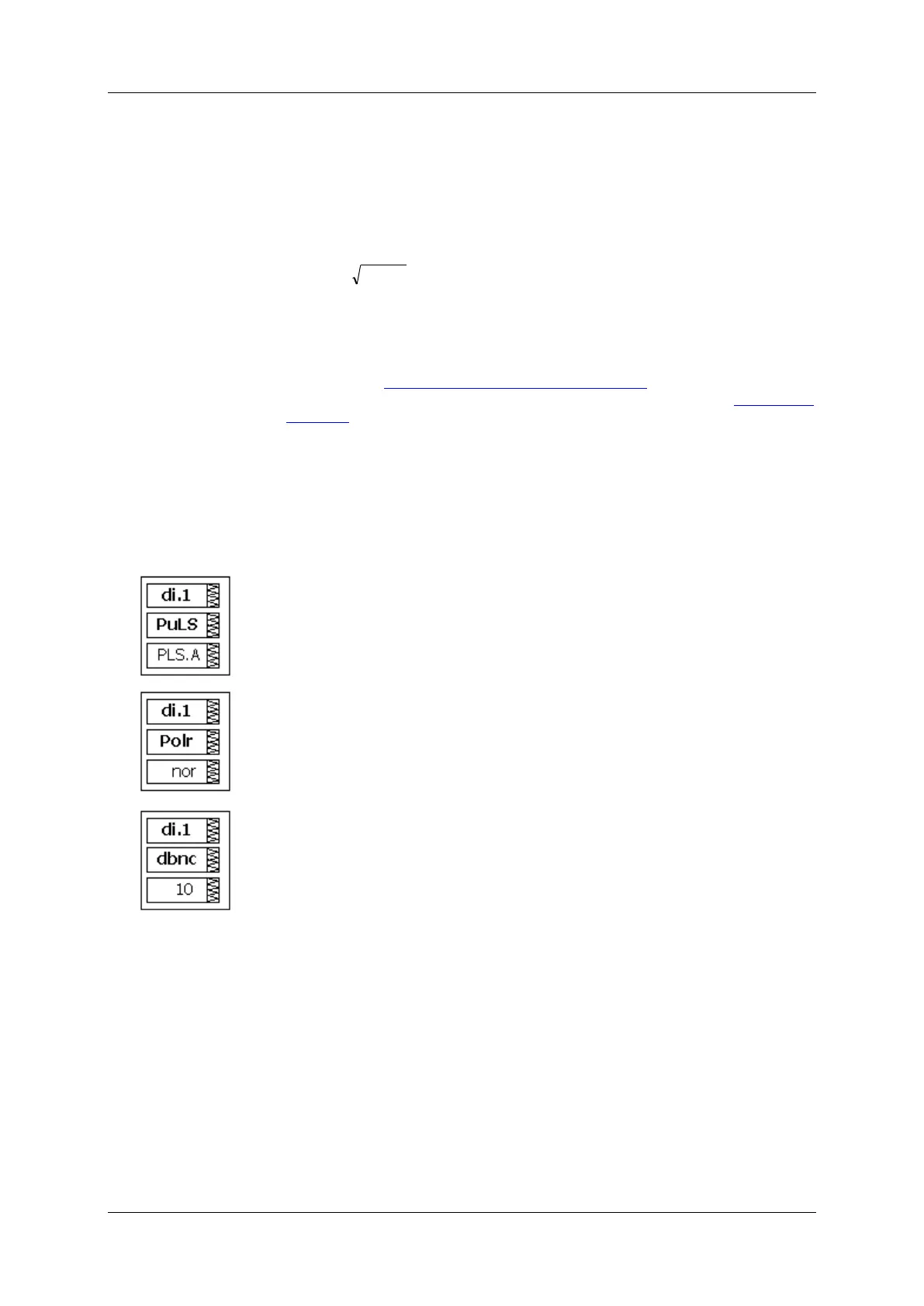

Using the Front Display
Select dinP from the main menu. This menu entry appears only if the
digital I/O module is plugged into the meter.
Use the UP and DOWN arrow buttons to scroll to the required digital
input.
To select a digital input parameter:
1. Press the SELECT button to activate the middle window.
2. Use the UP and DOWN arrow buttons to scroll to the required
parameter.
To change the parameter value:
1. Press the SELECT button to activate the lower window.
2. Use the UP and DOWN arrow buttons to select the required value.
3. Press ENTER to confirm the new parameter setting or press ESC to
discard changes. You are returned to the middle window and can
configure other parameters.
To store your new settings:
1. Press the ENTER button when the middle window is highlighted.
2. You are returned to the upper window and can select another digital
input or exit the menu.
3. Press ESC to exit the menu.
The available options are shown in Table 22.
Using PAS
Select General Setup from the Meter Setup menu, and then click on the
Digital Inputs tab.
