Chapter 8 Retrieving A N D S T O R I N G F I L E S
Using T H E U P L O A D S C H E D U L E R
126 PM130 PLUS Powermeter Series
8.2 Using the Upload Scheduler
To setup the Upload Scheduler:
1. Select Upload Scheduler from the Logs menu.

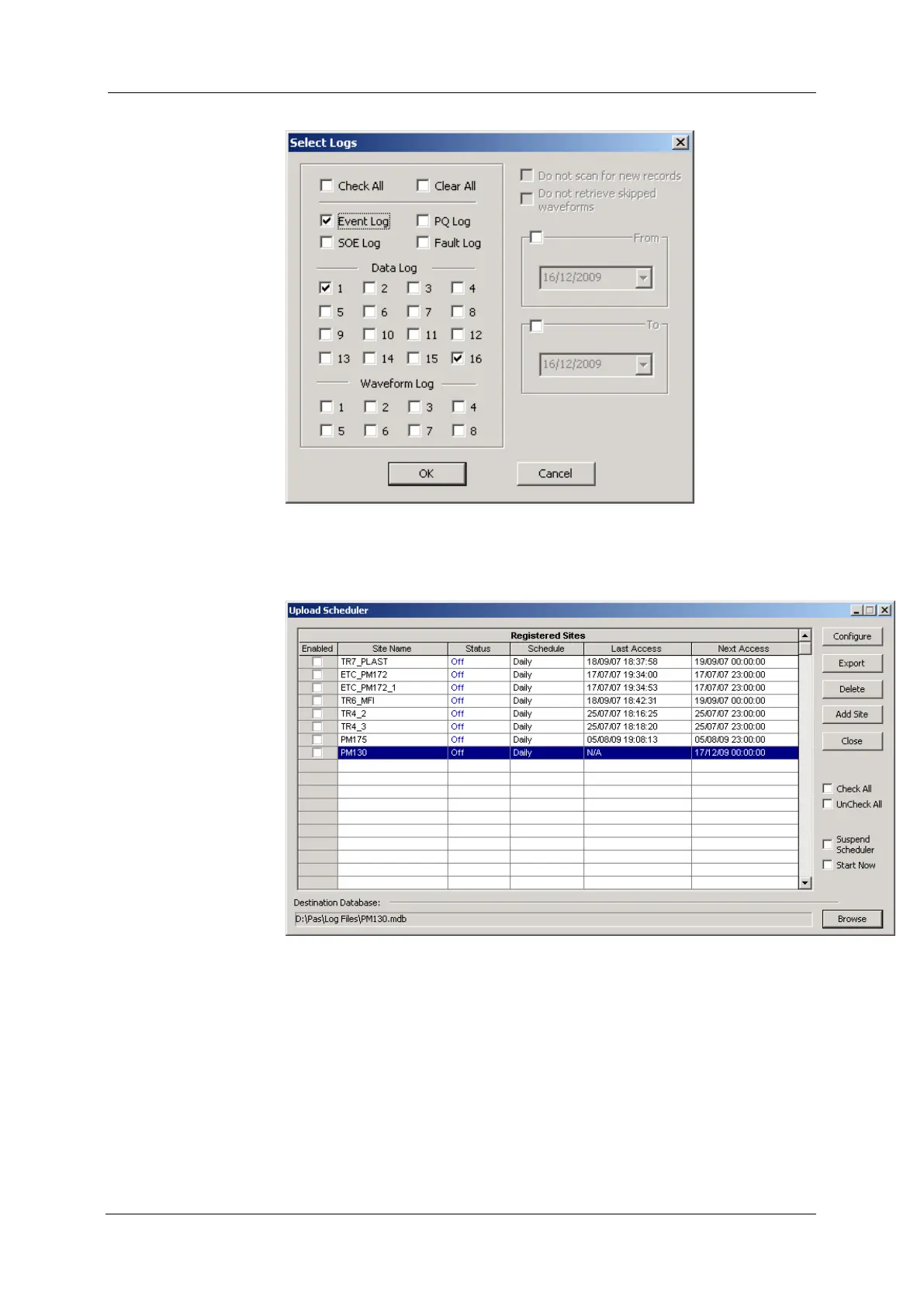

Figure 8-1: Upload Scheduler Setup Dialog Box
2. Click Add Site, point to the site database for which you want to
organize the schedule, and then click OK.
3. Click Browse and select a database for storing retrieved data, or
type the name for a new database, select a directory where you want
to save it, and then click OK.
4. Click Configure or double click on the site row.
