Chapter 5 Configuring T H E P M 1 3 0 P L U S
Configuring C O M M U N I C A T I O N P R O T O C O L S
PM130 PLUS Powermeter Series 105
5.6 Configuring Communication Protocols
This section describes how to customize protocol options for use with your
application software.
Configuring Modbus
Modbus Point Mapping
The PM130 PLUS provides 120 user assignable registers at addresses 0 to
119. You can re-map any register available in the meter to any assignable
register so that registers found at different locations may be accessed with
a single request by re-mapping them to adjacent addresses.
Initially these registers are reserved and none of them points to an actual
data register. To build your Modbus register map:
1. Select Protocol Setup from the Meter Setup menu, and click on
the Modbus Registers tab.
2. Click on the Default button to cause the assignable registers to
reference the actual default meter register 6656 (0 through 119 are
not allowable register addresses for re-mapping).

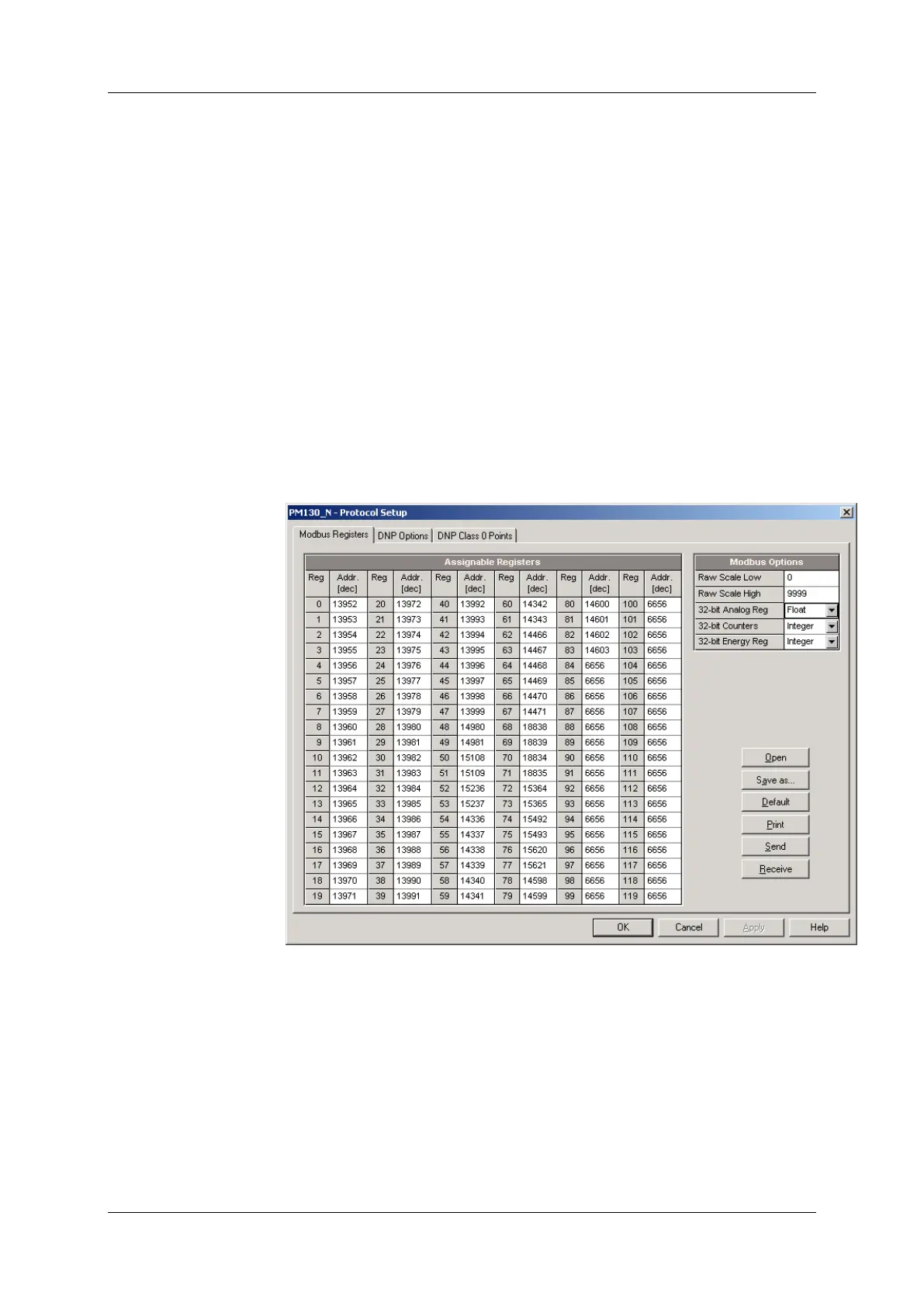

Figure 5-20: Protocol Setup Dialog Box – Modbus Registers Tab
3. Type in the actual addresses you want to read from or write to via
the assignable registers. Refer to the PM130 PLUS Modbus Reference
Guide for a list of the available registers. Note that 32-bit Modbus
registers should always start at an even register address.
4. Click Send to download your setup to the meter.
Changing 32-bit Register Format
The PM130 PLUS allows you to read 32-bit Modbus analog registers,
energy counters and binary counters either in integer format, or in IEEE
single precision floating point format.
