Chapter 7 Monitoring M E T E R S Viewing R E A L - T I M E D A T A
116 PM130 PLUS Powermeter Series
Chapter 7 Monitoring Meters
7.1 Viewing Real-time Data
Real-time data can be continuously retrieved from your devices and
updated on the screen at the rate you defined in the Instrument Setup.
To get real-time data from your meter:
1. Ensure that the On-line button on the PAS toolbar is checked.
2. Select the device site from the list box on the PAS toolbar.
3. Point to RT Data Monitor on the Monitor menu, and then select a
data set you want to view.
Polling Devices
Click on the “Poll” or “Continuous poll” button to poll the meter once
or continuously.
Click on the Stop button to stop continuous polling.

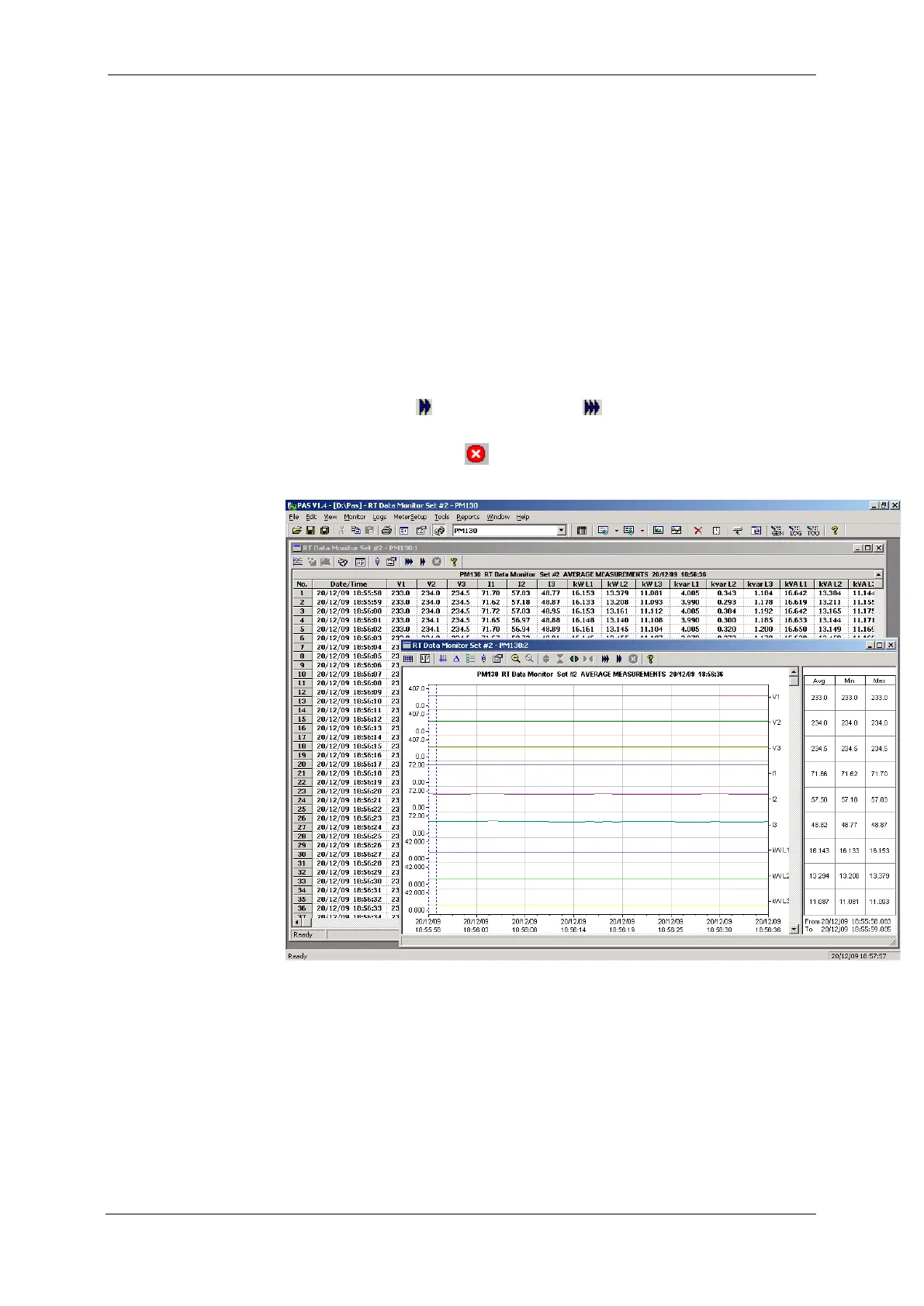

4. The following picture shows a typical data monitor window.
Figure 7-1: RT Data Monitor Window
You can open as many monitor windows as you wish, either for different
sites, or for the same site using different data sets. An open data monitor
window is linked to the current site and does not change if you select
another site in the site list.
You can view acquired data in a tabular form or in a graphical form as a
data trend.
