Chapter 2 Installation I/ O C O N N E C T I O N S
PM130 PLUS Powermeter Series 35
8 DI module
Eight optically isolated status inputs are provided for status monitoring,
pulse counting, external power demand period, and time synchronization

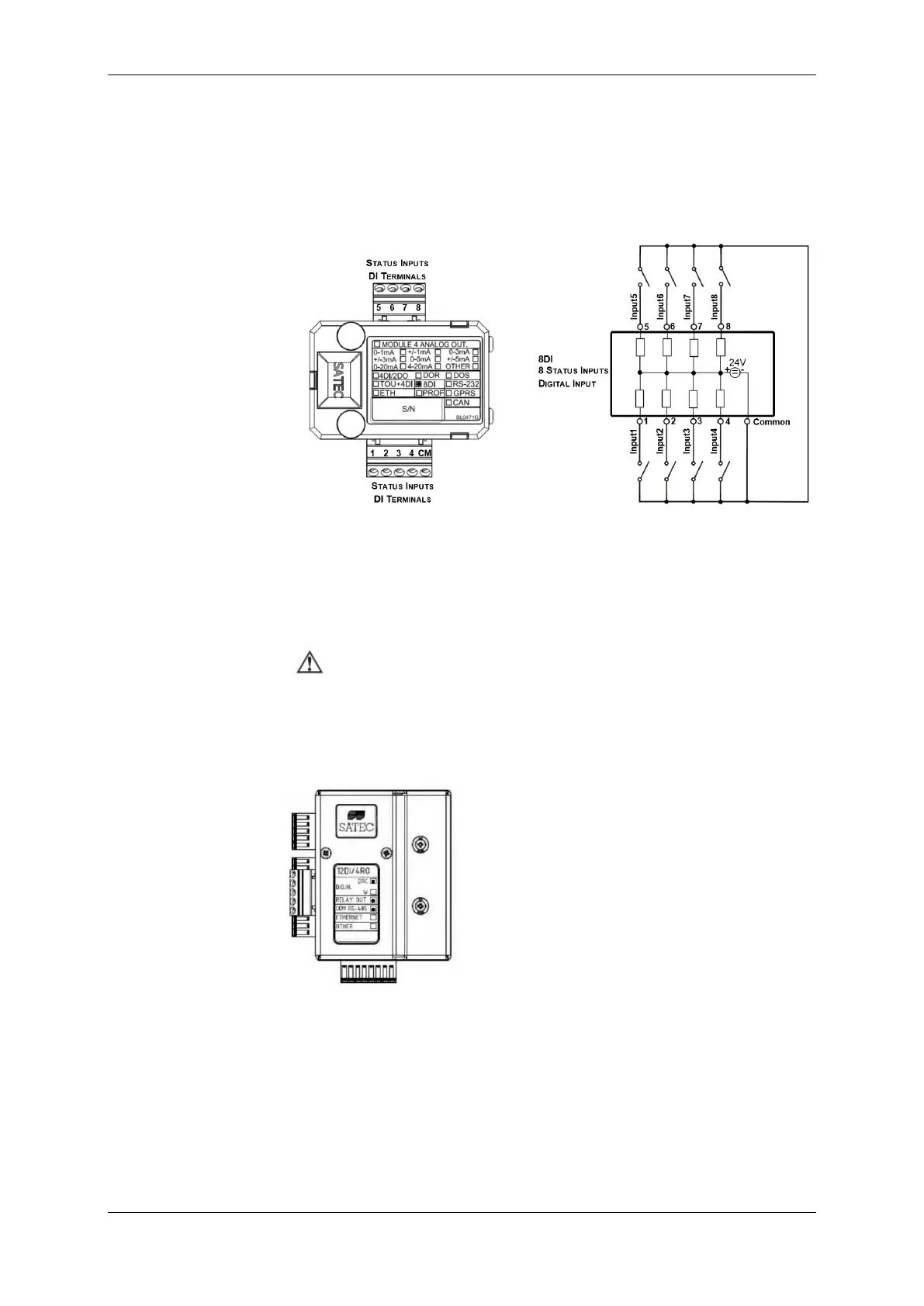

Figure 2-25 8 DI - Digital Input Connection
12DI/4RO Module
Before I/O Module installation ensure that all incoming power
sources are shut OFF. Failure to observe this practice can
result in serious or even fatal injury and damage to
equipment.
The 12DI/4RO module can be equipped with optional communication port
COM2 – ETHERNET or RS-422/485.
Figure 2-26 12DI/4RO Module
Relay Outputs
There are four electro-mechanic relay outputs provided for energy pulsing,
alarms, or remote control.
