Chapter 3 Using F R O N T D I S P L A Y Using T H E M E N U S
PM130 PLUS Powermeter Series 57
operation. When there are recorded diagnostic messages, the “i”
diagnostic LED on the front display briefly flashes two times to indicate
that the meter may require servicing.
The diagnostic LED can be disabled or enabled via the display setup menu
(see Configuring the Display).
Use the UP and DOWN arrow buttons to scroll through the diagnostic
message list. See Device Diagnostic Codes in Appendix G for the list of
diagnostic codes and their meanings.
Frequent hardware failures may be the result of excessive electrical noise
in the region of the device. If the meter continuously resets itself, contact
your local distributor.
A configuration reset may also be a result of the legal changes in the
meter configuration when other configuration data is affected by the
changes.
The diagnostics codes are stored in a non-volatile register, which is not
affected by loss of power and may be cleared via communications (see
Viewing and Clearing Device Diagnostics in Chapter 6) or from the meter
display.
To clear the meter diagnostics:
1. Select a diagnostics page.
2. While holding the SELECT button, press and hold the ENTER button
for about 5 seconds until the diagnostic message is reset to none.
3.4 Using the Menus

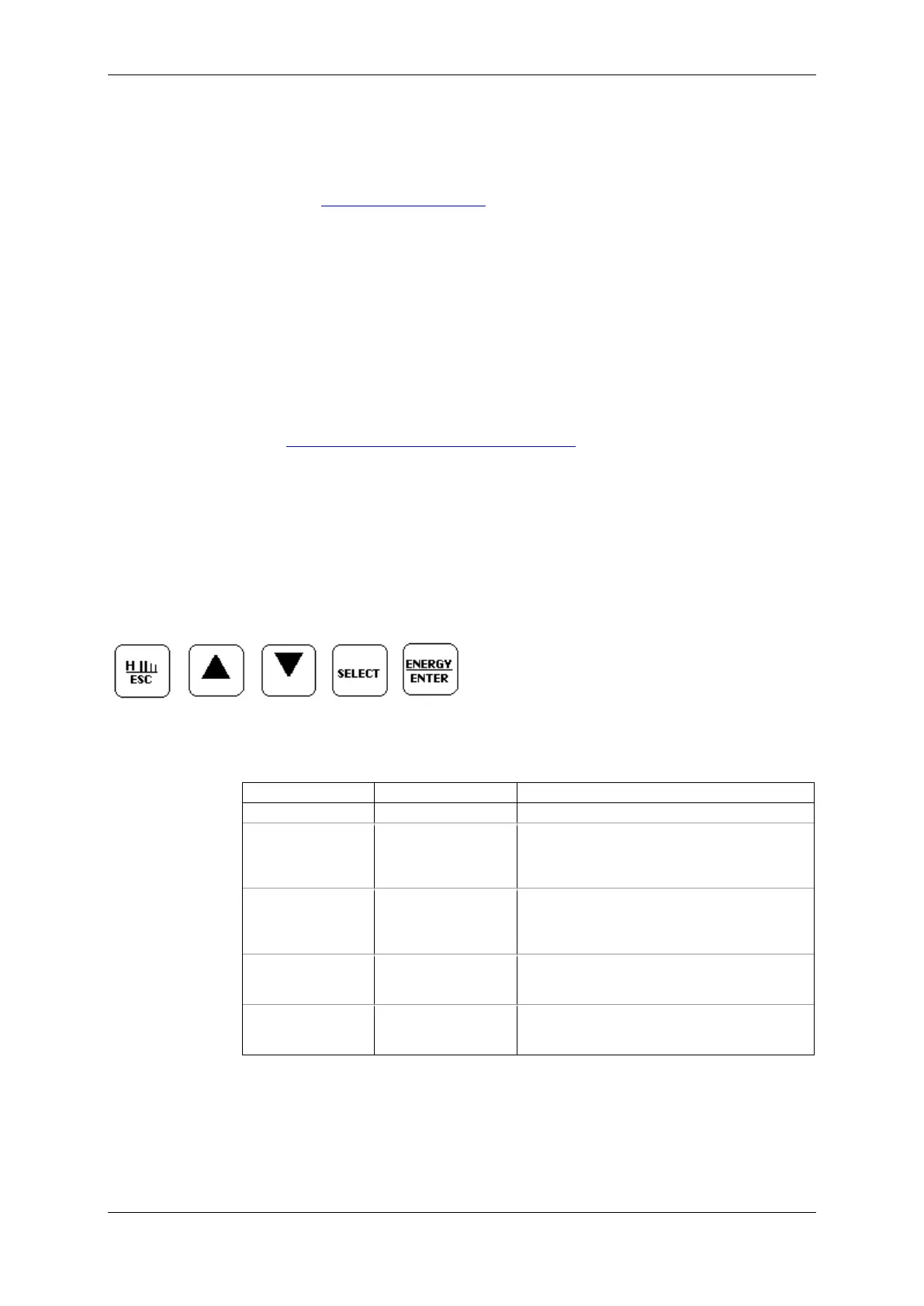

Navigation Buttons
The PM130 PLUS has a menu-driven setup. Press and release the SELECT
button to access the meter menus.
See the following table for button operations in menus.
Button
Action
Operations
SELECT
Press and release
Highlight (activate) a menu window.
UP
Press and release
Scroll through menu items forwards or
increment a number in the highlighted
window. Hold down the button for continuous
scrolling.
DOWN
Press and release
Scroll through menu items backwards or
decrement a number in the highlighted
window. Hold down the button for continuous
scrolling.
ENERGY/ENTER
Press and release
Confirm the selection and store the changed
item or perform an action indicated in a
highlighted window.
H/ESC
Press and release
Quit the highlighted window without saving a
selected item or return to the upper level
menu.
Selecting Menus
To access the menus, press and release the SELECT button. The primary
meter menu is displayed as shown in the picture below.
