Chapter 2 Installation Communications C O N N E C T I O N S
PM130 PLUS Powermeter Series 41
ETH module – COM2 Ethernet Connection

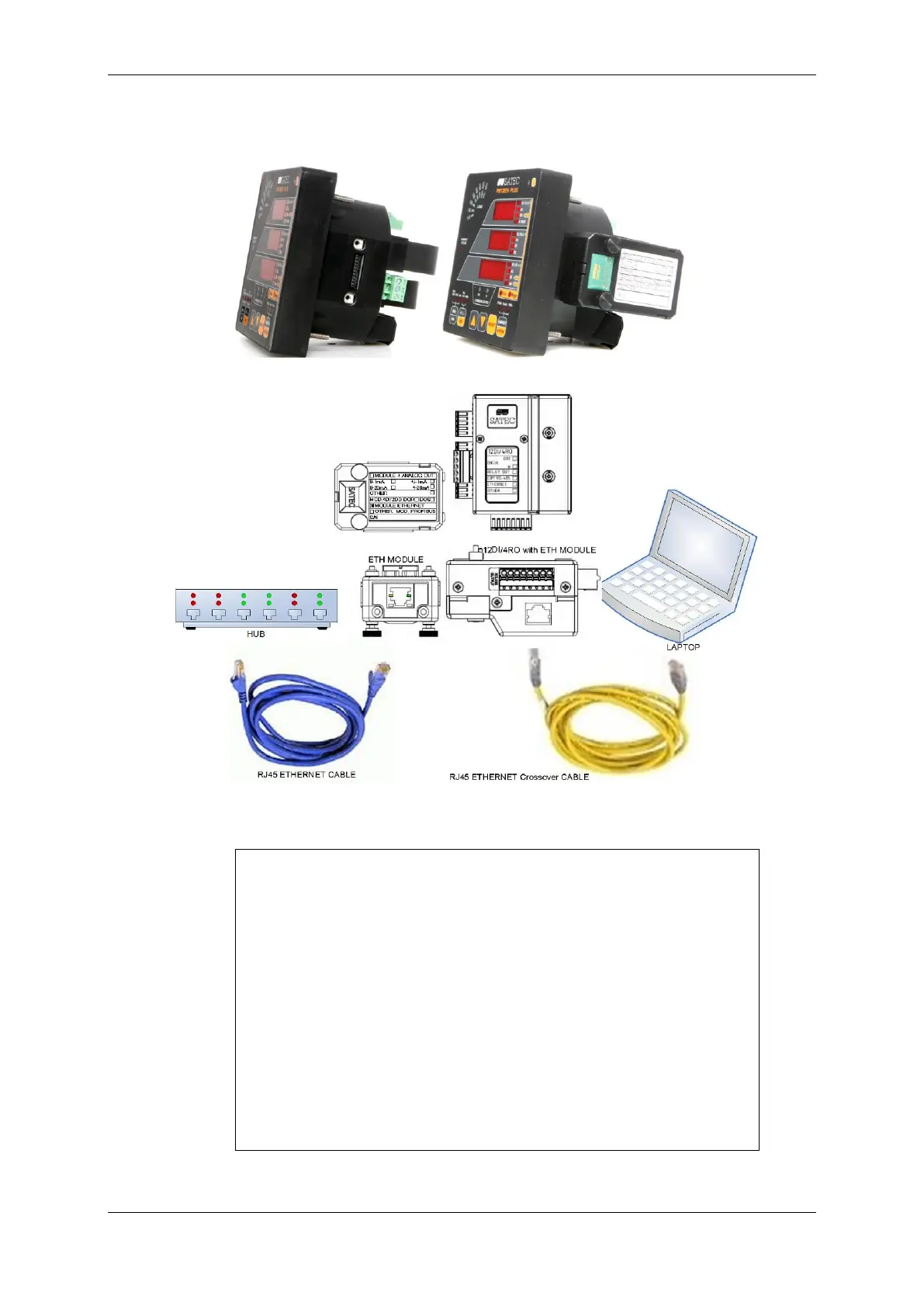

Figure 2-33 COM2 Ethernet Connection

 The ETH module TERMINAL is for use only with
equipment which has no live parts which are
ACCESSIBLE
 The RATING of the insulation of the external
equipment for use with the ETH module, shall comply
according to Installation Category II for insulation to
be suitable for SINGLE FAULT CONDITION
 The external equipment TERMINAL connection type
is RJ-45
 The type of equipment that might be connected to the
TERMINAL is:
o Personal Computer – PC or LAPTOP
o 10/100Base-T LAN HUB and/or Switch
