Chapter 3 Using F R O N T D I S P L A Y Status D I S P L A Y
PM130 PLUS Powermeter Series 55
The Status Display shows rarely used information that is especially helpful
for troubleshooting or when connecting the meter to an external
equipment.
To access the Status Display:
1. From the Data display, press the SELECT button to access the
primary meter menu.
The StA window is highlighted.
2. Press ENTER to access the Status Display.
3. Use the UP and DOWN arrow buttons to scroll through the status
pages.

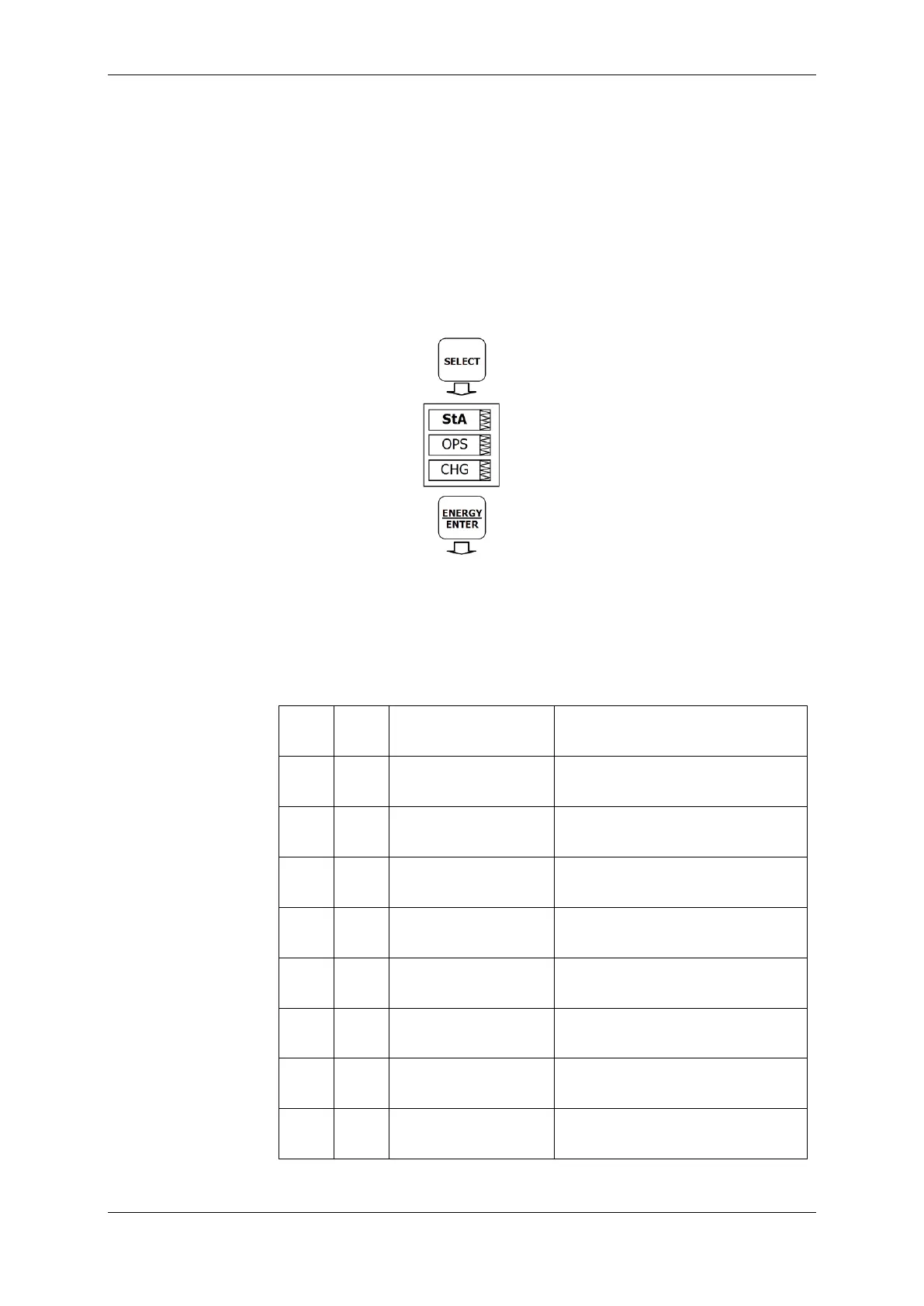

Figure 3-3: Status Display
To exit the Status Display:
1. Press ESC to return to the primary device menu.
2. Press ESC to return to the Data display.
Table 13: Status Display Parameters
1
PhS
rot
POS/nEG/Err
Phase rotation order
2
A.
V1 angle
V2 angle
V3 angle
Voltage angles (±180°, referenced to
V1)
3
A.
I1 angle
I2 angle
I3 angle
Current angles (±180°, referenced to
V1)
4
rEL
1.2
00
Relay status (with a digital I/O
module)
5
St.In
1.2.3.4
0000
Status inputs (with a digital I/O
module)
6
Cnt.1
<hour>
12345
Counter #1 value (a time counter – in
0.1 hour units)
7
Cnt.2
<hour>
12345
Counter #2 value (a time counter – in
0.1 hour units)
8
Cnt.3
<hour>
12345
Counter #3 value (a time counter – in
0.1 hour units)
9
Cnt.4
<hour>
12345
Counter #4 value (a time counter – in
0.1 hour units)
