Chapter 5 Configuring T H E P M 1 3 0 P L U S
General M E T E R S E T U P
88 PM130 PLUS Powermeter Series

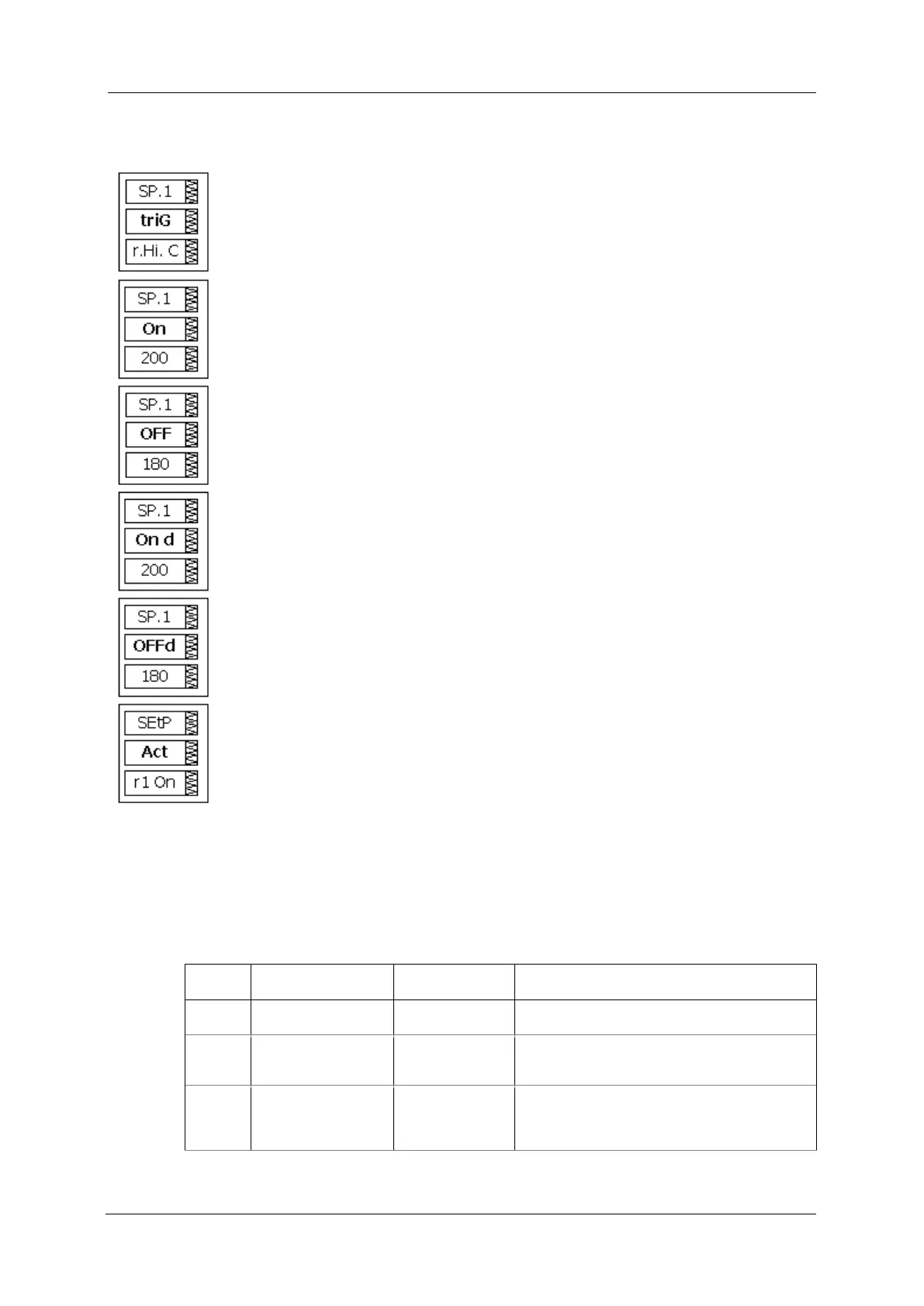

Using the Front Display
Select SEtP from the main menu to enter the setup menu.
Use the UP and DOWN arrow buttons to scroll to the required setpoint.
To select a setpoint parameter:
1. Press the SELECT button to activate the middle window.
2. Use the UP and DOWN arrow buttons to scroll to the required
parameter.
To change the parameter value:
1. Press the SELECT button to activate the lower window.
2. Use the UP and DOWN arrow buttons to select the required value.
3. Press ENTER to confirm the new setting or press ESC to discard
changes.
4. You are returned to the middle window and can configure another
parameter.
To store your new setpoint settings after you configured all setpoint
parameters:
1. Press the ENTER button when the middle window is highlighted.
2. You are returned to the upper window and can select another
setpoint or exit the menu.
3. Press ESC to exit the menu.
See the table below for the available setpoint options.
Using PAS
Select General Setup from the Meter Setup menu, and then click on the
Control/Alarm Setpoints tab.
The following table lists the available setpoint options.
Table 26: Setpoint Options
The trigger parameter that is used as an
argument in the logical expression
The threshold (in primary units) at which the
conditional expression would be evaluated to
true. Not applicable for digital triggers.
The threshold (in primary units) at which the
conditional expression would be evaluated to
false. Defines the hysteresis for analog
triggers. Not applicable for digital triggers.
