Schaerer 7300 - Page 145

SECTION VI
PARTS LIST
11 GS084813 Primary Thermostat ............................. 1
12 GS085403 Wire (Refer to "Wiring Diagram"
Elsewhere) ....................................... Ref
13 GS085402 Wire (Refer to "Wiring Diagram"
Elsewhere) ....................................... Ref
14 GS1020006 Nut ....................................................... 4
15 GS1067009 Lockwasher .......................................... 4
16 GS084965 Wire Fitting ........................................... 2
17 GS067691 Rubber Mounting .................................. 2
18 GS084967 Wire Fitting ........................................... 1

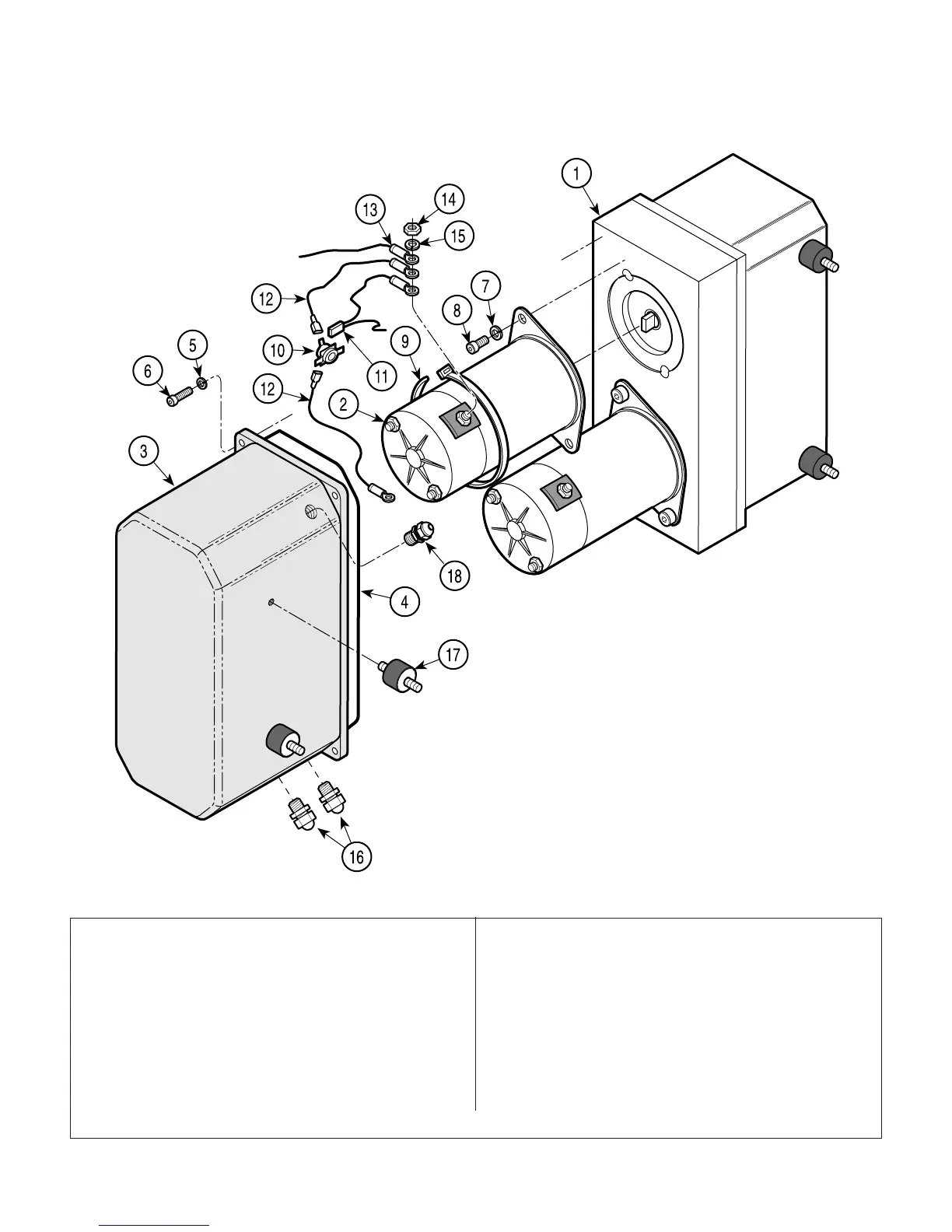

Hydraulic Motor
Components
Always Specify Model & Serial Number
Page 6-29Printed in U.S.A.
Item Part No. Description Qty.Item Part No. Description Qty.
1 Pump Components (Refer to "Hydraulic
Pump Components" Elsewhere) ....... Ref
2 GS085001 Motor .................................................... 2
3 GS085002 Motor Cover ......................................... 1
4 GS064512 Gasket .................................................. 2
5 GS1067009 Lockwasher .......................................... 8
6 GS120138 Screw ................................................... 8
7 GS1067009 Lockwasher .......................................... 4
8 GS1203041 Screw ................................................... 4
9 GS084970 Cable Tie (High Temp.) ........................ 4
10 GS084898 Secondary Thermostat ......................... 1
CA816700
