SECTION VI
PARTS LIST

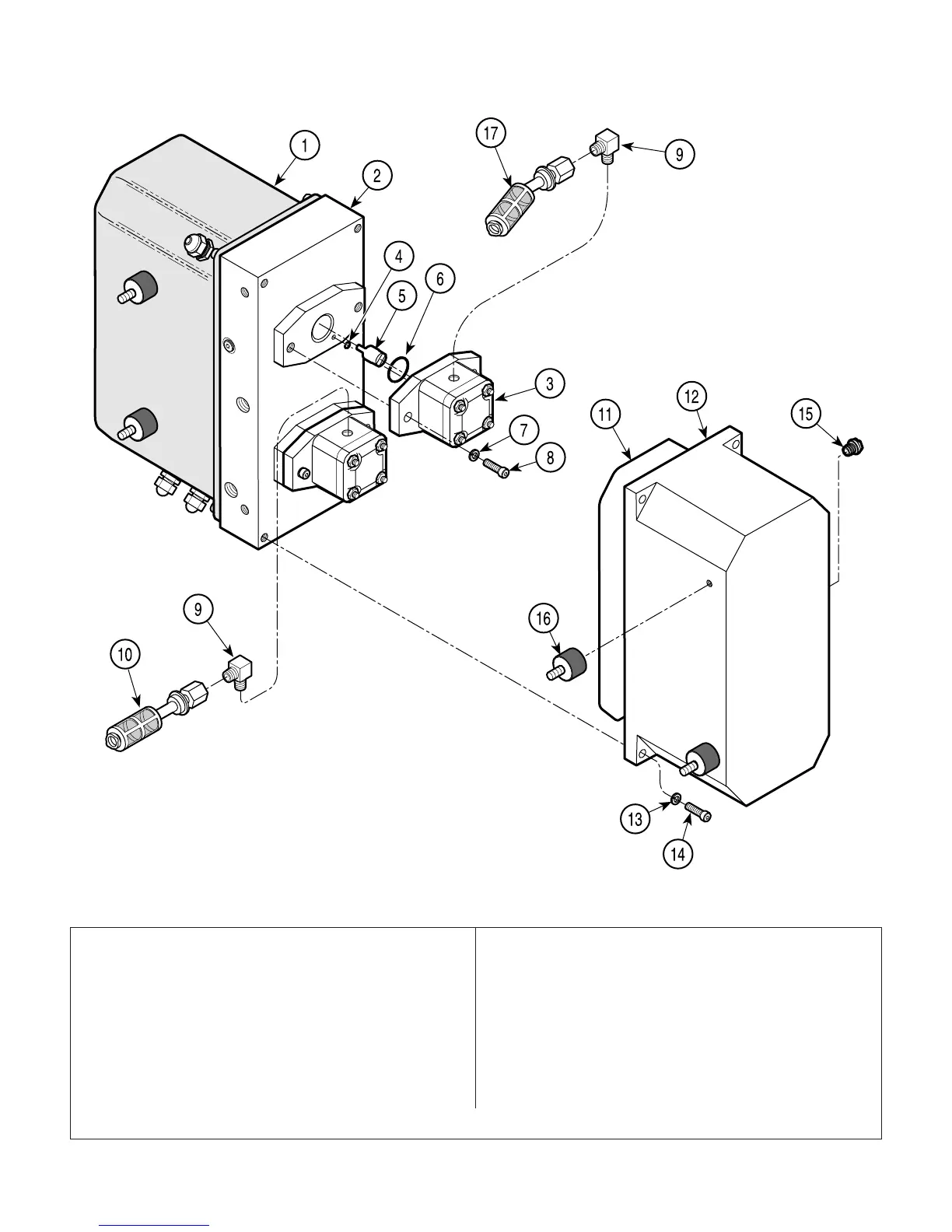

Hydraulic Pump
Components
Always Specify Model & Serial Number
Page 6-30Printed in U.S.A.
Item Part No. Description Qty.Item Part No. Description Qty.
1 Motor Cover (Refer to "Hydraulic Motor
Components" Elsewhere) ................. Ref
2 GS085041 Pump Manifold Block ........................... 1
3 GS085003 Pump Unit ............................................ 2
4 GS064660 O-Ring .................................................. 2
5 GS084954 Coupler ................................................. 2
6 GS064661 O-Ring .................................................. 2
7 GS1067009 Lockwasher .......................................... 4
8 GS1023044 Screw .................................................... 4
9 GS084953 Elbow.................................................... 2
10 GS085066 Filter Assembly - Straight ..................... 1
11 GS084911 Gasket .................................................. 1
12 GS085040 Pump Cover ......................................... 1
13 GS1067009 Lockwasher .......................................... 4
14 GS1001038 Screw ................................................... 4
15 GS084913 Plug ...................................................... 1
GS1235002 Shipping Plug ....................................... 1
16 GS067691 Rubber Mounting .................................. 2
17 GS085067 Filter Assembly - Bent .......................... 1
CA816800
