Schaerer 7300 - Page 147

SECTION VI
PARTS LIST

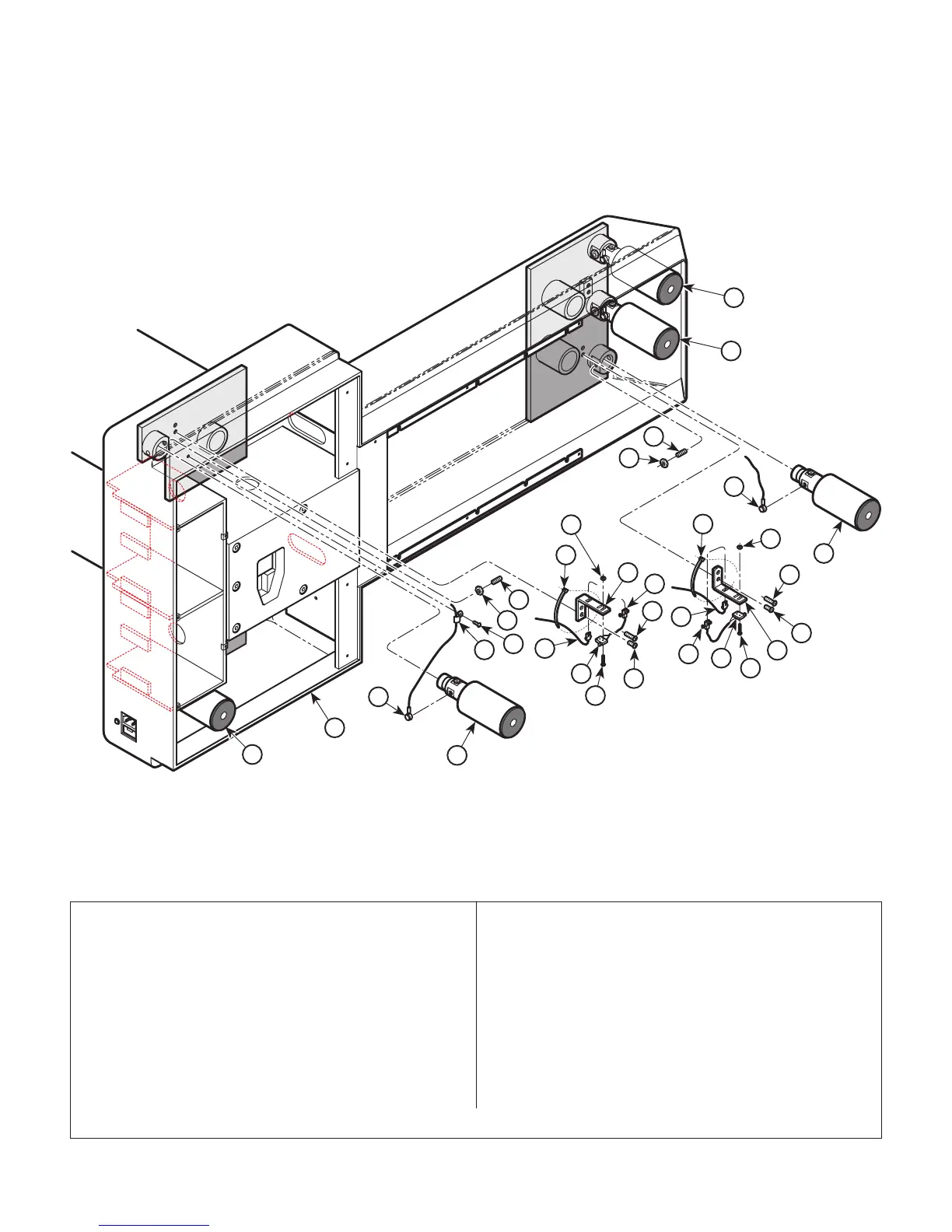

Floor Lock Components
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
1 GS085118 Main Floor Lock Cylinder (Refer to "Floor
Lock Cylinder Components" Elsewhere)3
2 GS085117 Outrigger Floor Lock Cylinder (Refer to
"Outrigger Cylinder Components"
Elsewhere) ........................................... 2
3 GS1230026 Set Screw ............................................. 5
4 GS1018014 Nut ....................................................... 5
5 GS085061 Main Switch Bracket............................. 1
6 GS1999010 Screw ................................................... 2
7 GS1999010 Screw ................................................... 2
8 GS084971 Cable Tie .............................................. 2
9 GS085400 Microswitch (Includes Item 10) ............ 2
10 • • Plug .................................................... 2
11 GS085410 Cable (Includes Plug) ........................... 1
12 GS1042006 Screw ................................................... 4
13 GS1018005 Nut ....................................................... 4
14 Base (Refer to "Base Cover
Components" Elsewhere) ................. Ref
15 Hose Assembly (Refer to "Base
Hydraulic Plumbing" Elsewhere) ....... Ref
16 Cable Clip ............................................. 2
17 GS1042040 Screw ................................................... 2
18 GS085061 Secondary Switch Bracket ................... 1
19 GS085409 Cable (Includes Plug) ..............................
Page 6-31Printed in U.S.A.
HA544501
