SECTION VI
PARTS LIST

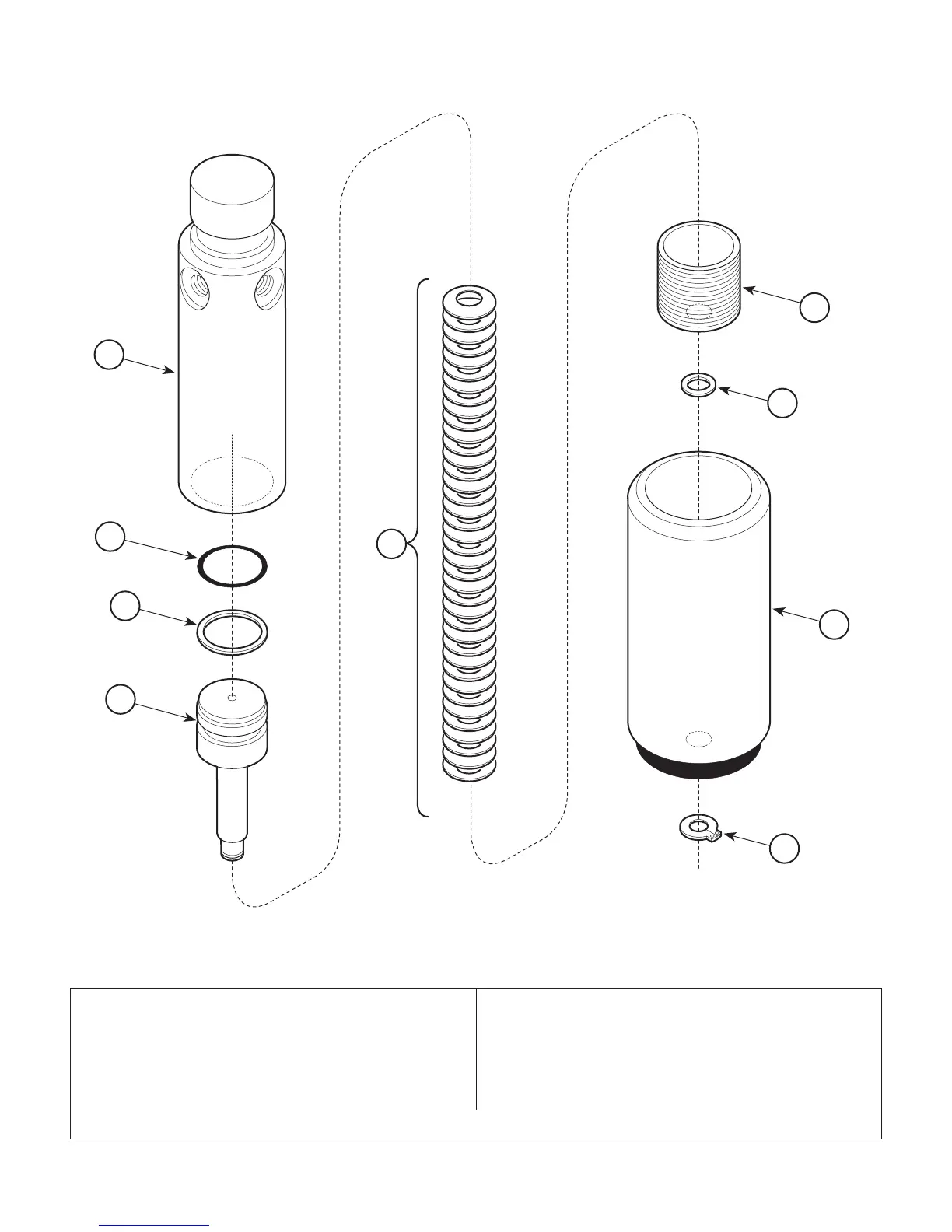

Main Floor Lock Cylinder
Components
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
GS085118 Floor Lock Cylinder Components
(Includes items 1 thru 9) ...................... 3
1 • GS081740 • Cylinder .............................................. 1
2 • 014-0176-37 • O-Ring ................................................ 1
3 • GS064609 • Backup Ring ....................................... 1
4 • GS085072 • Piston ................................................. 1
5 • GS1417007 • Cup Spring ........................................ 38
6 • GS081743 • Socket Plug ........................................ 1
7 • GS1060014 • Flat Washer ........................................ 1
8 • GS081741 • Guide Sleeve...................................... 1
9 • 042-0056-10 • Retaining Ring.................................... 1
Page 6-32Printed in U.S.A.
1
2
3
4
5
6
7
8
9
CA740002
© Schaerer Mayfield USA, Inc. 2004
