Schaerer 7300 - Page 149

SECTION VI
PARTS LIST

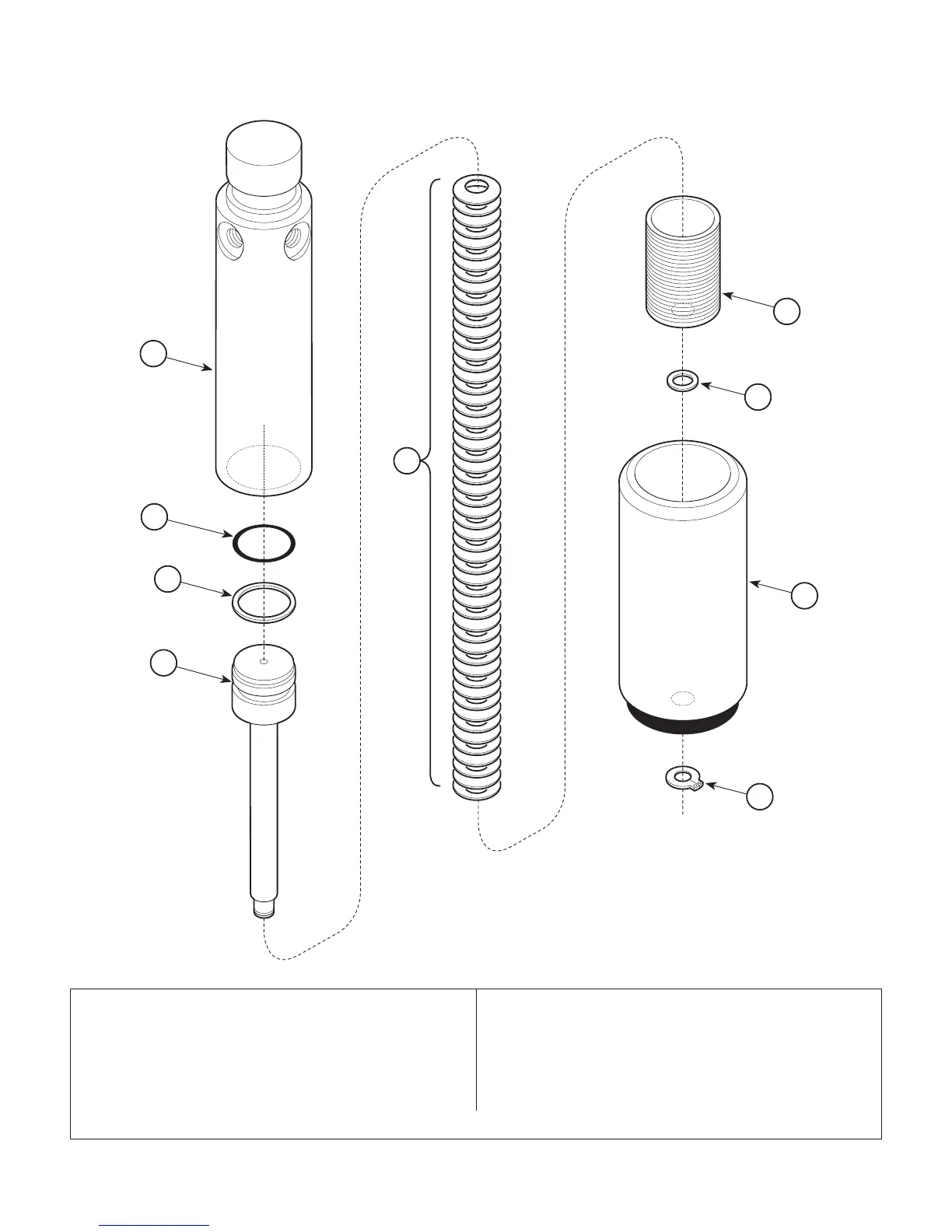

Outrigger Floor Lock Cylinder
Components
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
GS085117 Outrigger Cylinder Components
(Includes items 1 thru 9) ...................... 3
1 • GS085218 • Cylinder .............................................. 1
2 • 014-0176-37 • O-Ring ................................................ 1
3 • GS064609 • Backup Ring ....................................... 1
4 • GS085216 • Piston ................................................. 1
5 • GS1417007 • Cup Spring ........................................ 54
6 • GS085217 • Socket Plug ........................................ 1
7 • GS1060014 • Flat Washer ........................................ 1
8 • GS081741 • Guide Sleeve...................................... 1
9 • 042-0056-10 • Retaining Ring.................................... 1
Page 6-33Printed in U.S.A.
CA772400
1
2
3
4
5
6
7
8
9
© Schaerer Mayfield USA, Inc. 2004
