SECTION VI
PARTS LIST

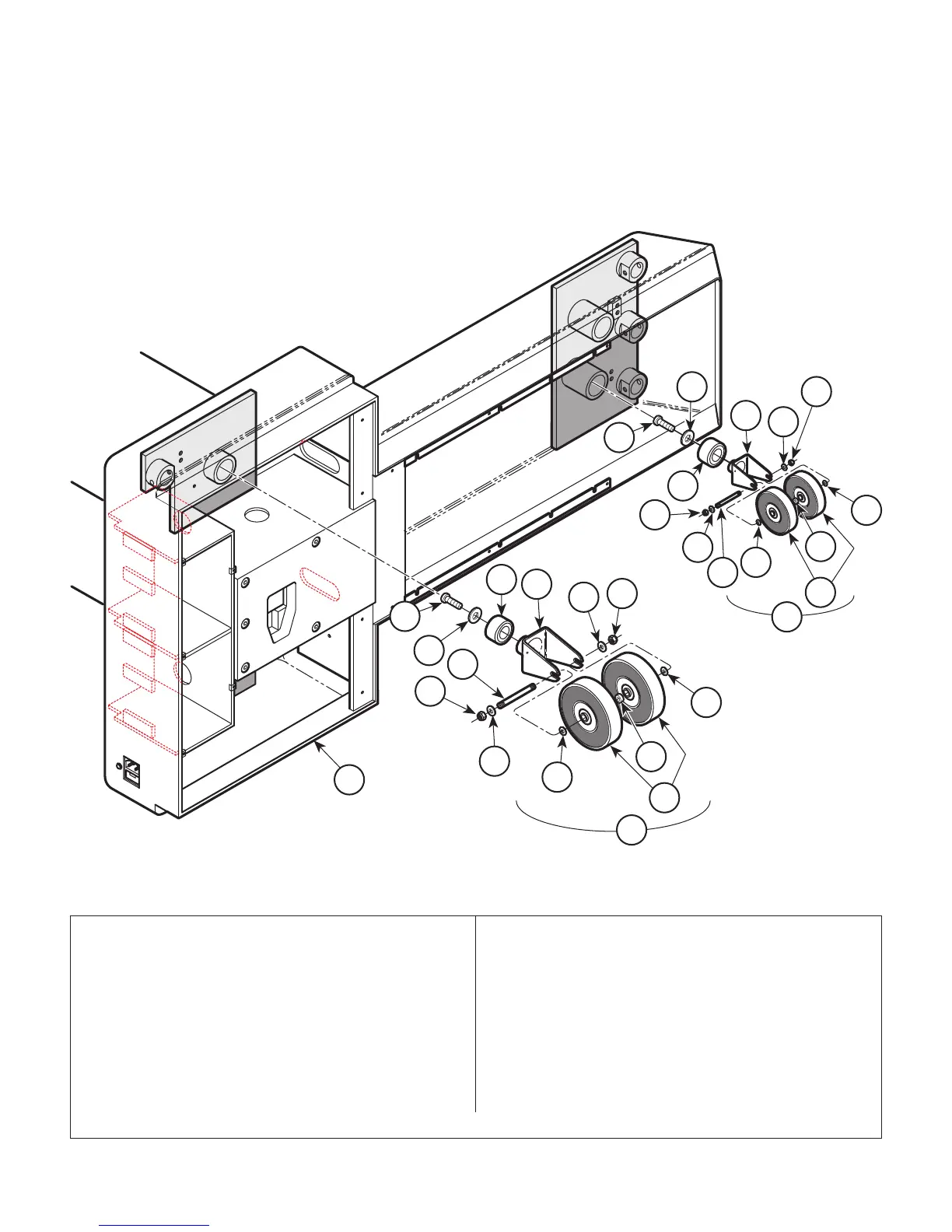

Caster Components
Always Specify Model & Serial Number
Page 6-34Printed in U.S.A.
1
2
3
4
6
7
8
5
5
7
8
9
10
11
12
12
13
14
15
12
14
15
16
17
18
19
19
18
17
Item Part No. Description Qty.Item Part No. Description Qty.
1 Caster Assembly (120mm {Includes
Items 2 thru 8})..................................... 2
2 • GS085047 • Caster Mounting Bracket ................... 1
3 • GS081599 • Tire ..................................................... 2
4 • GS081799 • Spacer ................................................ 1
5 • GS081800 • Spacer ................................................ 2
6 • GS081798 • Pivot Shaft.......................................... 1
7 • GS1223005 • Nut...................................................... 2
8 • GS1060017 • Washer ............................................... 2
9 GS085816 Caster Assembly (80mm) .................... 2
10 • GS085203 • Caster Mounting Bracket ................... 1
11 • GS081596 • Tire ..................................................... 2
12 • GS081800 • Spacer ................................................ 3
13 • GS085202 • Pivot Shaft .......................................... 1
14 • GS1223005 • Nut ...................................................... 2
15 • GS1060017 • Washer ............................................... 2
16 Base (Refer to "Base Cover
Components" Elsewhere) ................. Ref
17 GS1999009 Screw ................................................... 4
18 GS1392005 Washer ................................................. 4
19 GS081846 Bearing ................................................. 4
HA544601
