Schaerer 7300 - Page 151

SECTION VI
PARTS LIST
Power Driver Board
Components
Always Specify Model & Serial Number
Page 6-35Printed in U.S.A.

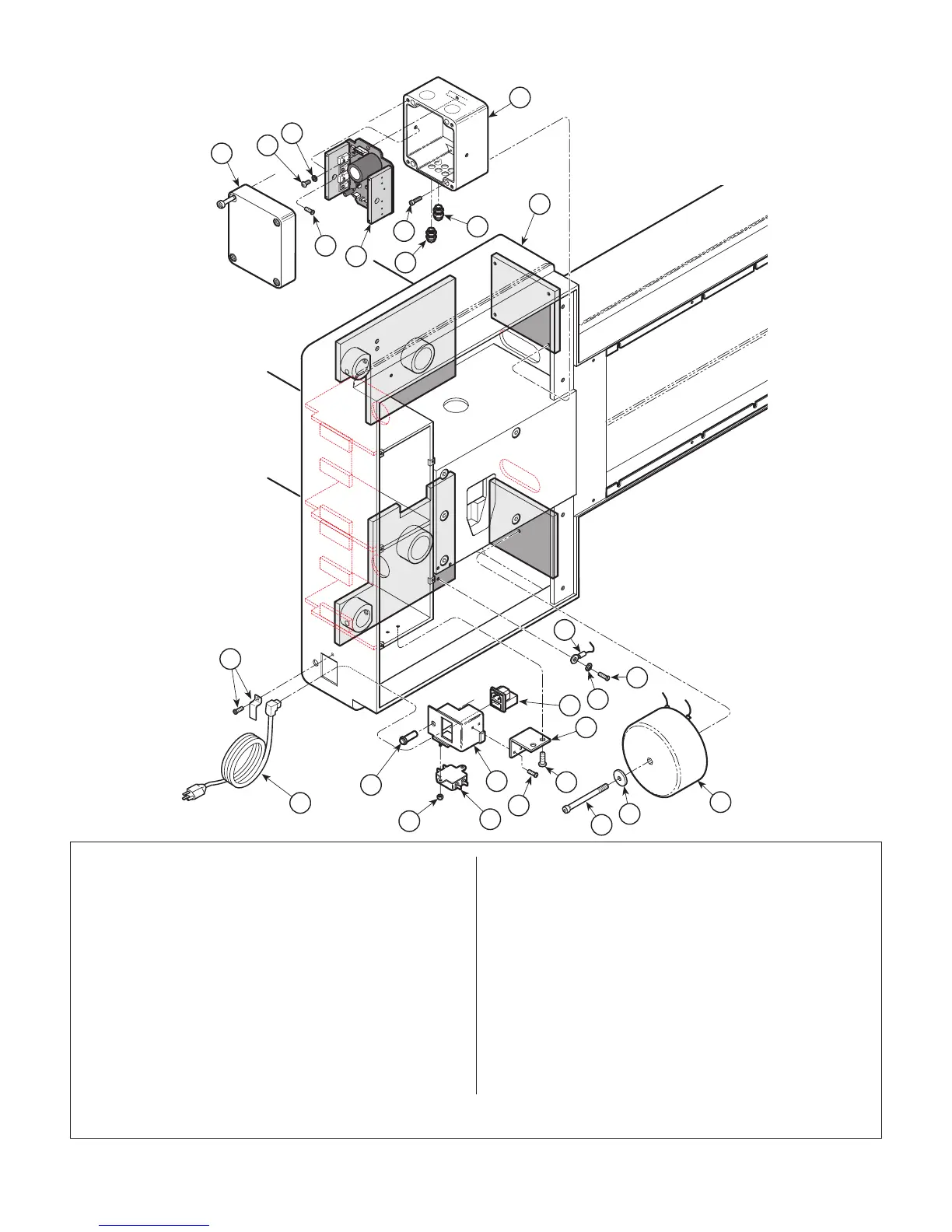

Item Part No. Description Qty.Item Part No. Description Qty.
1 GS084806 Electrical Box & Cover (Incl. 2, 5 & 6).. 1
2 • • Electrical Box .................................. Ref
3 GS084802 Charging / Power Driver Board ............ 1
4 GS1999005 Screw ................................................... 4
5 • • Washer ............................................... 2
6 • • Screw ................................................. 2
7 GS1999011 Screw ................................................... 2
8 GS084811 Electrical Fitting (One Cable) ............... 2
9 GS084809 Electrical Fitting (Multi Cable) .............. 4
10 GS085200 Base (Refer to "Cover Components"
Elsewhere) ........................................ Ref
11 GS084803 Transformer.......................................... 1
12 GS1396001 Washer ................................................. 1
13 GS1001060 Screw ................................................... 1
14 015-1070-00 Power Supply Assembly (Includes
Items 14, 16, 17, 18 & 19).................... 1
14 GS085205 Plug Bracket ......................................... 1
15 GS085212 "L" Bracket ........................................... 1
16 GS084882 Receptacle ........................................... 1
• 015-0346-03 • Fuse (Not Shown) .............................. 2
• GS084883 • Fuse Holder (Not Shown) .................. 1
17 GS082604 Neon Lamp ........................................... 1
18 GS084899 RFI Filter ............................................. 1
19 GS1220002 Nut ....................................................... 2
20 GS1999001 Screw ................................................... 2
21 GS1999009 Screw ................................................... 2
22 GS1042071 Screw ................................................... 2
23 GS1073008 Lockwasher .......................................... 2
24 GS084887 Ground Loop (Refer to "Wiring
Diagram" Elsewhere) ........................ Ref
25 GS084961 Power Cord .......................................... 1
26 502-0167-00 Cord Retainer Kit (Includes Screw)....... 1
HA544800
1
2
3
4
6
7
8
9
10
5
11
12
13
14
20
18
19
17
15
16
21
22
23
24
25
26
