SECTION VI
PARTS LIST
Page 6-104

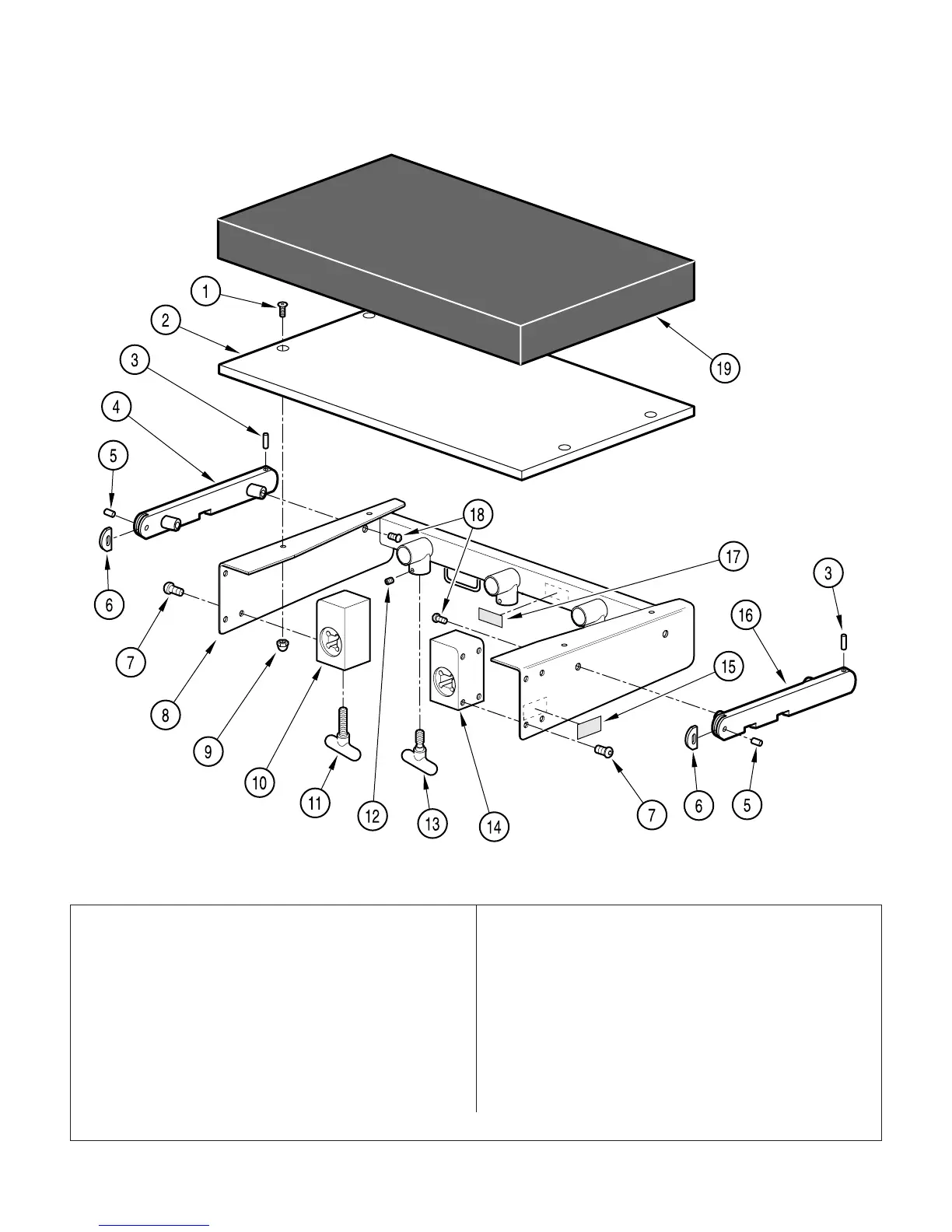

Shoulder Arthroscopic
Lumbar Support Assembly
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
529-0751-00 Shoulder Arthroscopic Lumbar Support
Assembly (Includes Items 1 thru 18) ... 1
1 • 040-0312-35 • Screw ................................................. 4
2 • 553-0517-00 • Lumbar Support Board ....................... 1
3 • 042-0009-04 • Groove Pin ......................................... 2
4 • 530-0831-01 • Siderail Weldment, Left...................... 1
5 • 042-0001-26 • Roll Pin ............................................... 2
6 • 050-2317-00 • Siderail End Stop ............................... 2
7 • 040-0375-68 • Screw
(Apply Loctite #042-0024-00)............... 8
8 • 530-1139-00 • Lumbar Support Weldment ................ 1
9 • 041-0312-04 • Acorn Nut ........................................... 4
10 • 551-0769-00 • Left Mounting Block ........................... 1
11 • 520-0055-04 • Handle ................................................ 2
12 • 040-0008-47 • Set Screw
(Apply Loctite #042-0024-02)............... 3
13 • 520-0055-03 • Handle ................................................ 3
14 • 551-0770-00 • Right Mounting Block ......................... 1
15 • 561-0385-00 • Accessory Handle Label .................... 2
16 • 530-0831-00 • Siderail Weldment, Right ................... 1
17 • 561-0389-00 • TGH Serial Number Tag .................... 1
18 • 040-0312-22 • Screw ................................................. 4
19 528-0154-00 Lumbar Support Cushion ..................... 1
CA820100
