SECTION VI
PARTS LIST
Page 6-105 Printed in U.S.A.

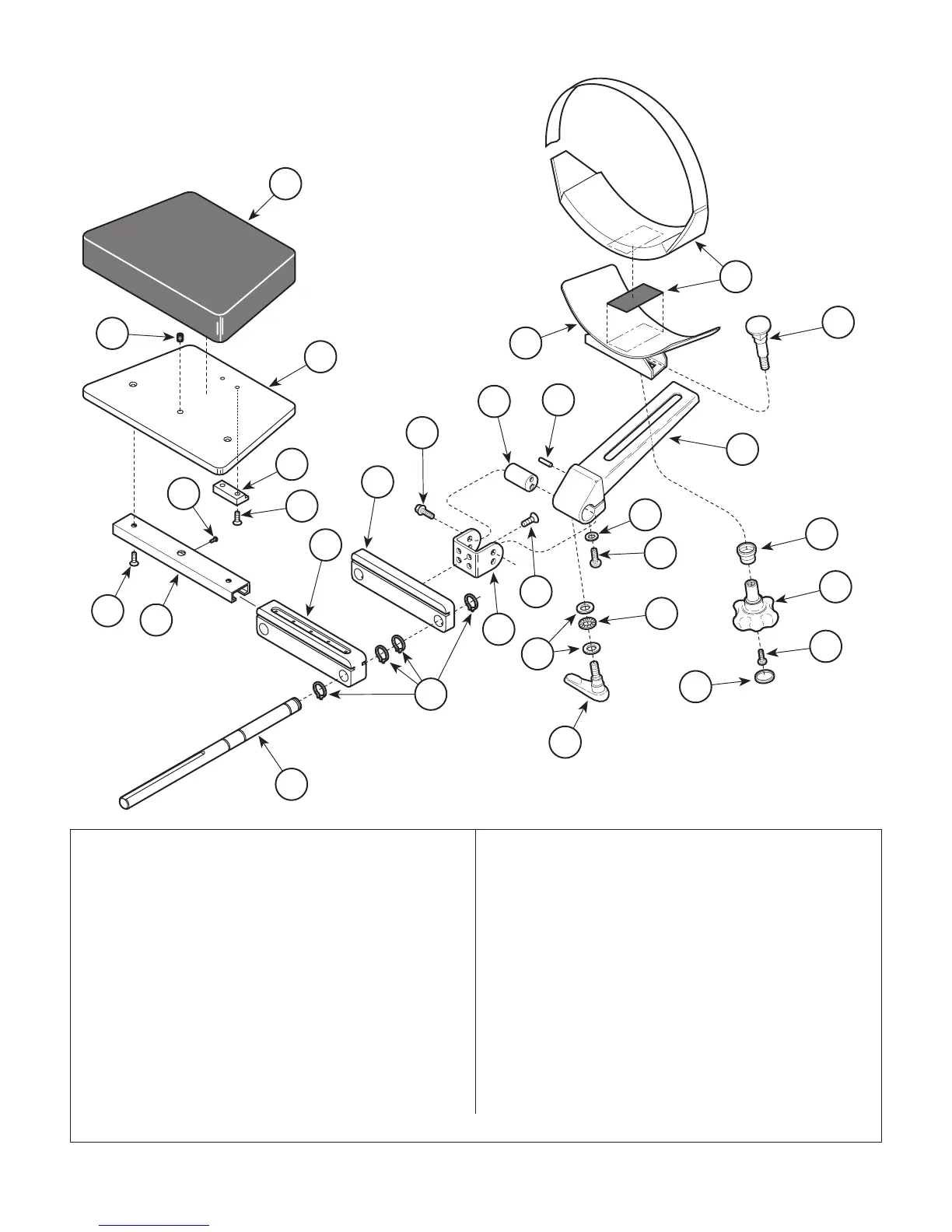

Shoulder Arth. Head Rest
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
529-0690-00 Shoulder Arthroscopic Head Rest
Assembly (Includes Items 1 thru 30) ..... 1
1 • 552-0782-00 • Insertion Tube ..................................... 2
2 • 553-0361-00 • Slide .................................................... 1
3 • 551-0580-00 • Guide Bar ............................................ 1
4 • 042-0056-07 • Retaining Ring ..................................... 8
5 • 552-0783-00 • C-Channel ........................................... 1
6 • 553-0362-00 • Guide Block ........................................ 1
7 • 040-0250-118 • Screw ................................................. 2
8 • 040-0250-120 • Screw .................................................. 2
9 • 040-0010-74 • Screw ................................................. 1
10 • 553-0298-00 • Upper Block Board .............................. 1
11 • 516-0350-00 • Spring Plunger ..................................... 1
12 • 528-0068-00 • Upper Back Cushion (Incl. Velcro) ...... 1
• • 053-0105-03 • • Velcro ............................................... 1
13 • 550-1028-00 • Clevis.................................................. 1
14 • 040-0250-88 • Screw (Apply Loctite #042-0025-00) ... 1
CA798200
15 • 040-0312-61 • Screw ................................................. 4
16 • 057-0048-00 • Pivot Bar ............................................. 1
17 • 016-0126-06 • Handle ................................................ 1
18 • 505-701691 • Thrust Bearing .................................... 1
19 • 505-701692 • Steel Race .......................................... 2
20 • 505-702330 • Screw (Apply Loctite #042-0025-00) ... 1
21 • 525-0063-00 • Belleville Spring Washer ...................... 1
22 • 550-0811-00 • Lock Nameplate .................................. 1
23 • 040-0312-49 • Screw (Apply Loctite #042-0025-00) ... 1
24 • 516-0349-00 • Handle ................................................ 1
25 • 557-0885-00 • Spacer ................................................ 1
26 • 530-1065-00 • Slide / Clamp Weldment ....................... 1
27 • 557-0884-00 • Bolt ..................................................... 1
28 • 530-1064-00 • Headrest Weldment ............................ 1
29 • 528-0133-00 • Upper Back Cushion (Incl. Velcro) ...... 1
• • 053-0131-11 • • Velcro ............................................... 1
30 • 042-0009-10 • Groove Pin .......................................... 1
1
2
3
5
6
7
8
9
10
11
12
4
21
20
19
18
15
13
14
16
26
28
24
23
22
27
25
30
29
17
