SECTION IV
MAINTENANCE / SERVICE
Page 4-24Printed in U.S.A.

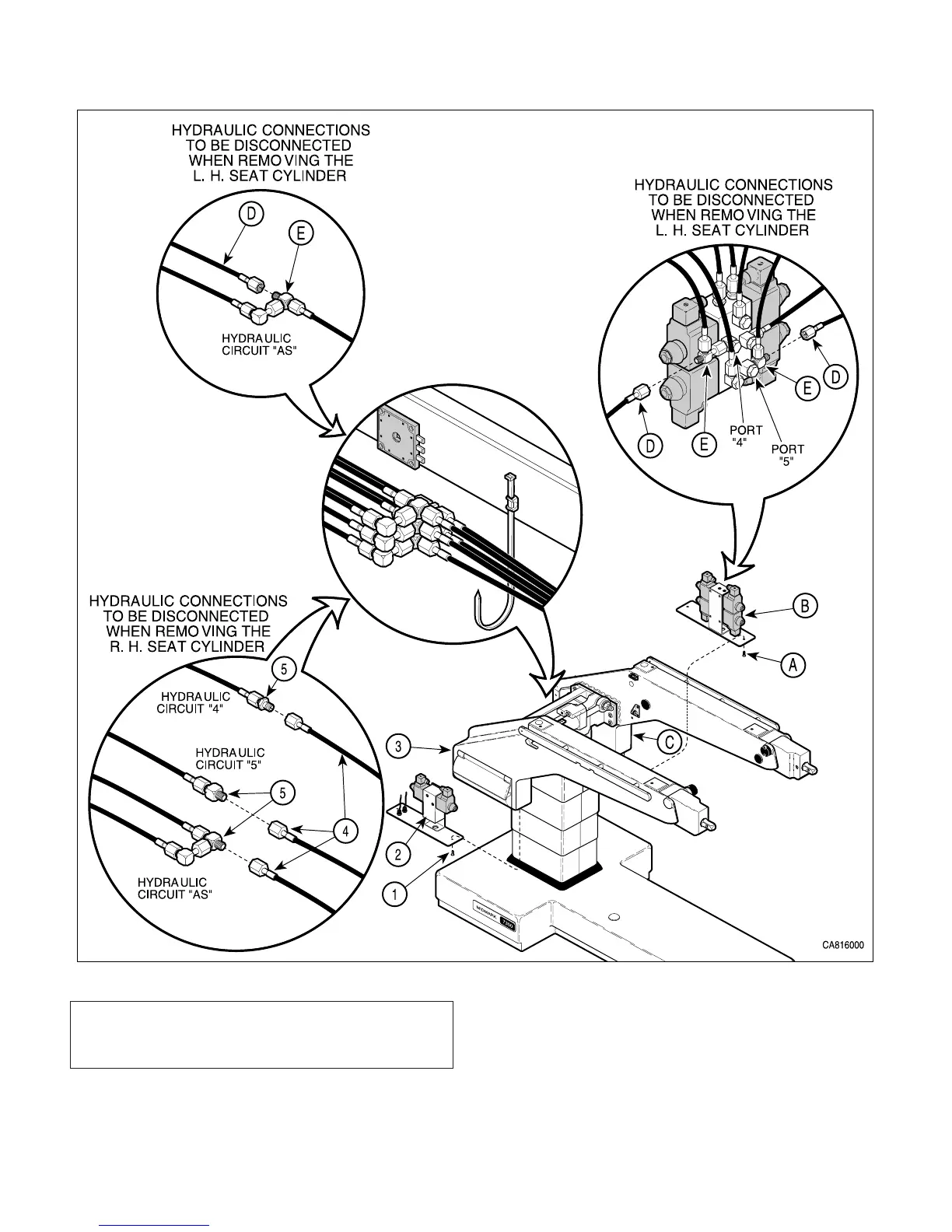

Figure 4-25. Hoses Disconnection / Connection
NOTE
Assure threaded hole in pivot pin(s) can be accessed
through hole in side weldment when installing.
(6) Align base of seat cylinder (8, Figure 4-24) with
side weldment (2) and secure with pivot pin (7).
(7) Install hole plug (6) in side weldment (2).
(8) Remove screwdriver and lower seat spar
weldment (5) down.
