SCOTT Scotty 5000 - Introduction

1 Introduction and Safety
1--3
F--9999--8 Build 8 Issue 1
1.1 Introduction

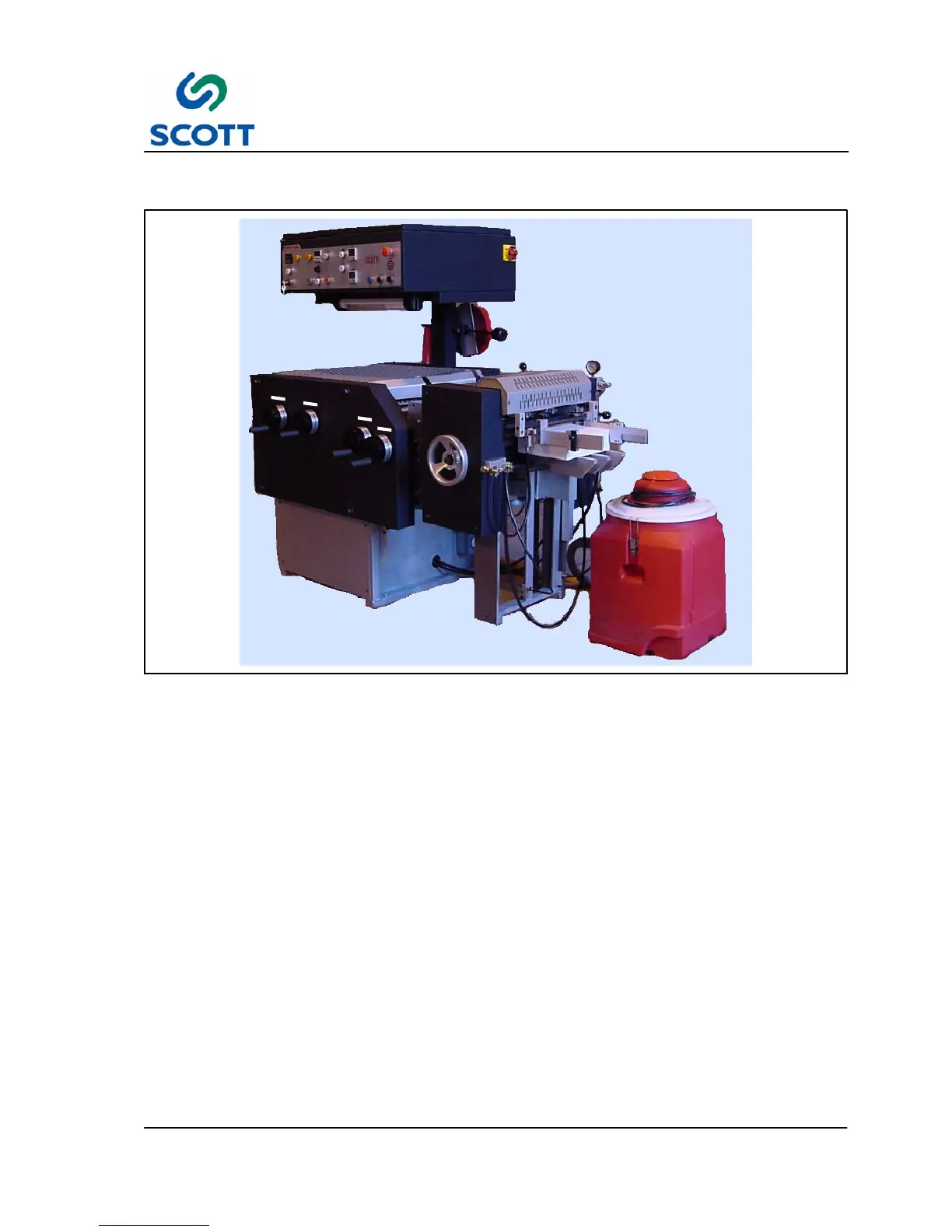

Fig. 1-1. Scotty 5000t
The Scotty 5000t uses a vacuum feeder for accuracy with many stocks, a platen mylar applicator which
only heats the tab extension, tab cutting knives, and efficient receiving stacker for hands--off operation.
Tab sizes range from 1/2 inch to 5 inches (12.7 mm to 127 mm) by simply rotating the Tab Size handwheel.
The extra long tool steel knives quickly and easily cut a one inch (25.4 mm) tab in the first position on a 14
inch (355.6 mm) long sheet. As the tab widens, or the tab position moves toward the center of the sheet, the
sheet size capability increases accordingly.
