SCOTT Scotty 5000 - Machine Lubrication

4 Maintenance
4--3
F--9999--8 Build 8 Issue 1
4.1 Maintenance
4.1.1 Machine Lubrication
CHAIN
REDUCER

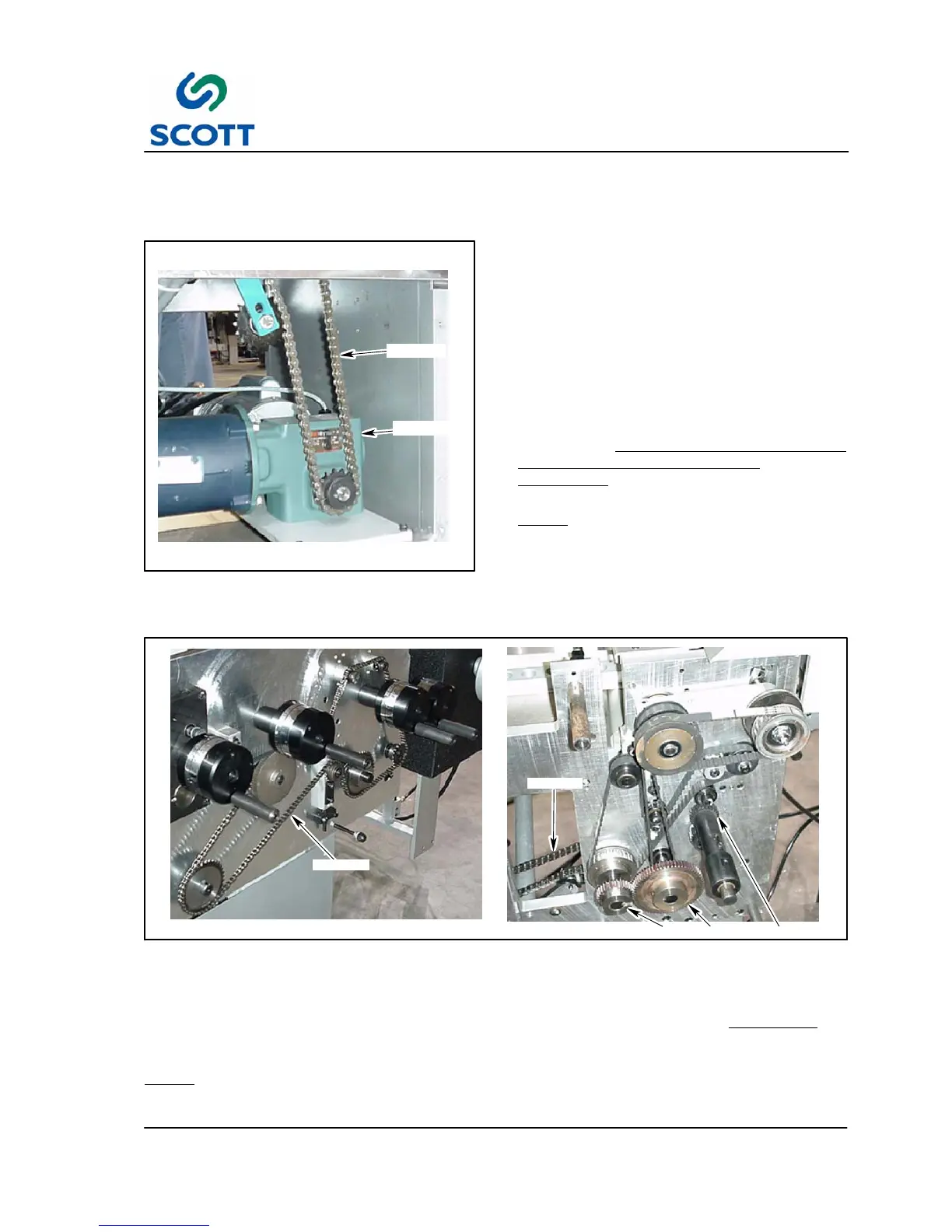

Fig. 4-1. Main Drive Gear
4.1.1.1 Main Drive
The Dodge Tigear reducer incorporates the unique
Relialube system which eliminates the lengthy
preparation normally required to put a reducer into
service. The Dodge Tigear reducer is properly filled
at the factory with sufficient lubricant for all
mounting positions.
The lubricant is Mobil SHC--634, a synthesized
hydrocarbon formulated for extremely long life. Do
not add or remove oil at installation or change oil
after break--in. Change oil only when
performing
maintenance that requires
gearbox
disassembly
.
Note ! If oil must be replaced, use only Mobil
SHC- 634 or Ultrachem Chemlube 140.
Do not confuse Mobil SHC- 634 with
Mobilgear 634. Mobilgear 634 is an EP
type gear oil NOT suitable for use in
the Relialube system.
CHAIN
CHAIN
PILE FEEDER GEARS
Fig. 4-2. Drive Chains
4.1.1.2 Chain Lubrication
Use chain lubrication CRC 03050 or Superior Graphite 35201G. Apply Lubricant to chain with machine set
to 2 or 3 on the speed adjustment control. Lubricant should be applied before chain is dry, once a month
or
about every 200 operating hours. Also apply lithium grease to Pile Feed gears.
Note ! Use CRC 03050 or Superior Graphite 35201G for Chain Lubrication.
Use White Lithium Grease for Pile Feed Gear Lubrication.
