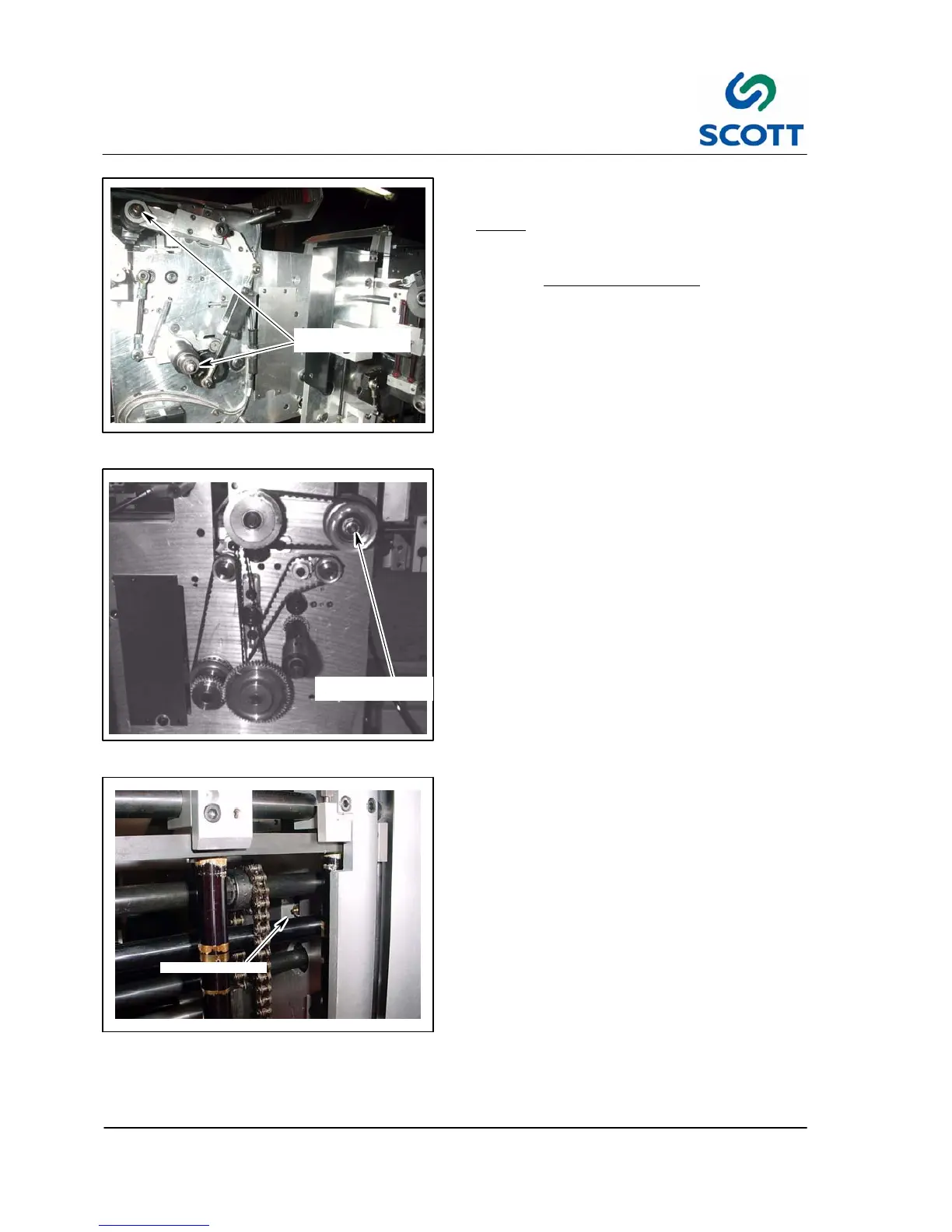

GREASE FITTINGS
(2 BACK SIDE)
Fig. 4-3. Grease Fittings on Vacuum Bar
4.1.1.3 Feeder Area Hand Fittings
Note ! Use White Lithium Grease for paper
feeder lubrication.
There are four hand grease fittings
in the paper
feeder area.
All fittings should be greased every 200 operating
hours or once a month. One shot of grease is all
that is necessary.
Two fittings are located on the ends of the vacuum
bar. To lubricate, remove the access covers.
GREASE FITTING
(1 FRONT)
Fig. 4-4. Grease Fitting -- Pile Lift Shaft
One hand grease fitting is located on the Pile Lift
Shaft.
GREASE FITTING
Fig. 4-5. Grease Fitting -- Inside Pile Feeder
One hand grease fitting is located inside the pile
feeder.
