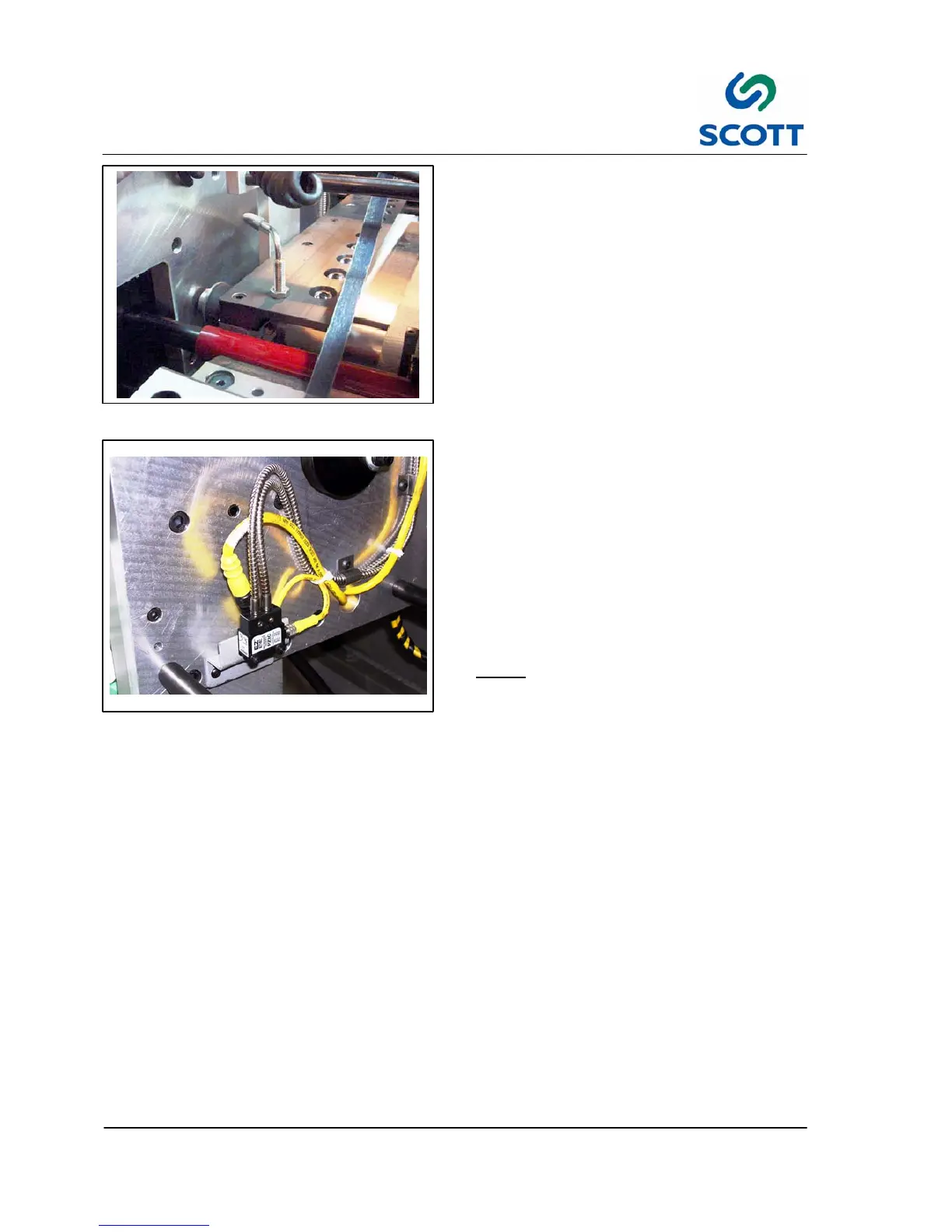

Fig. 4-41. Tab Cutter Fiber Optic Sensor
4. Tab Cutter
Fig. 4-42. Fiber Optic Amplifier
4.3.2 Fiber Optic Adjustment
The fiber optic amplifier needs to be setup for
proper sensor alignment before being put into
operation. This is acomplished by running the
“AutoSet” routine.
Due to the variety of different paper stocks, it may
require slight excess gain (sensitivity) adjustment.
If the sensitivity is set too strong, it will read
through some paper stocks. If it is set too weak, it
will not read the paper stock at all.
Note ! Do not attempt Fiber Optic
Adjustments unless you are familiar
with performing this type of
adjustment.
