4 Maintenance
4--17
F--9999--8 Build 8 Issue 1
HANDWHEEL
READING MARK
INCH RULER READS
0”--8”
HANDWHEEL
SCALE READS 0--9

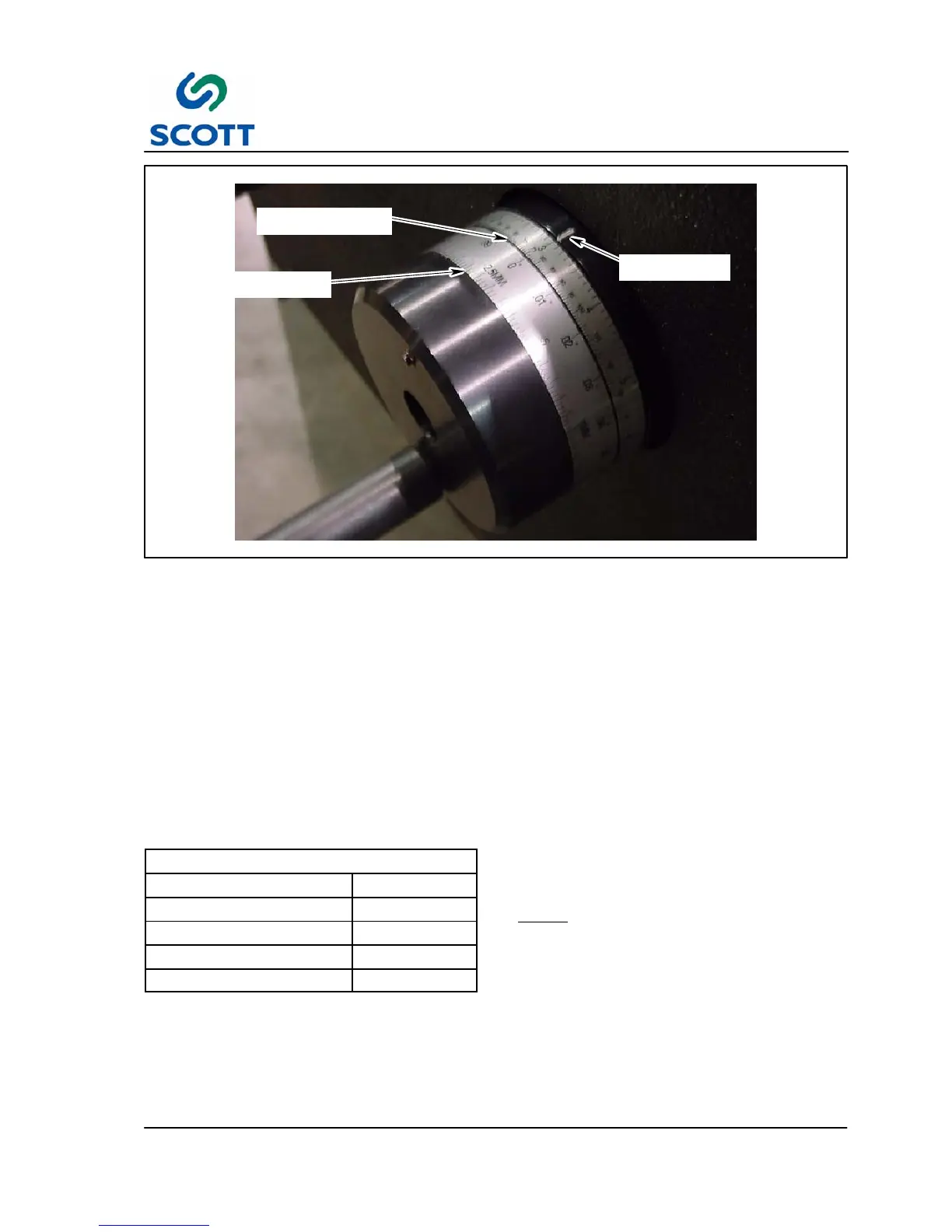

Fig. 4 -19. Handwheel Configuration
4.2.2 Handwheel Settings
The recommended settings for the plastic size handwheels and tab size handwheel Is 3.00 inches and 4.00
inches (76.2mm & 101.6mm) respectively. (See Fig. 4-18. for handwheel locations) These settings are to be
used no matter what size paper is being used for calibration procedures.
Set the Plastic Position handwheel and Tab Position handwheel to the center line of the paper size (i.e. on
eleven inch paper handwheels are set to 5.50 inches (139.7mm)). Both handwheels are set the same.
(Fig. 4-19. )
All handwheels display two decimal places, tenths and hundredths.
The handwheel calibration procedures in this section are based on the following parameters:
11 Inch (279.4mm) Sheet Size
Handwheel Settings
Plastic Position Handwheel 5.50 (139.7mm)
Plastic Size Handwheel 3.00 (76.2mm)
Tab Position Handwheel 5.50 (139.7mm)
Tab Size Handwheel 4.00 (101.6mm)
Note ! Do not change handwheel settings
after they have been correctly set.
