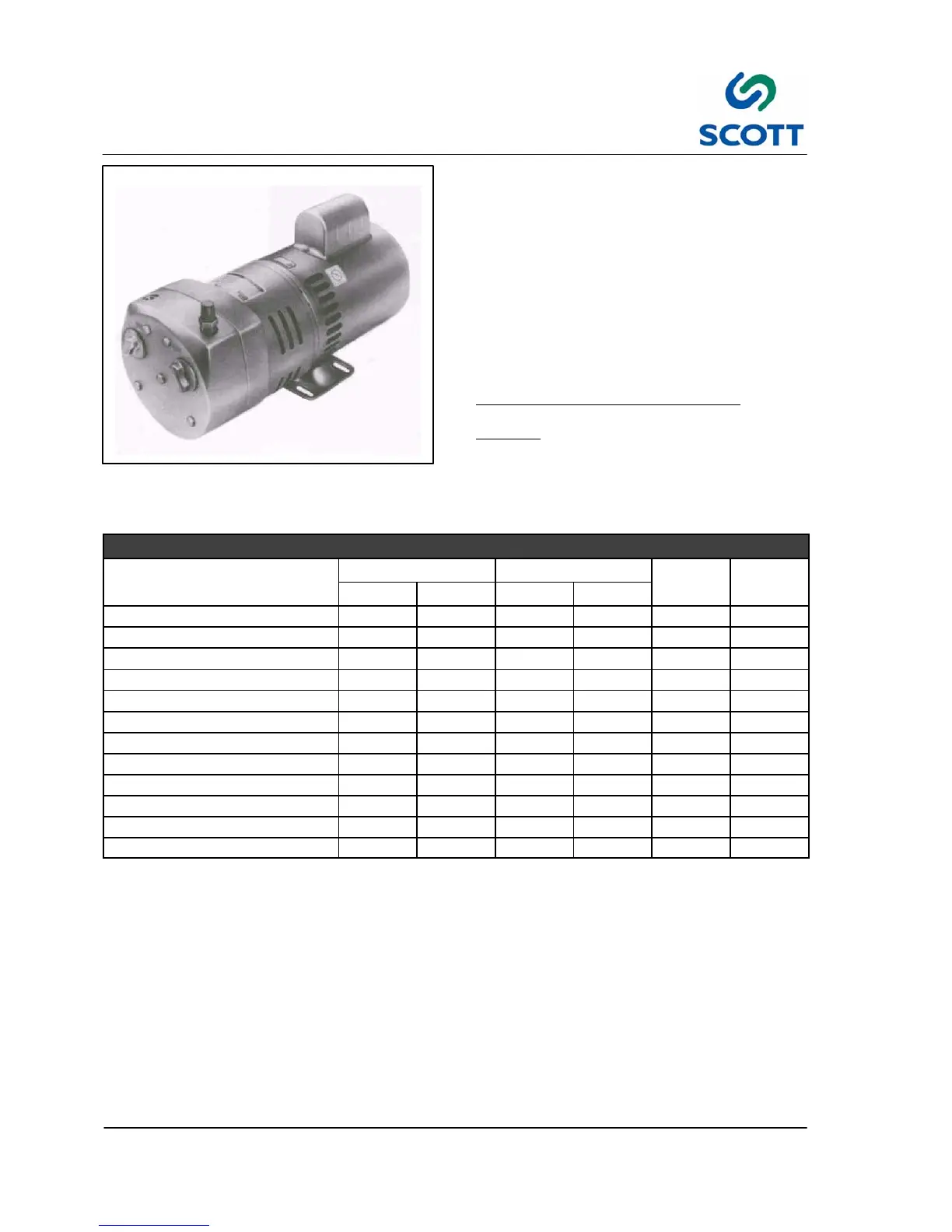

Fig. 4 -7. Gast Vacuum Pump Model
1023--101Q--G608X
4.1.2 Vacuum Pump Maintenance
Regular inspection can prevent unnecessary
damage and repairs. Intake and exhaust filters
require periodic inspection and replacement. Initial
inspection is suggested at 500 hours. After that,
user should determine the frequency. Keeping filter
clean can prevent most problems. Dirty filter
decrease unit performance and service life.
WARNING -- Muffler box may become very hot
during operation. Do not touch these parts until unit
has been turned off and allowed to cool.
Vacuum Pump Service Kit: HW--47110
Includes:
Vanes (4)
Gasket (1)
ORing(2)
Felt (2)
VACUUM PUMP TROUBLESHOOTING G UIDE
REASON FOR PROBLEM LOW HIGH PUMP
O
V
E
R
-
MOTOR
O
V
E
R
-
VACUUM PRESSURE VACUUM PRESSURE
O
V
E
R
-
HEATING
O
V
E
R
-
LOAD
FILTER DIRTY X X AT PUMP X X
MUFFLER DIRTY X AT PUMP X X
VACUUM LINE COLLAPSED X AT PUMP X X
RELIEF VALVE SET TOO HIGH X X X
RELIEF V ALVE SET TOO LOW X X
PLUGGED VACUUM / PRESSURE LINE X X AT PUMP AT PUMP X X
VANES STICKING X X
RUNNING AT TOO HIGH RPM X X X X
VANES WORN (REPLACE) X X
SHAFT SEAL WORN (REPLACE) X X
DUST OR OFFSET POWDER IN PUMP X X X X
MOTOR NOT WIRED CORRECTLY X X X
