3.2.3 Main Operator’s Panel Control Descriptions
The following is a list of each control on the operator’s panel and a description of the functions performed at
each setting.
TAB CUTTER
OFF

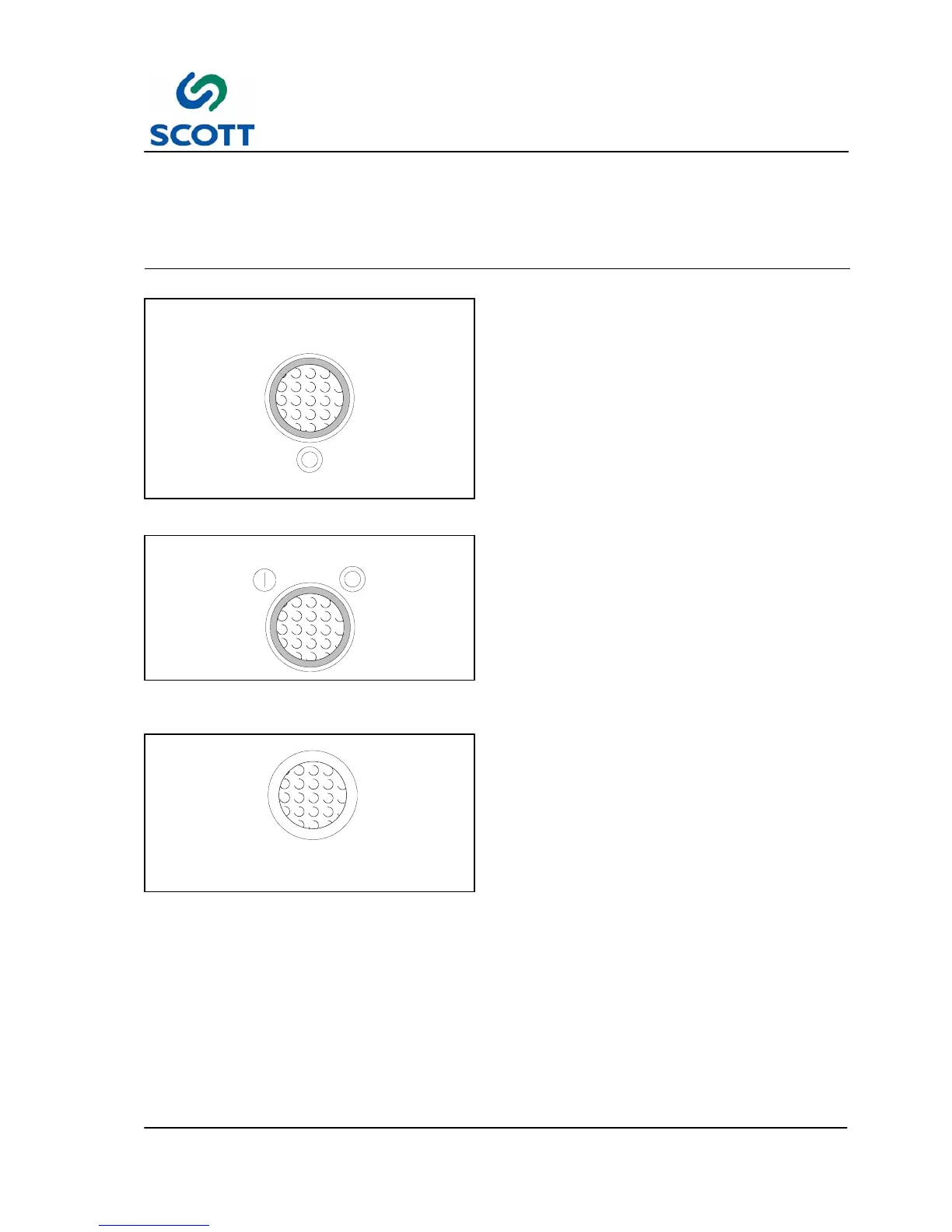

Fig. 3 -3. Tab Cutter Off
3.2.3.1 TAB CUTTER OFF -- Red Illuminated
Pushbutton
The Tab Cutter Off Button located on the left side
of the operator’s box and is used to disable the
cutting knives when running production that
involves laminating tabs only (not tab cutting).
OFF-- When pushed this button disables the tab
cutting knives so that sheets are not cut.
ON -- When pushed, knives are raised into position
so that tabs will be cut.
COUNTER
Fig. 3-4. Counter On/Off -- Illuminated
Pushbutton
3.2.3.2 COUNTER ON / OFF --
White Illuminated Pushbutton
When the counter button is pushed, the button
illuminates indicating that the counter is on.
This will allow the operator to off the counter to run
make overs without losing the current count.
COUNT
REACHED
Fig. 3-5. Count Reached Lamp
3.2.3.3 COUNTER REACHED --
Amber Indicator Lamp
This lamp will illuminate when the machine has
produced the amount predetermined by the
counter. Once the count has been reached, the
paper feed vacuum pump will shut off so that paper
feed will stop. Also, if plastic is being applied to
the paper stock, the plastic chip removal vacuum
will shut off. Both units will resume operation once
the counter has been reset.
