SCOTT Scotty 5000 - Hand Wheel and Tab Set-Up Definitions

3-34
F--9999--8 Issue 1
3.4.1 Hand Wheel and Tab Set-Up Definitions
11”
SHEET LENGTH
1/2”
MARGIN MARGIN
1 2 3
1/2”
TAB BANK
PLASTIC
SIZE
TAB
SIZE

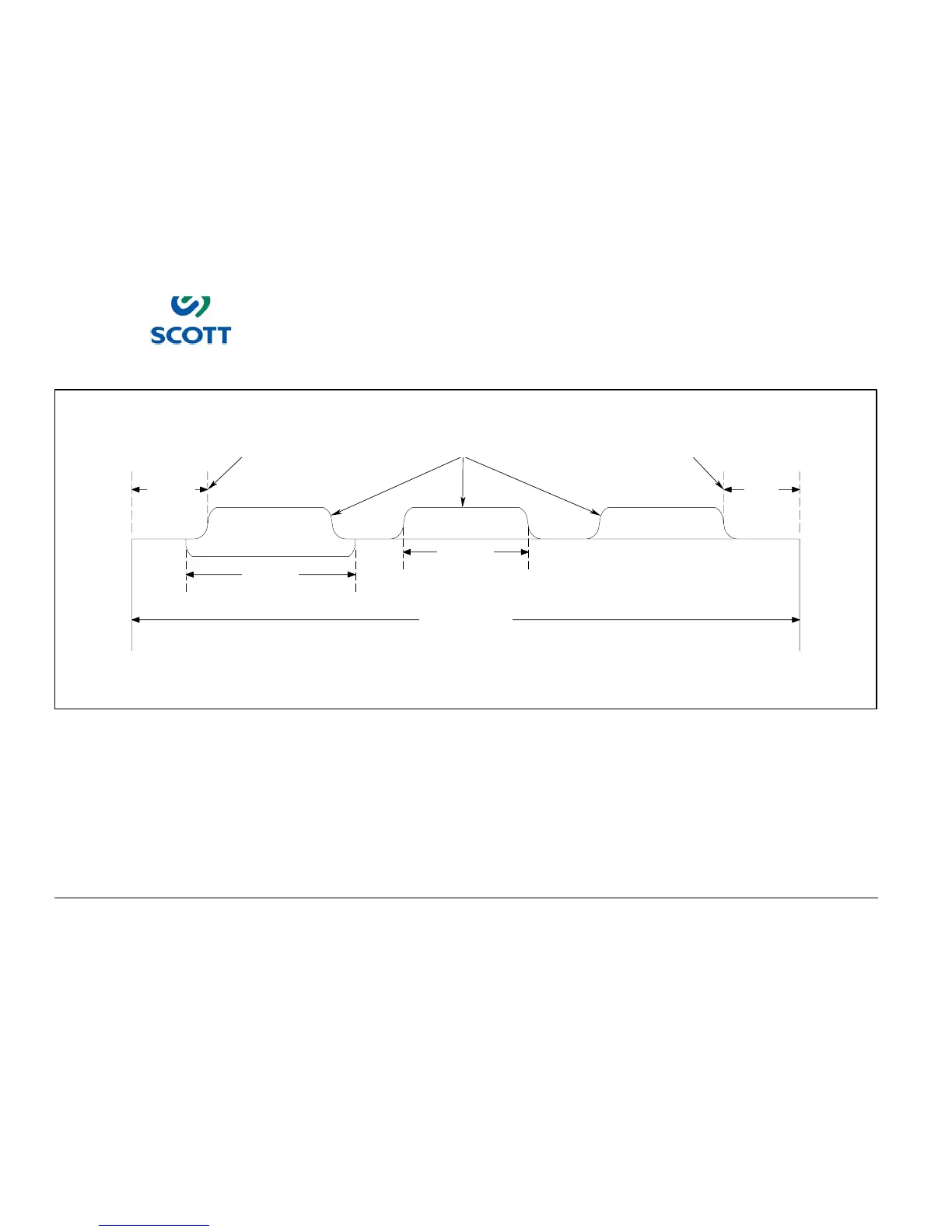

Fig. 3-67. Chart Diagram (Example: English Measurement 3 Tab Bank, 11” Sheet Length, 1/2” Margin)
Use the definitions in the above diagram to determine hand wheel set ups.
Margin: The dimension from the top or bottom edge of the sheet to the outwardmost flat edge of the first or last tab on the page.
The top and bottom margins will be the same dimension.
Sheet Length: The overall length of the sheet of tab stock paper.
Tab Blank: The quantity of tab divisions desired on page.
Plastic Size: Dimension of plastic film applied to tab area prior to cutting.
