4.4 Machine Cleaning
All feed, drive, hold down and tension rollers should be cleaned with a mild detergent soap only.
Note ! The use of any harsh chemicals can damage rollers.
HOLDER BAR ASSEMBLY

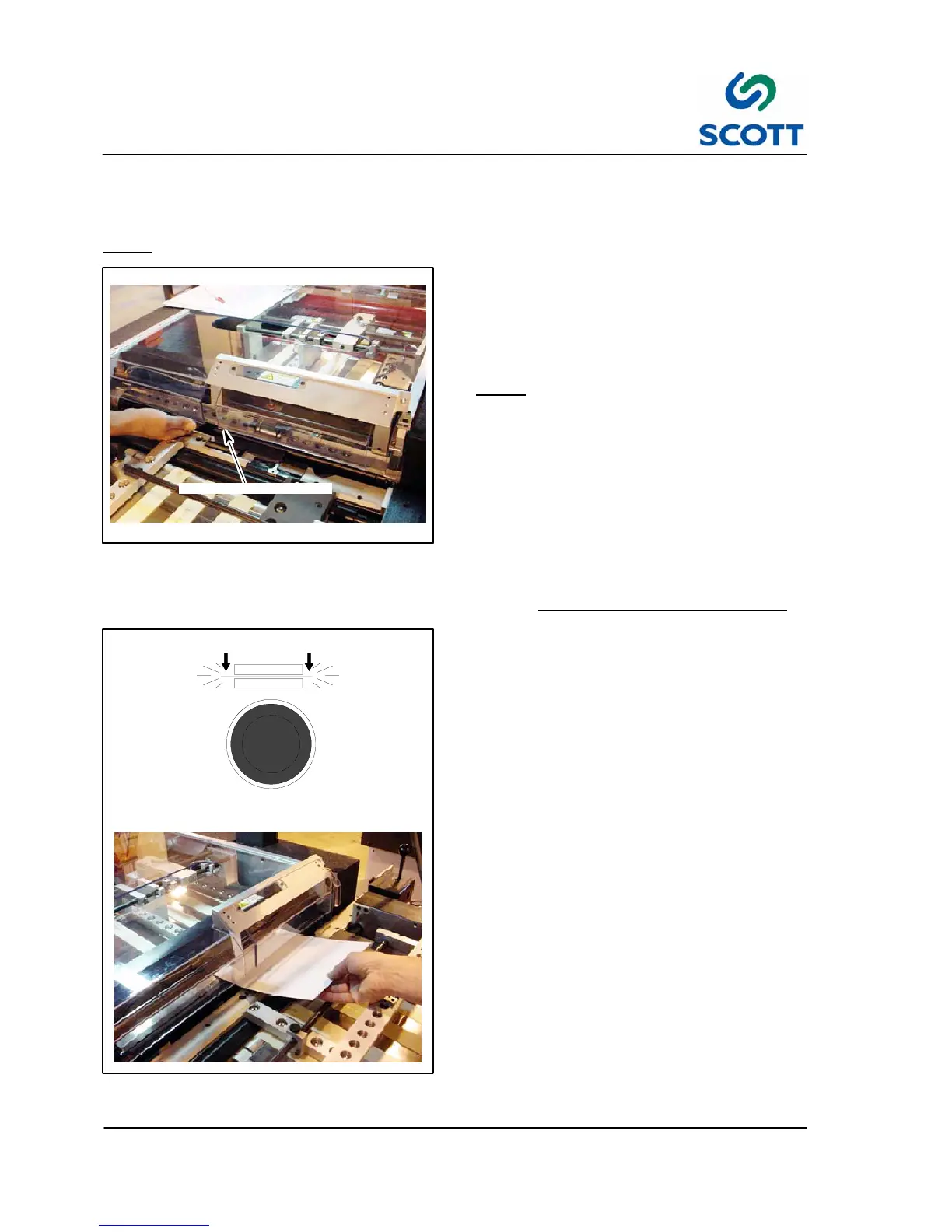

Fig. 4-47. Remove Holder Bar Assembly
4.4.1 Clean Platen Unit
After repetitive cycles of laminating Mylar,
adhesives builds up on the platens and needs to
be cleaned.
Note ! Platens have a precision micro finish.
Do not use metal objects to remove
adhesive or Mylar from the platens
Step: 1. E-- Stop must be off (out).
Step: 2. Turn on main power.
Step: 3. Turn on main air supply.
Step: 4. Heat up platens to minimum of 225 Deg.
Step: 5. Remove Plexiglass cover.
Step: 6. Lift Plastic Window assembly.
Step: 7. Lift up and remove holder bar assembly.
Use extreme caution -- platen is
hot.
PLATEN
CLOSE
Fig. 4-48. Push Platen Close Button Several
Times Until Paper Comes Out Clean
Step: 8. Replace Plexiglass cover.
Step: 9. Reset the machine.
Step: 10.Apply a light oil or baby oil to a scrap
piece of paper or uncoated stock.
Step: 11. Place oil coated paper between upper
and lower platens and press Platen
Close button several times.
To Next Page
