4.1.5.2 Plastic Feed & Cut Operating Arm
The Plastic Feed and Cut operating arm is located on backside of machine just above vacuum pump
assembly.
Timing marks are located on top of rectangular block and frame of machine.
Step: 1. Align mark on rectangular block with mark on frame of machine.
Step: 2. If rectangular block moves out of position, secure with long flat file to left of block and clamp file to
frame of machine. (See Fig. 4-13. )
OPERATING
ARM
TIMING
MARKS
METAL
STRAIGHT
EDGE
CLAMP

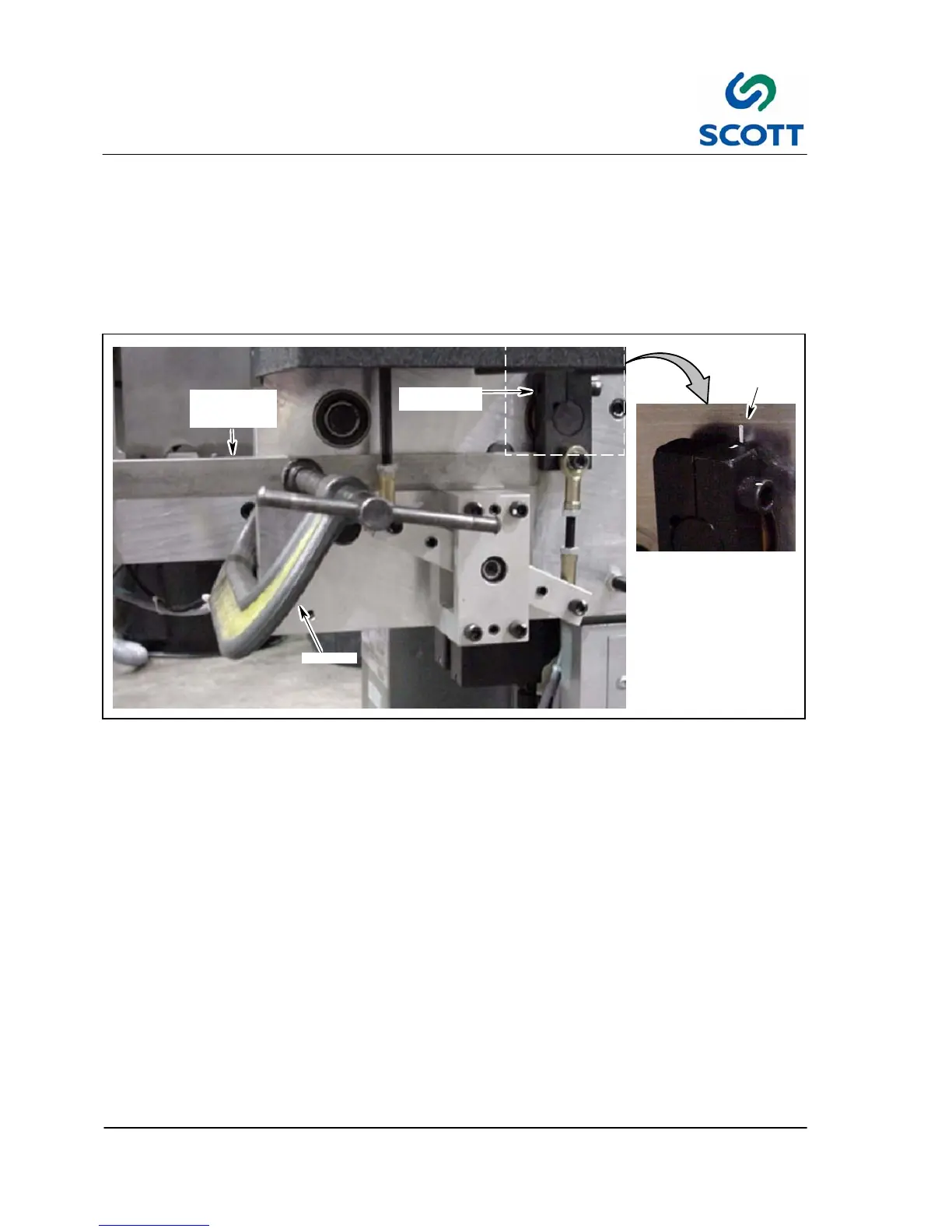

Fig. 4-13. Cut Operation Arm
To Next Page
