2.1.1 Pre -Installation Requirements
The environmental requirements of the Scotty 5000 must be considered well in advance of the actual
installation. Providing a well suited operating environment will help ensure a trouble free installation process.
Consideration should be given to the following items:
● Power, location and rating of outlets
● Floor strength
● Level floor
● Adequate space must be provided around all four sides of the machine to permit normal operation and
maintenance procedures. The figure shows the minimum space required.
12’--0” (3657mm)
2’--4”
3’--0”6’--8”
4’--4”
2’--4” (711mm)
2’--6”
7’--9”
(711mm)
(2032mm)
(914mm)
(762mm)
(2362mm)

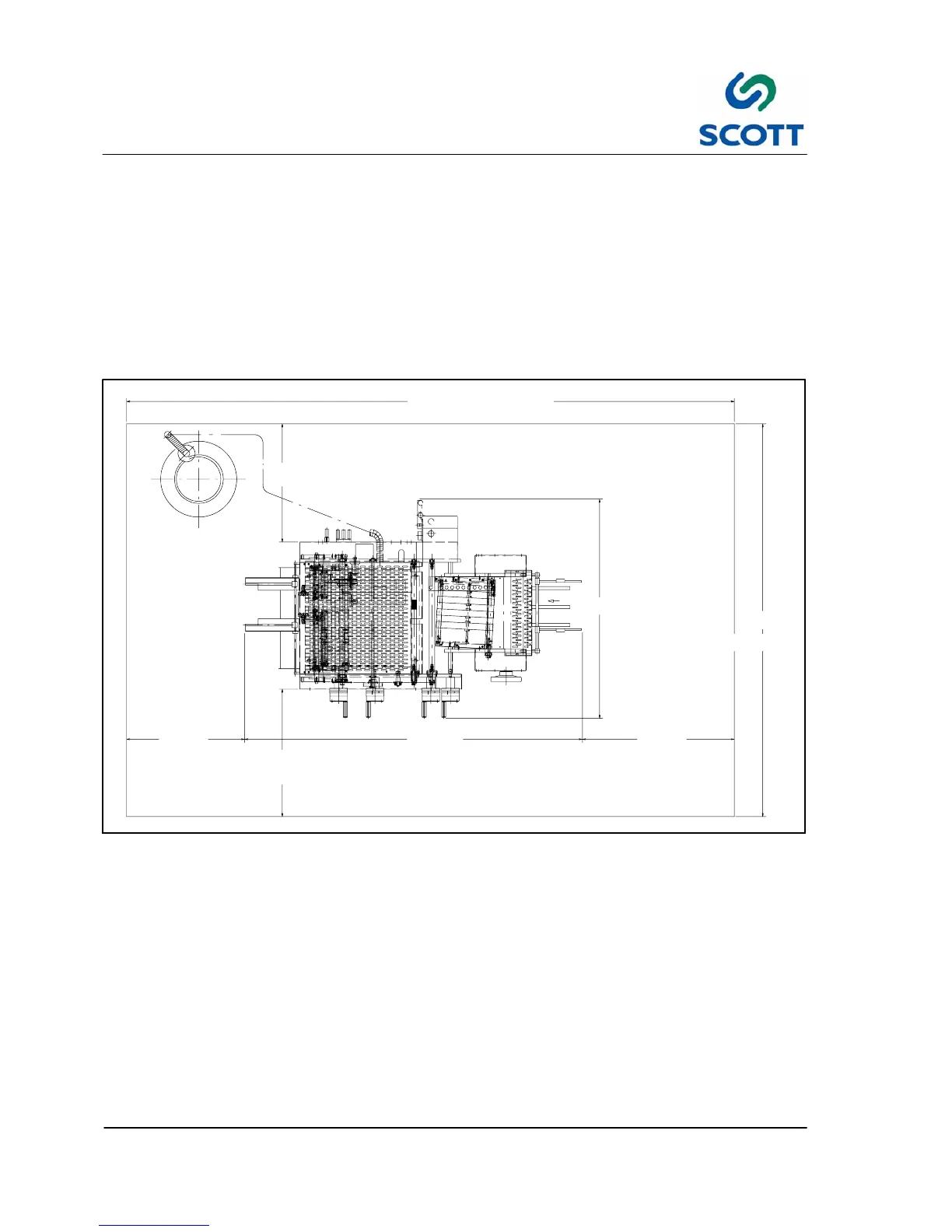

Fig. 2-2. Space Requirements
● Space should be allocated near the feeder for a small table that can be used for jogging stock, small jobs,
samples, etc.
● Provide plenty of space In front of the machine so large jobs can be easily moved in and out with skids or
carts.
