4 Maintenance
4--13
F--9999--8 Build 8 Issue 1
MACHINE
CYCLE
COLLAR
SCREW
TIMING
MARK

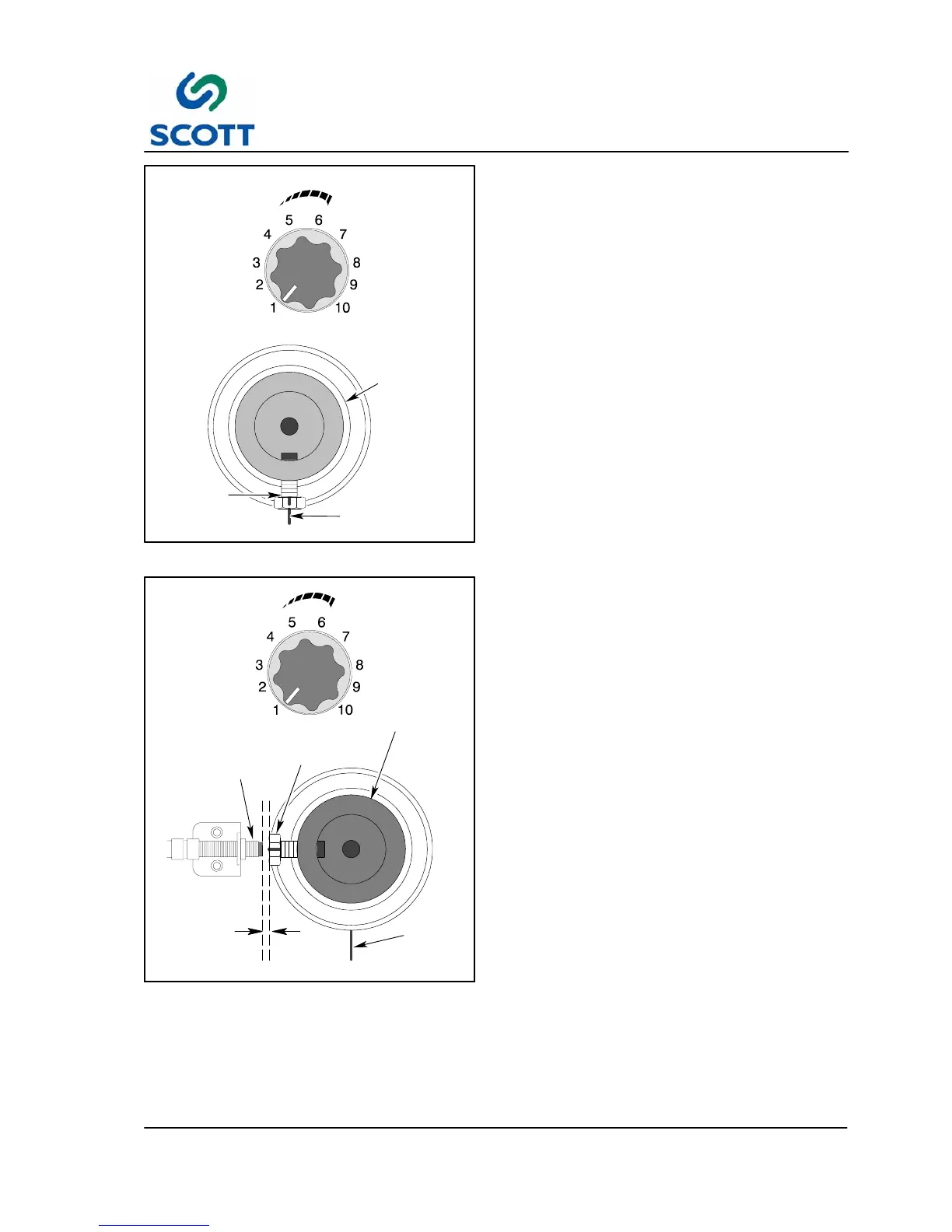

Fig. 4-14. Align Timing Screw with Timing Mark
4.1.5.3 Machine Cycle Timing
Machine Cycle Collar:
Step: 1. Return power to the machine.
Step: 2. Use the Drive Speed control to slowly
index the machine until the timing screw
is aligned with the timing mark and set.
MACHINE
CYCLE
COLLAR
SCREW
TIMING
MARK
1mm
MACHINE
CYCLE
COLLAR
Fig. 4-15. Adjust Proximity Switch to Drive
Screw
Step: 3. Use the Drive Speed control to slowly
index the machine until the screw is
aligned to the Proximity switch.
Step: 4. Adjust the Proximity Switch as close as
possible to the machine cycle collar
screw without touching the screw. The
gap should be no greater than 1mm.
